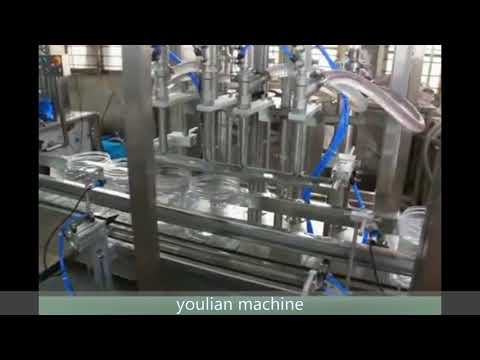

Video will open in a new window
Using the eBay App? Paste link into a browser window:
Description
Automatic Liquid & Paste filling machine is a piston filling machine for filling different viscosity pastes or liquid products. The machine uses cylinders to push the pistons, using high-quality pneumatic components and quantitative filling. Widely used in personal care products, food, oil and other industries.
This machine can be customized with different capacity hoppers, adding heating and stirring equipment, and adding a liquid level controller. This machine is equipped with a counter and the filling volume is accurate and easy to adjust. No bottle and no filling.
During operation, the machine is affected by the following factors:
1. Filling accuracy: compressed air stability, material uniformity and filling speed
2. Filling speed: material viscosity, cylinder stroke, filling nozzle size and conveyor speed.
Feature
1. The fuselage is made of stainless steel, durable;
2. High quality pneumatic components, stable performance;
3. The filling head has a better anti-drip design;
4. Touch screen display and operation, debugging is simple and convenient;
5. The principle of piston quantification, PLC control, filling accuracy is better;
6. The contact part with the material is made of 304/316 stainless steel material, in line with GMP standards;
7. No need to replace parts, easy to debug and can be applied to bottles of different shapes and sizes.
| Model | GT4T-4G |
| Name | Automatic liquid & paste filling machine |
| Filling head | 4 |
| Filling range | 5-100ml 10-280ml 20-500ml 50-1000ml 300-2000ml 500-2800ml 1000-5000ml (Can be customized) |
| Capacity | 0-40 PCS/min |
| Working pressure | 0.4-0.6Mpa |
| Filling accuracy | ±1% |
| Power supply | 1kw |
