Description:

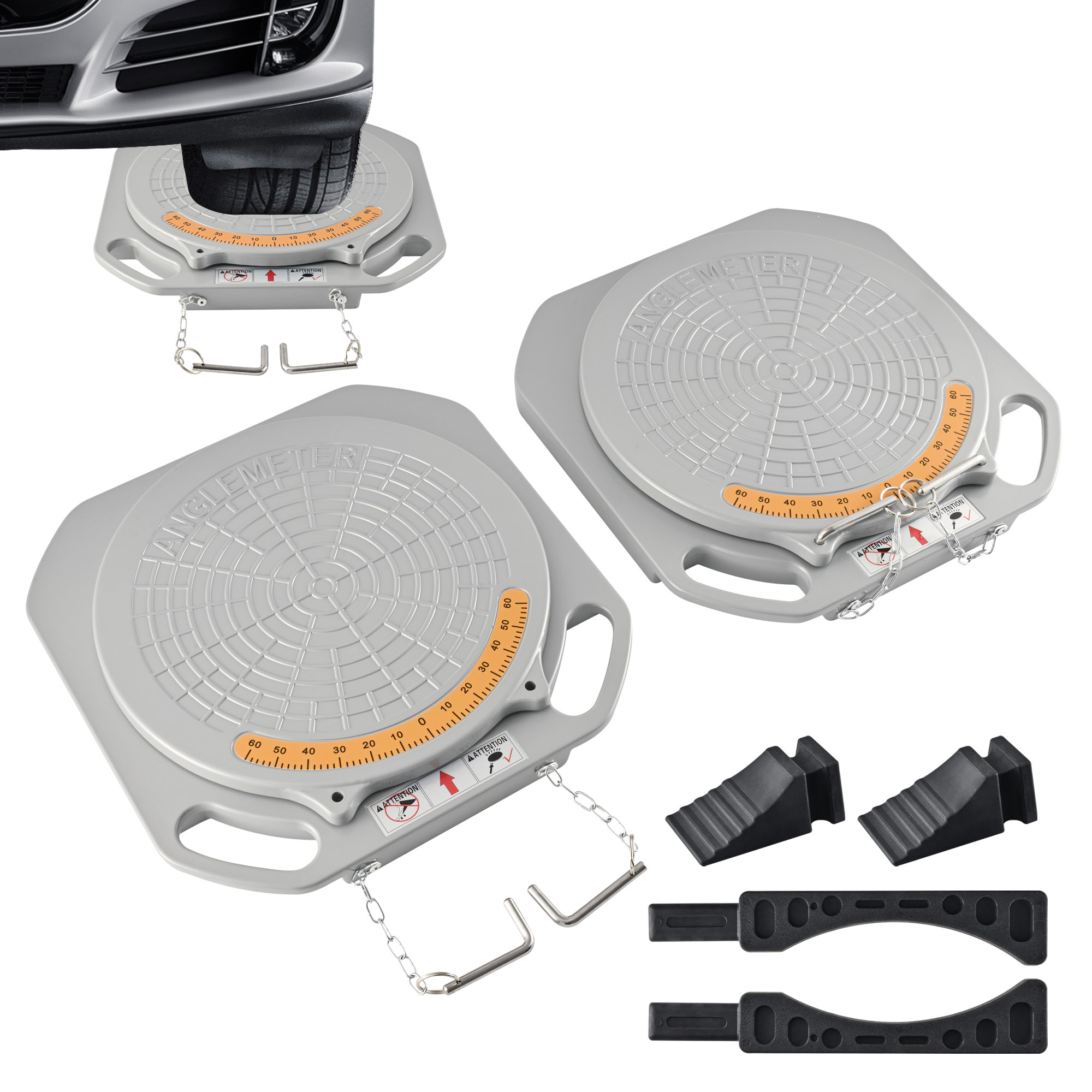

This pair of Wheel Alignment Turntable Plate plays an important role in wheel alignment procedure. 3D wheel alignment cannot work without turn plate on lift. One set has two pieces with two rubber transition blocks for driving on turntables. Our wheel alignment turn plate is made by high quality magnesium alloy with high precision, good strength and light weight.

Advantage:

We upgraded the angle display to a more bright colour to make the reading much easier and clearer.

Features:

1. Processed by super quality aviation magnesium alloy, can load 5T(1100LBS) sedan car

2. Full-floating bead bearing design for 50 degree wheel movement

3. Heavy duty commercial version tool

4. Locking pins hold the turntable securely in place while you position the car on the turntables

5. With an angle meter and pointer on it

6. POM material of bead bearing frame, high toughness and strength

7. Three-ply white nylon beads rotate flexibly with strong bearing force

Notes:

Remember to lock the turntable and put on the rubber transition blocks before driving a car onto the turntable.

We do not offer thrust blocks/wheel chocks.

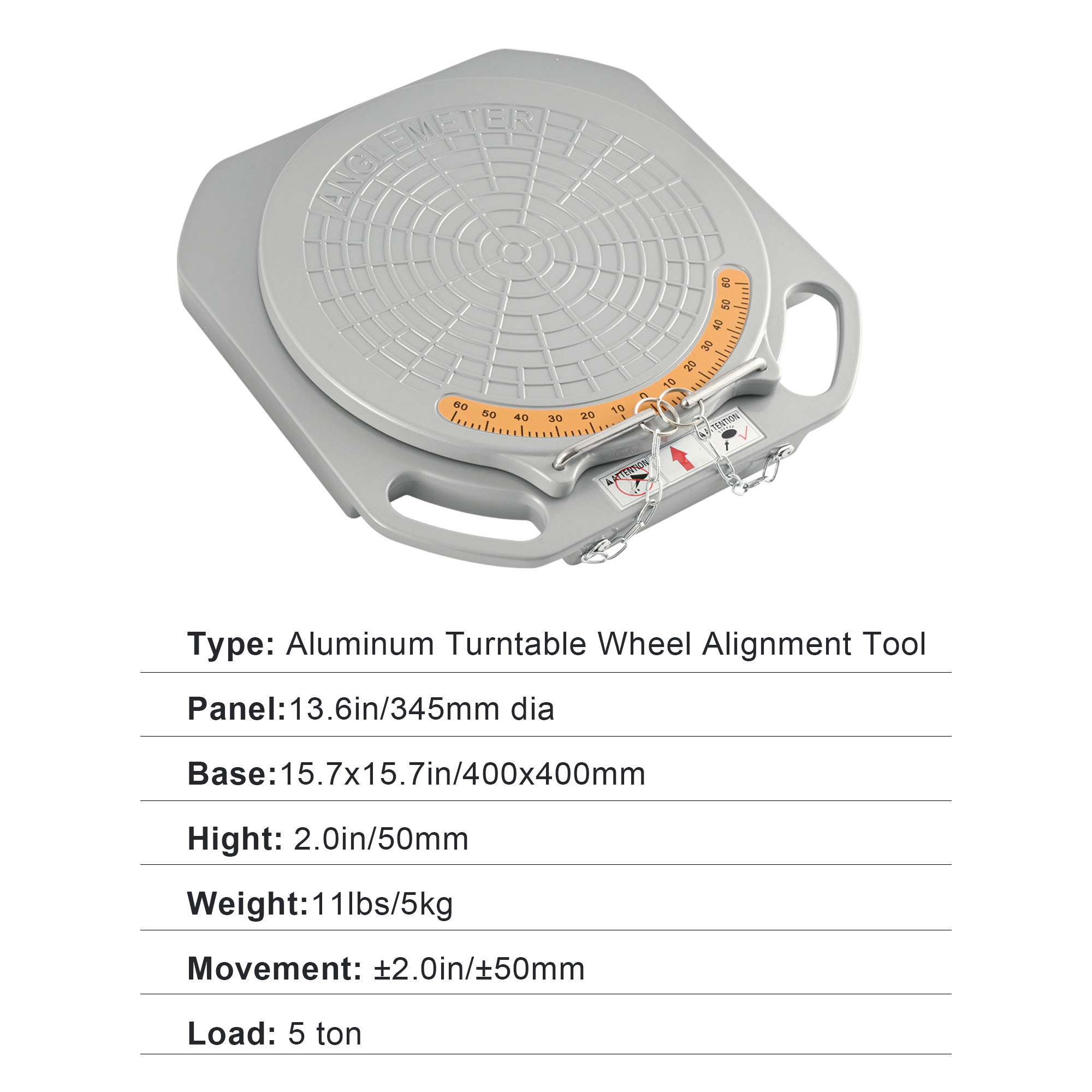

Specifications:

Plate and Platform Material: Magnesium Alloy

Back Cover Material: Iron

Material of Bead Bearing Frame: POM(Paraformaldehyde)

Plate Dia.: 35cm(13.8in)

Plate Height: 5cm(2in)

Platform Dimension: 40x40cm(15.7x15.7in)

Net Weight: 35.4lbs(Per Pair)

Plate Rotate Range: 0-50°

Bearing Rotate: 360°

Sliding Distance: 6cm(2.4in)

Max. Load Capacity: 5T(11023lbs)

Gross Weight: 10.5kg(23lbs)

Package Size: 43x43x14cm(17x17x5.5in)

Package List:

2 x Wheel Alignment Turntable Plate

2 x Rubber Transition Block
