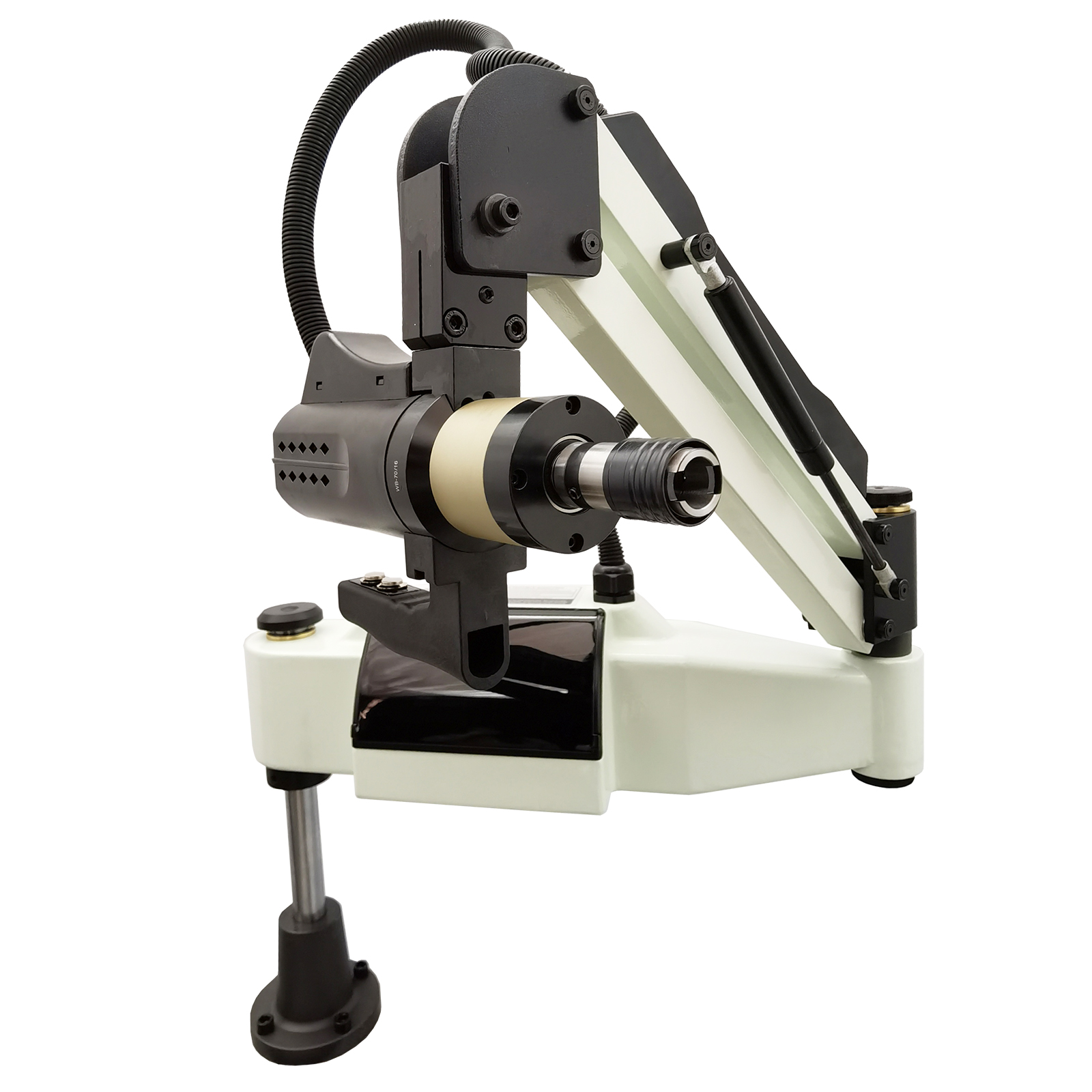

360° Electric Tapping Machine with Touchscreen M3-M20 Thread Range 220V

Slide Slide Slide Slide Slide Slide Slide Slide Slide Slide Slide Slide Slide Slide Slide Slide Slide Slide Slide Slide Slide Slide Slide
$834.72
Speed
1-500RPM
Torque
40N.m
Machine Type
Electric Tapping Machine
Tap Capacity
39.37" (1m)
Color
White
MPN
44-056364DA
Chuck type
GT12
Brand
TECHTONGDA
Voltage
220 V
Collet
M3,M4,M5,M6-8,M10,M12,M14,M16,M18,M20
Country/Region of Manufacture
Unknown
Power
1.6HP (1200W)
Bearing scope of thread
M3-M20
UPC
198462851084
condition
New


M3-M20 Universal 360° Electric Touch Tapping Machine 220V 1200W 1-500RPM Without Workbench

TECHTONGDA®
         ITEM DESCRIPTION
  • New upgrade 1200W High power, high speed 1-500rpm.
  • Stepless speed change, manual, automatic, linkage three modes of work, whatever you choose.
  • Automatic mode can effectively control the depth of tapping, without theoperation button, automatic control by depth controller.
  • Repeated positioning fast, tapping speed, high production efficiency.
  • The preset torque of the machine plus the double protection of the torque chuck can prevent the tap from breaking.
  • The rotating parts are made of graphite copper sleeves and bearings, which are flexible in rotation, more wear-resistant, and have high tapping accuracy.
  • Wide range of processing materials, can process aluminum, copper, A3 steel, 45 steel, cast iron, pig iron, Q235, S136, mold steel, 718H,40Cr, stainless steel and other materials.
  • A limit slider is designed on the support rod, which can flexibly adjust the vertical height of the tapping machine from the horizontal table, and has strong adaptability.

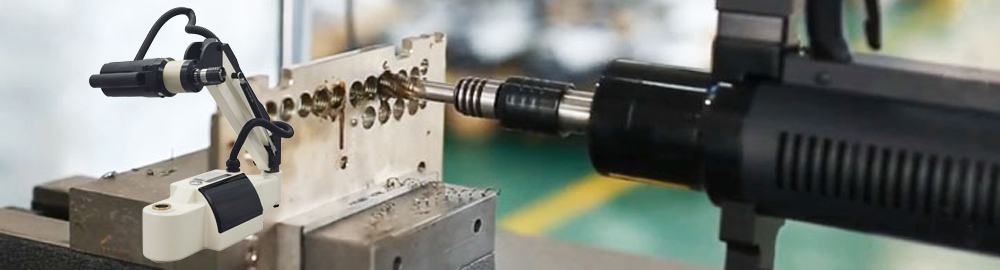

  • By adjusting the screws on both sides, the tapping direction of the machine head can be adjusted, which can realize vertical tapping and horizontal tapping, and can rotote 360° in the vertical plane, with high effciency.
This product is based on servo motor as power electric tapping machine, widely used in all walks of life all kinds of large and small machine and all kinds of materials, parts of molds and wood tap wire processing, the product is well-made, quality first-class, was deeply loved by the masses of customers and praise, are you tapping processing of choice.
ITEM PARAMETER
Bearing scope of thread: M3-M20
Voltage: AC220V
Power: 1.6HP (1200W)
Chuck type: GT12
Working radius: 39.37" (1m)
Speed: 1-500RPM
Torque: 40N.m

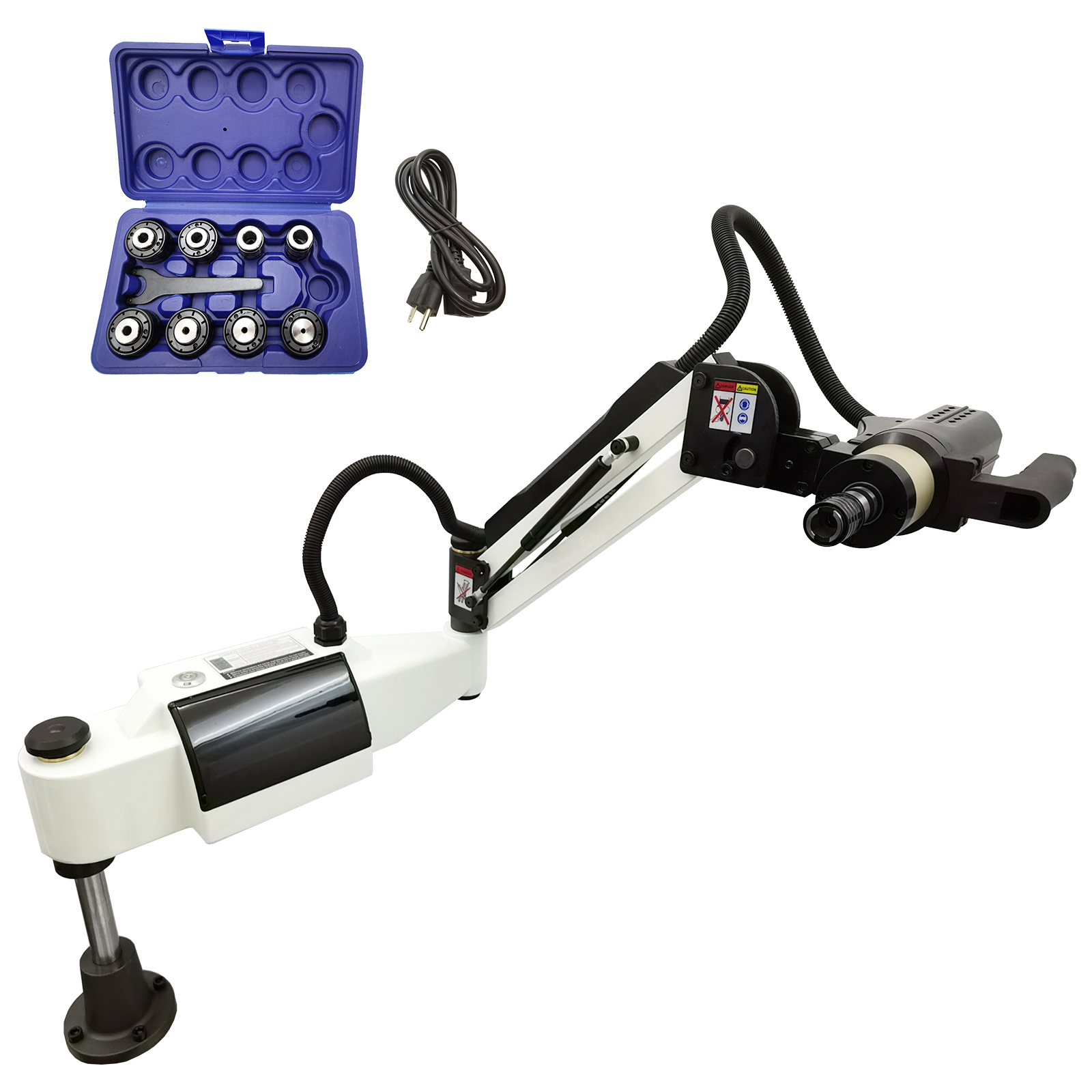

Collet: M3,M4,M5,M6-8,M10,M12,M14,M16,M18,M20
Color: White
Package size: 29"*28"*10" (74CM*71CM*26CM)
Net weight/Gross weight: 56LB(25.3KG) / 75LB(34KG)
This product does not include workbench, if you need workbench, please contact us.

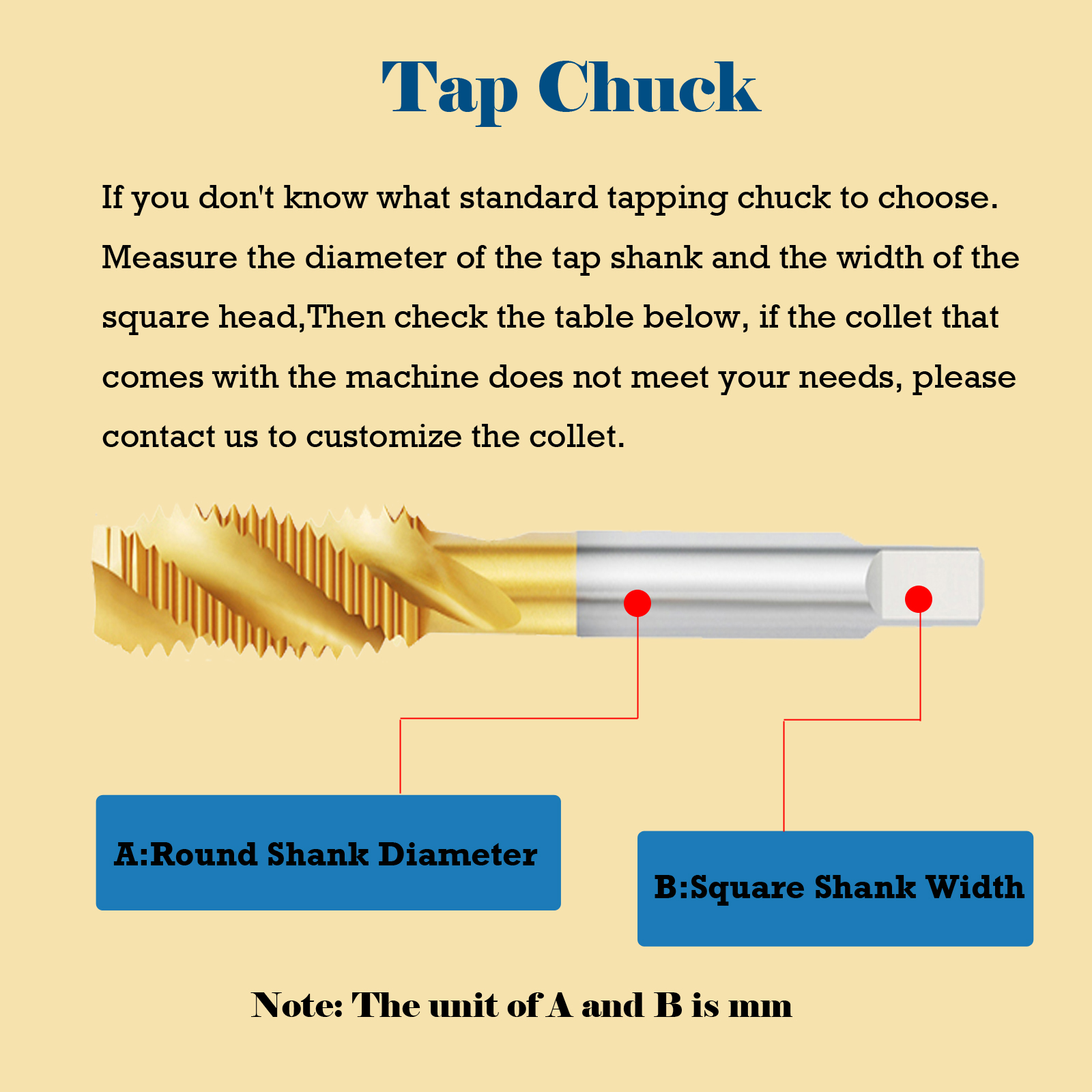

CHUCK SPECIFICATIONS
ISO(Metric) AxB JIS AxB DIN AxB INCH AxB
M2 2.80x2.25 M2 3.0x2.5 M2 2.5x2.1 1/8 4.0x3.15
M3 3.15x2.5 M3 4.0x3.2 M3 3.5x2.7 5/32 5.0x4.0
M4 4.0x3.15 M4 5.0x4.0 M4 4.5x3.4 3/16 5.5x4.5
M5 5.1x4.0 M5 5.5x4.5 M5 6x4.9 1/4 6.0x4.5
M6 6.3x5.0 M6 6.0x4.5 M6 6x4.9 5/16 6.2x5.0
M8 6.3x5.0 M8 6.2x5.0 M8 8x6.2 3/8 7.0x5.5
M10 8.0x6.3 M10 7.0x5.5 M10 10x8 1/2 9.0x7.1
M12 9.0x7.1 M12 8.5x6.5 M12 9x7 9/16 11.2x9.0
M14 11.2x9.0 M14 10.5x8.5 M14 11x9 5/8 12.5x10.0
M16 12.5x10.0 M16 12.5x10.0 M16
