35T Hydraulic Hole Punching Tool CH-70 for Iron Plate Copper Bar Aluminum

Slide Slide Slide Slide Slide Slide Slide
$234.97
Type
Hole Punch
Model
CH-70
UPC
Dose not apply
EAN
Dose not apply
Brand
LCyindu
MPN
D0069C0052
condition
New
35T Hydraulic Hole Punching Tool CH-70 for Iron Plate Copper Bar Aluminum
Details
【Product Specification】— Punching force: 35T/350KN; Depth of throat: 4.3". The max thickness of iron plate: 1/10" to 2/5" (3-10 mm), the max thickness of copper bar: 1/10" to 1/2" (3-12.7 mm), the max thickness of stainless steel: 1/10" to 3/10" (3-8 mm).

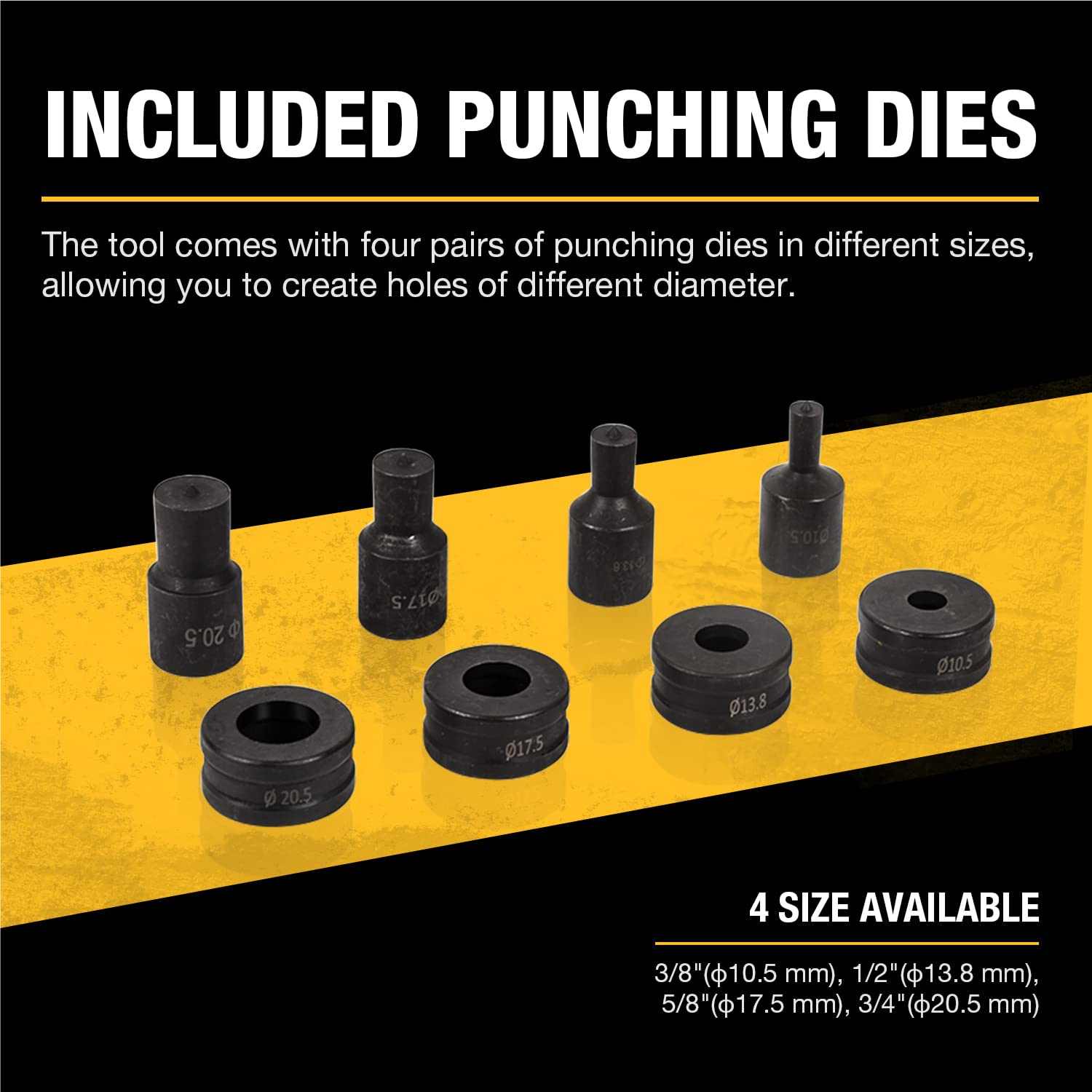

【4 Pairs of Dies】 — LCyindu hydraulic hole punching tool comes with four pairs of punching dies of 3/8"(ф10.5 mm), 1/2"(ф13.8 mm), 5/8"(ф17.5 mm), 3/4"(ф20.5 mm). Different dies are used for precise punching. It also has a precise localization without an offset. The punch dies are made of high carbon tungsten steel and not easy to wear off.

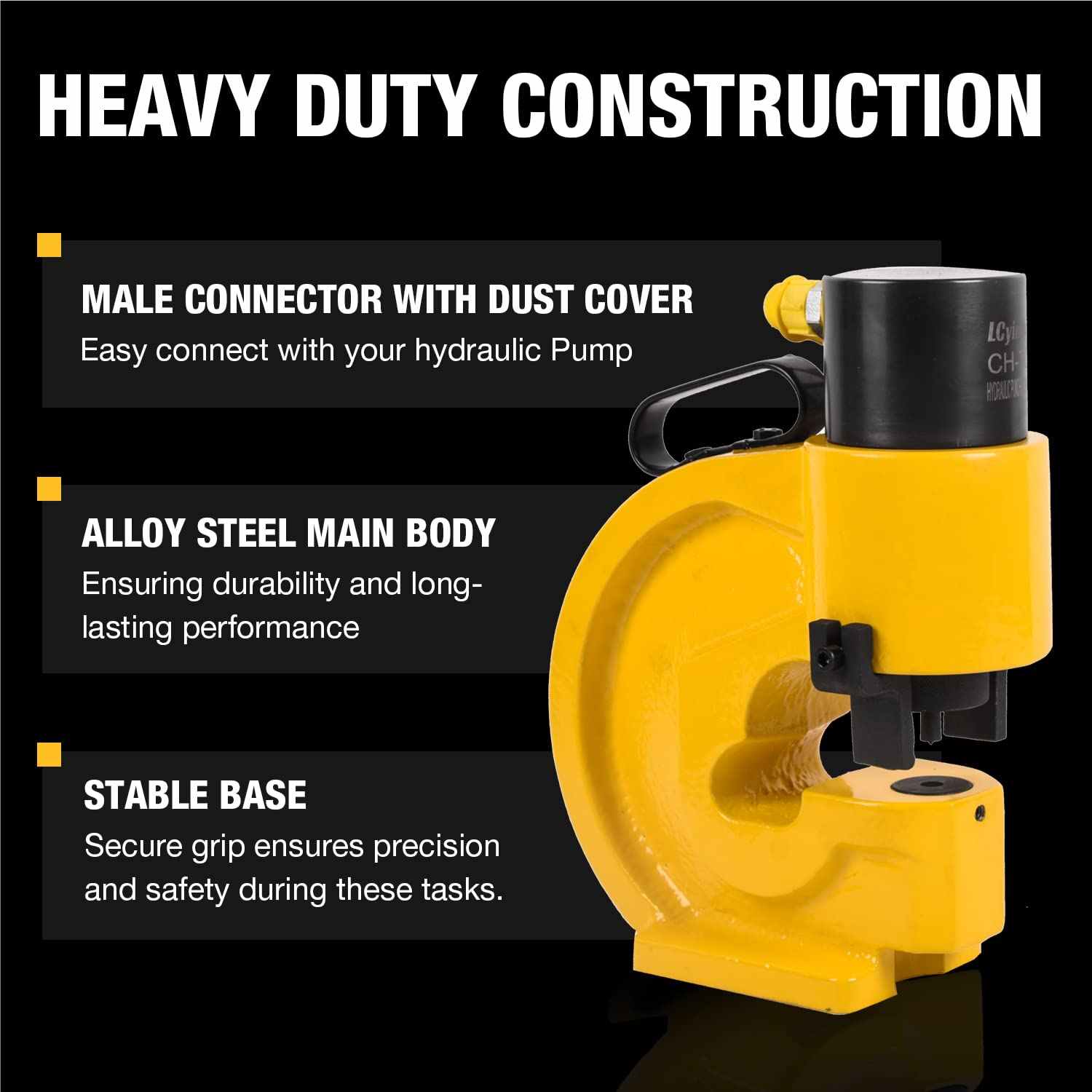

【Durable Steel Construction】— This hydraulic perforating tool is constructed of high quality alloy steel for high strength and good toughness. Heavy-duty metal perforating tools require connection to a hydraulic pump for ideal performance (pump not included). Plastic cover protects the perforating tool from dust.

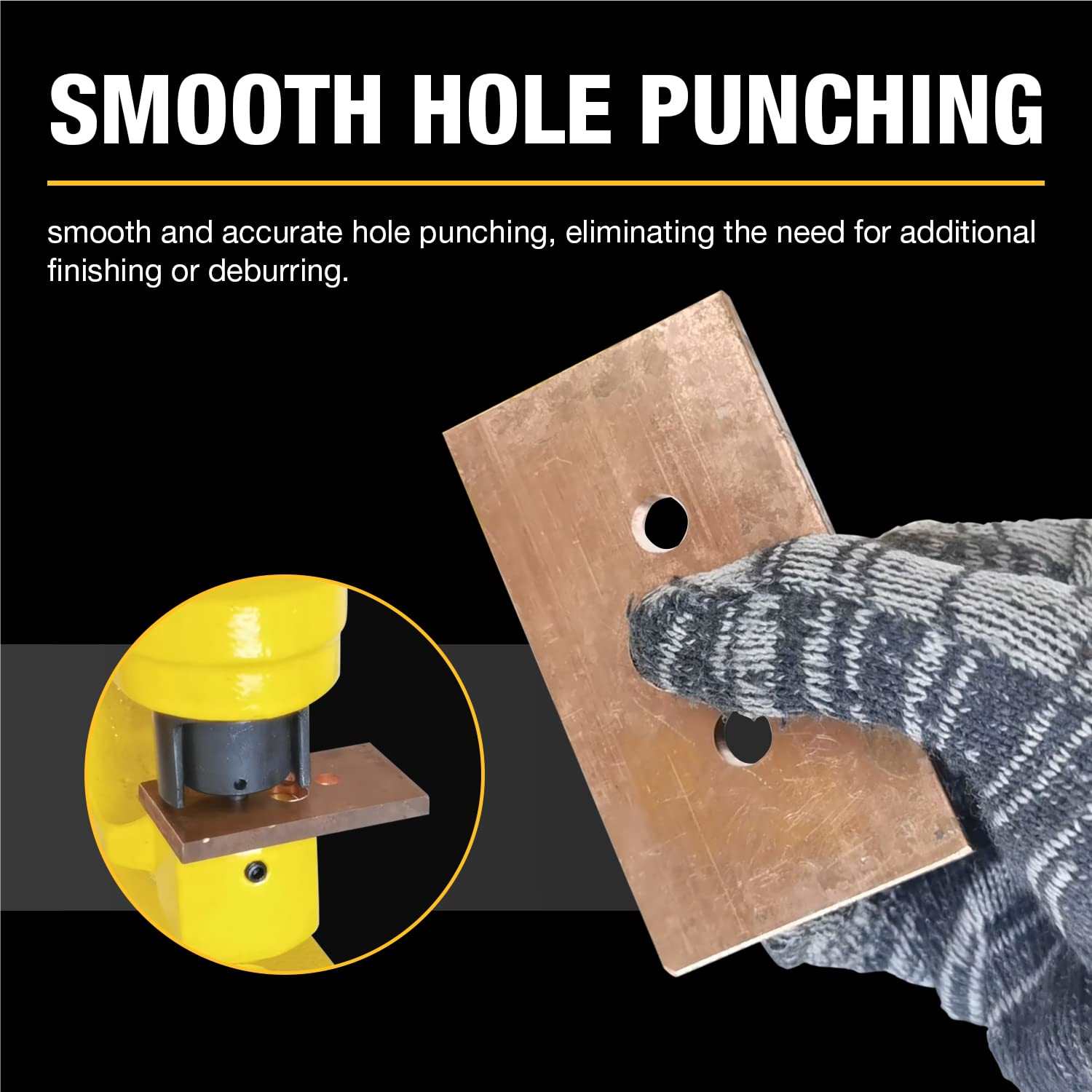

【Wide Range of Applications】 The split hole punching machine is widely used for punching iron, aluminum, copper, stainless steel and other metal plates, and is widely used in electric power, construction and other industries.
【Warranty】We are confident with the quality of our products, which won’t let you down. Please contact us if you have any problems about our product, we will reply you as soon as possible within 12 hours.

Specifications:

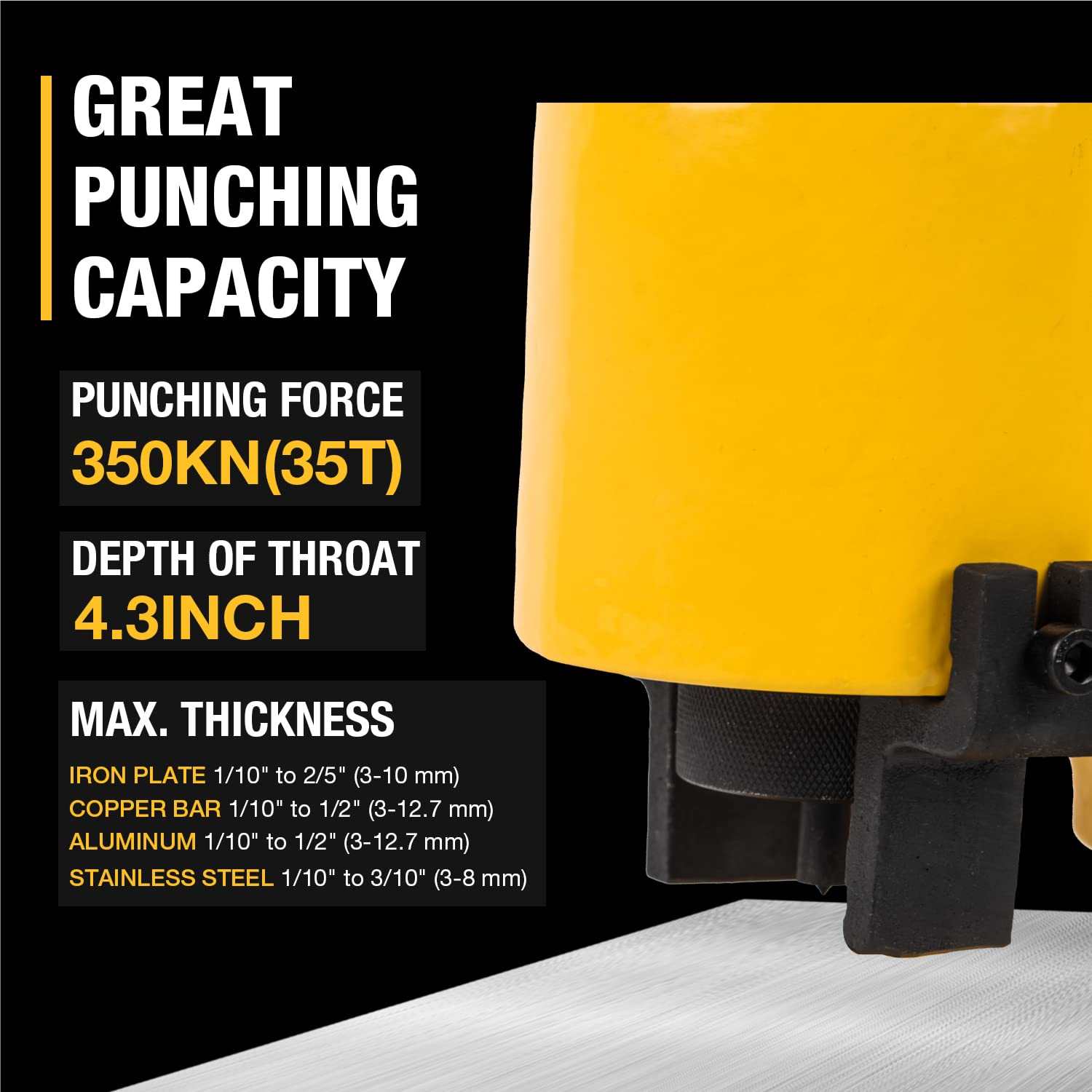

Punching Force: 350KN / 35T
Depth of Throat: 4.3"
Aperture(4 pairs): 3/8"(ф10.5 mm), 1/2"(ф13.8 mm), 5/8"(ф17.5 mm), 3/4"(ф20.5 mm)
Max. Thickness of Iron Plate: 1/10" to 2/5" (3-10 mm)
Max. Thickness of Copper Bar: 1/10" to 1/2" (3-12.7 mm)
Max. Thickness of Aluminum: 1/10" to 1/2" (3-12.7 mm)
Max. Thickness of Stainless Steel: 1/10" to 3/10" (3-8 mm)

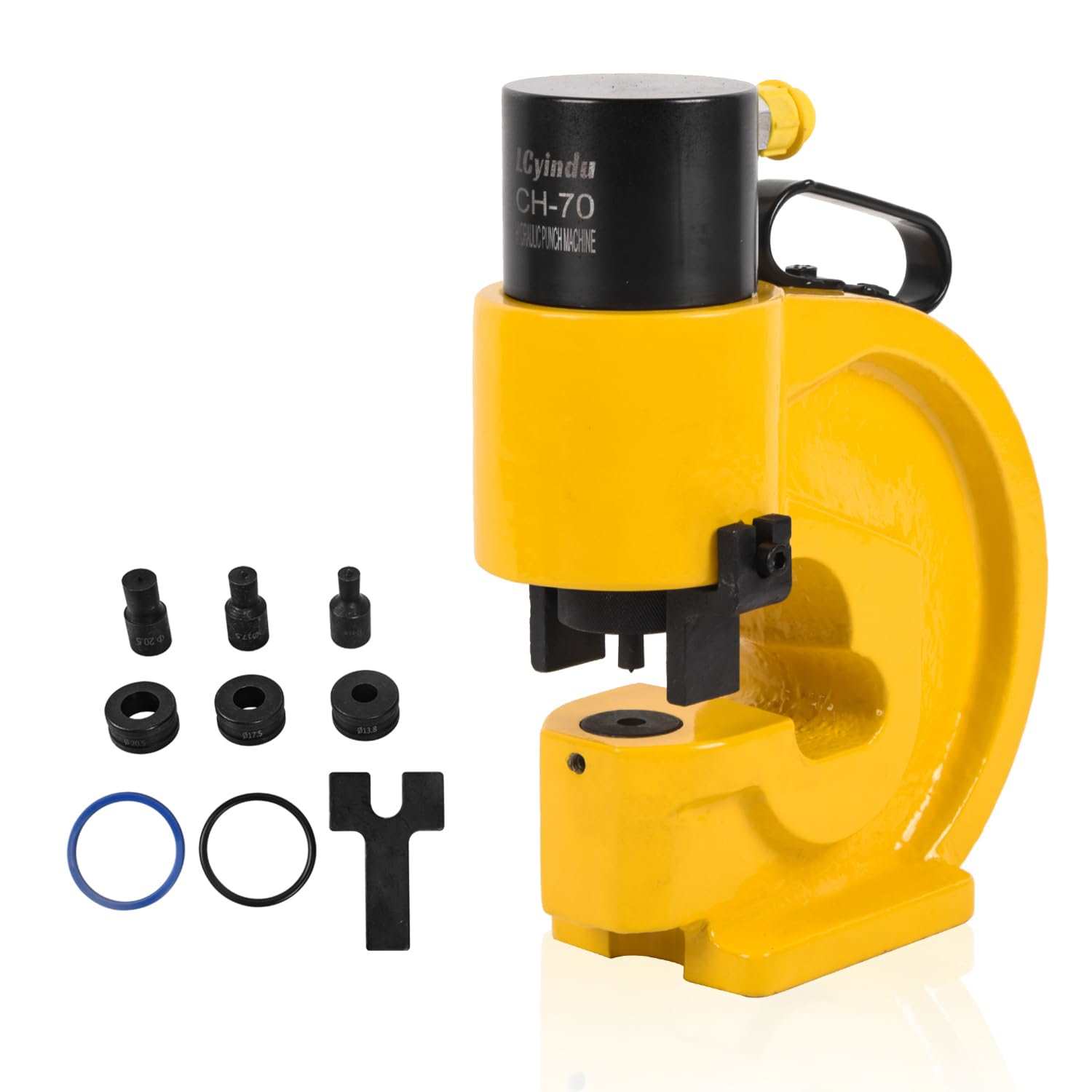

Package Content:
1 x Puncher
1 x Concave pressing plate
4 x Dies(one of them in the puncher)
1 x Allen wrench
Several Sealing Rings
