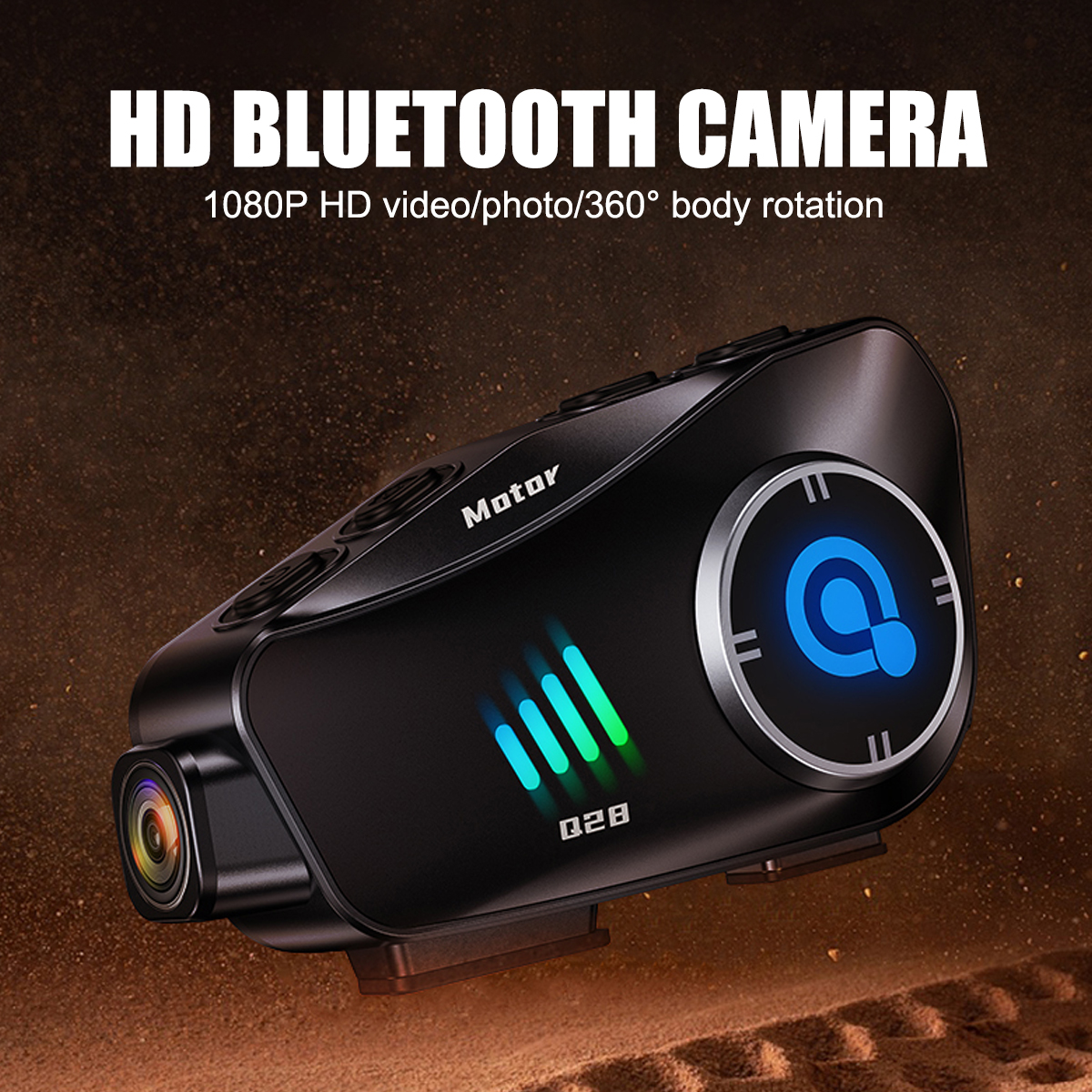

32G Bluetooth Motorcycle 1080P Camera Recorder Motorbike Helmet Headset Intercom

Features:

1. Two in one soft and hard microphone, suitable for installation of various helmet types

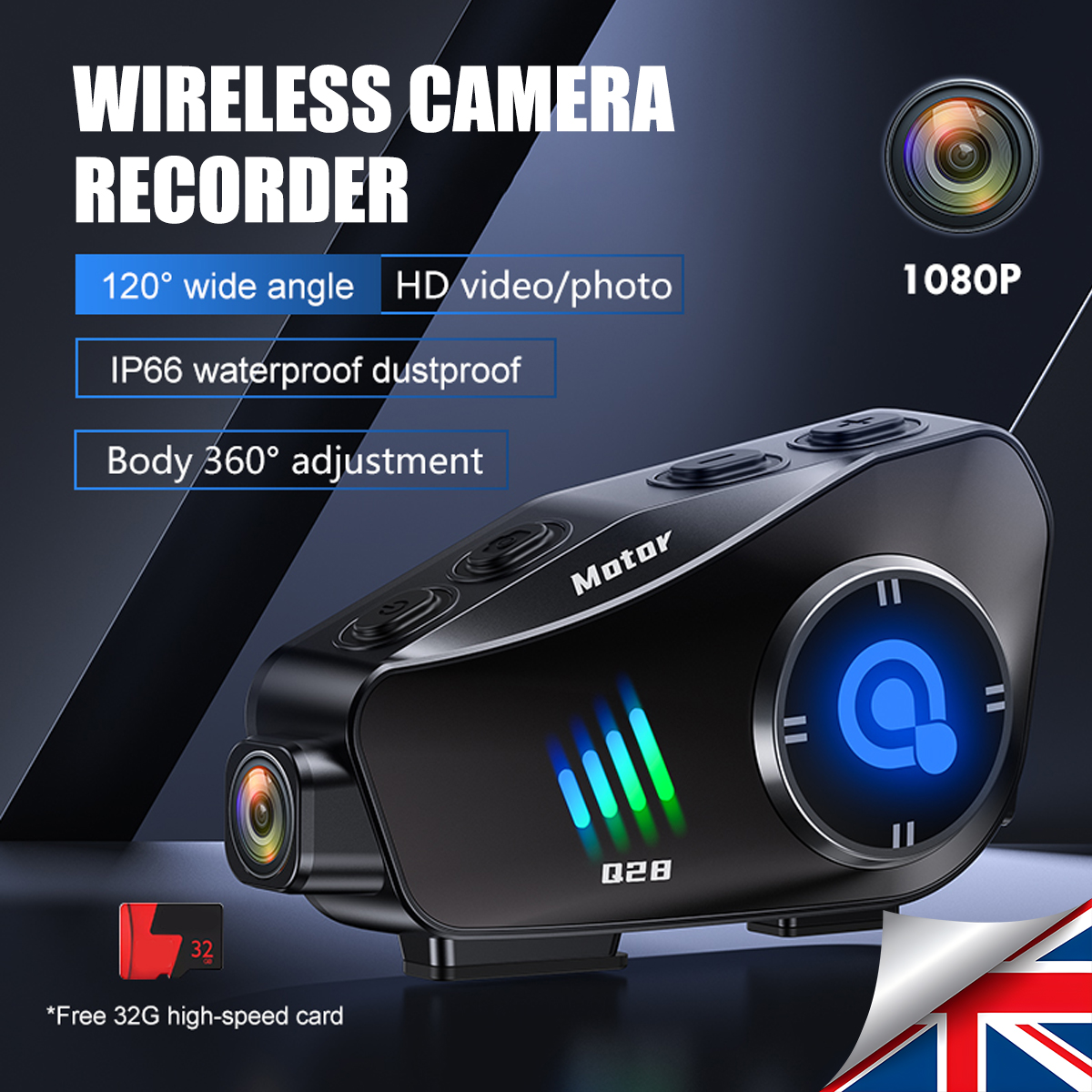

2. High definition 1080P camera recording, upgraded with new technology types, integrated headphone and recorder

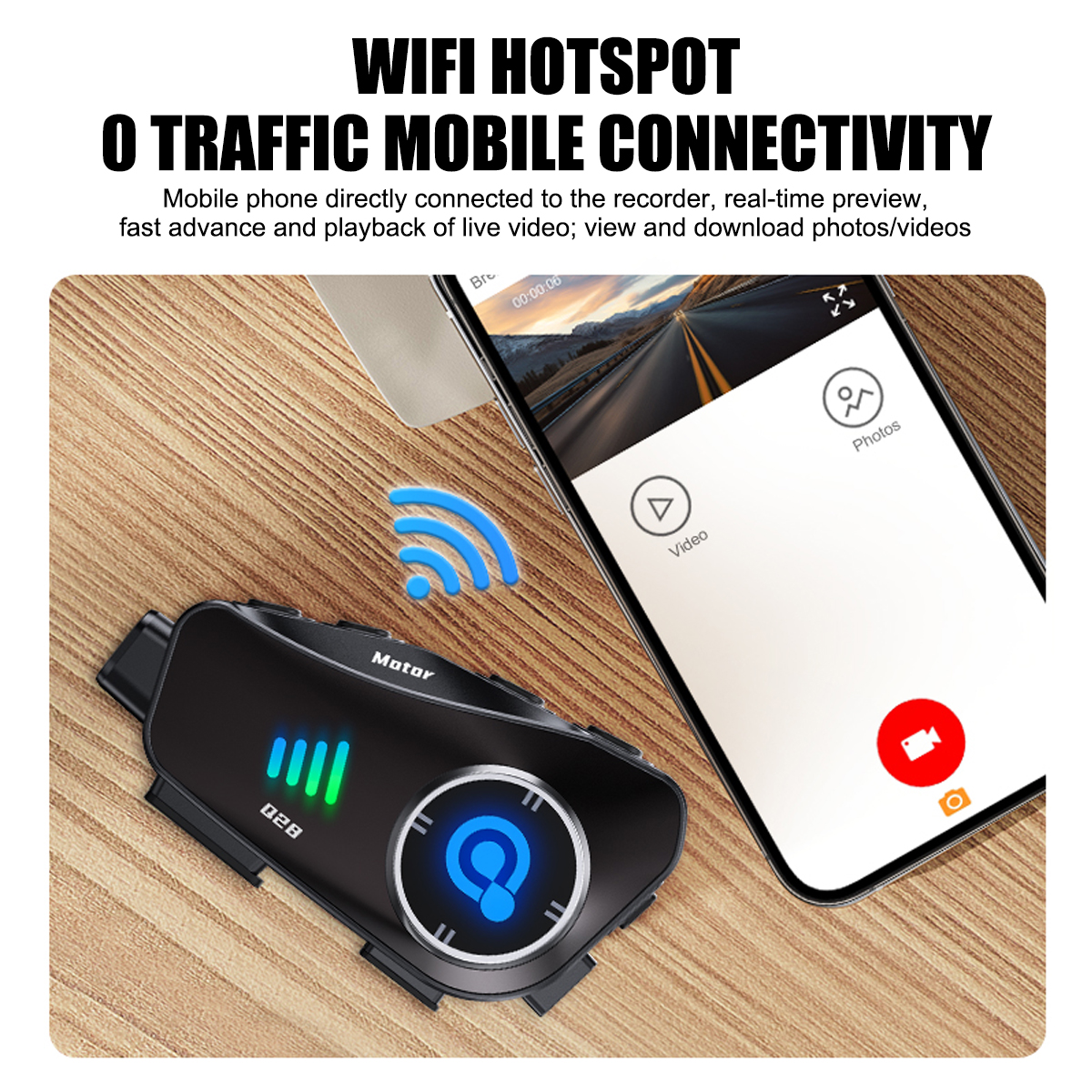

3. WIFI design, APP operation, recording, taking photos, viewing, etc., giving you a brand new experience

4. TF card support, recording every detail, clearly visible, the product includes 32G TF card

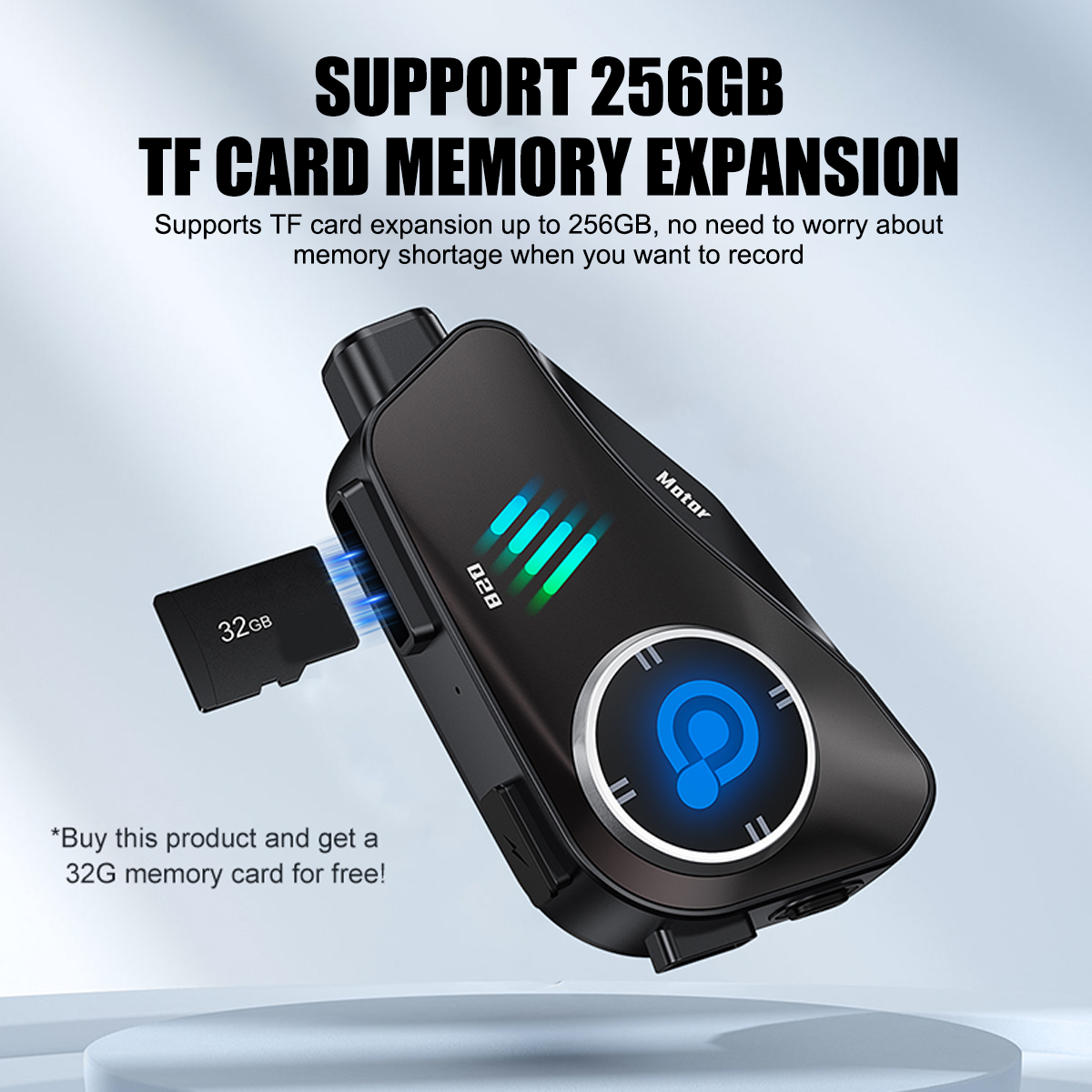

5. The recorder can automatically overwrite the loop. If you need more video and recording data, you can replace the memory card with a larger one by yourself, with a maximum support of 256GB

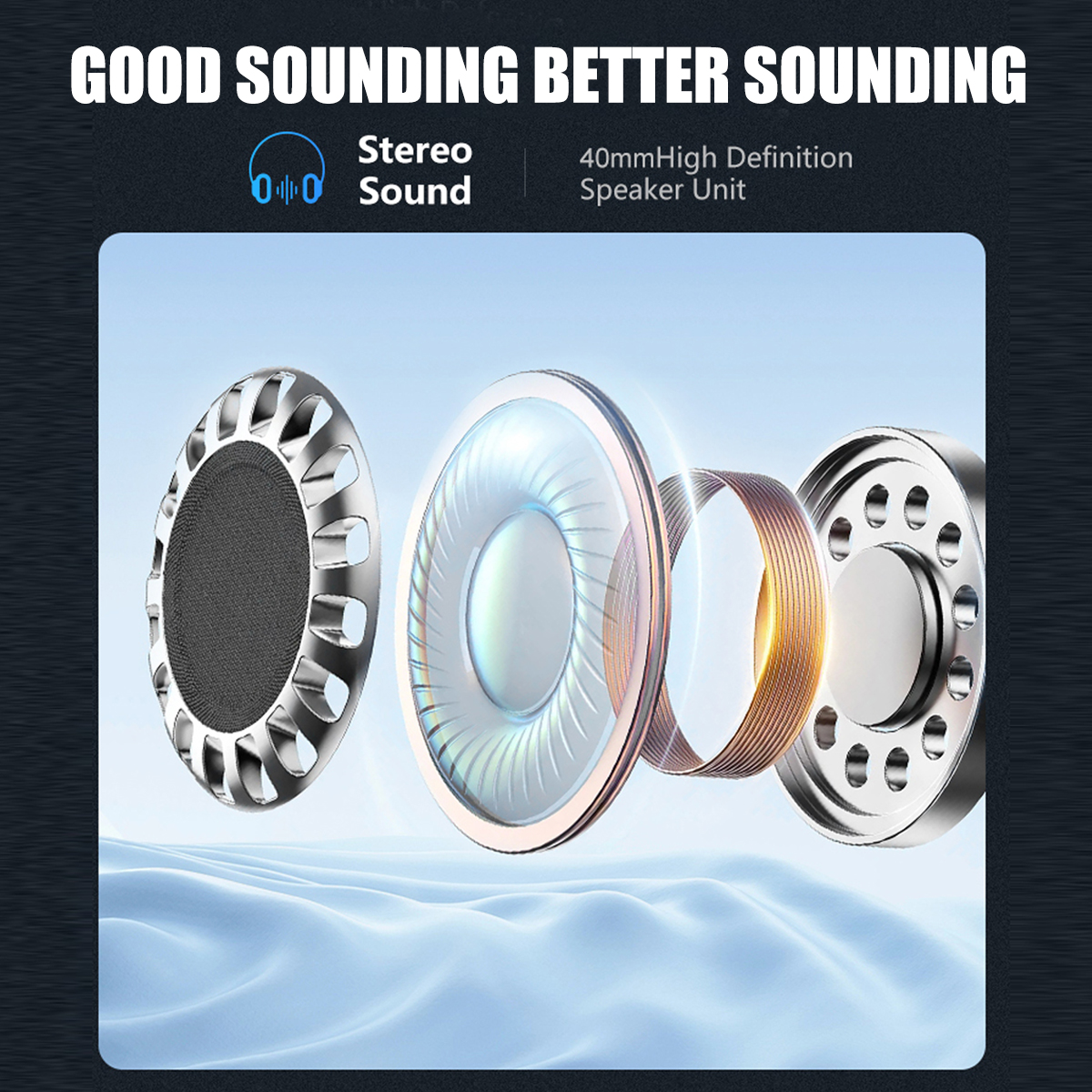

6. High quality speaker sound design, restoring the essence of music, making your listening more pleasant

7. Large capacity battery for long-lasting battery life

8. Using high configuration chips to improve product performance

9. IP65 waterproof, allowing you to easily withstand wind and rain

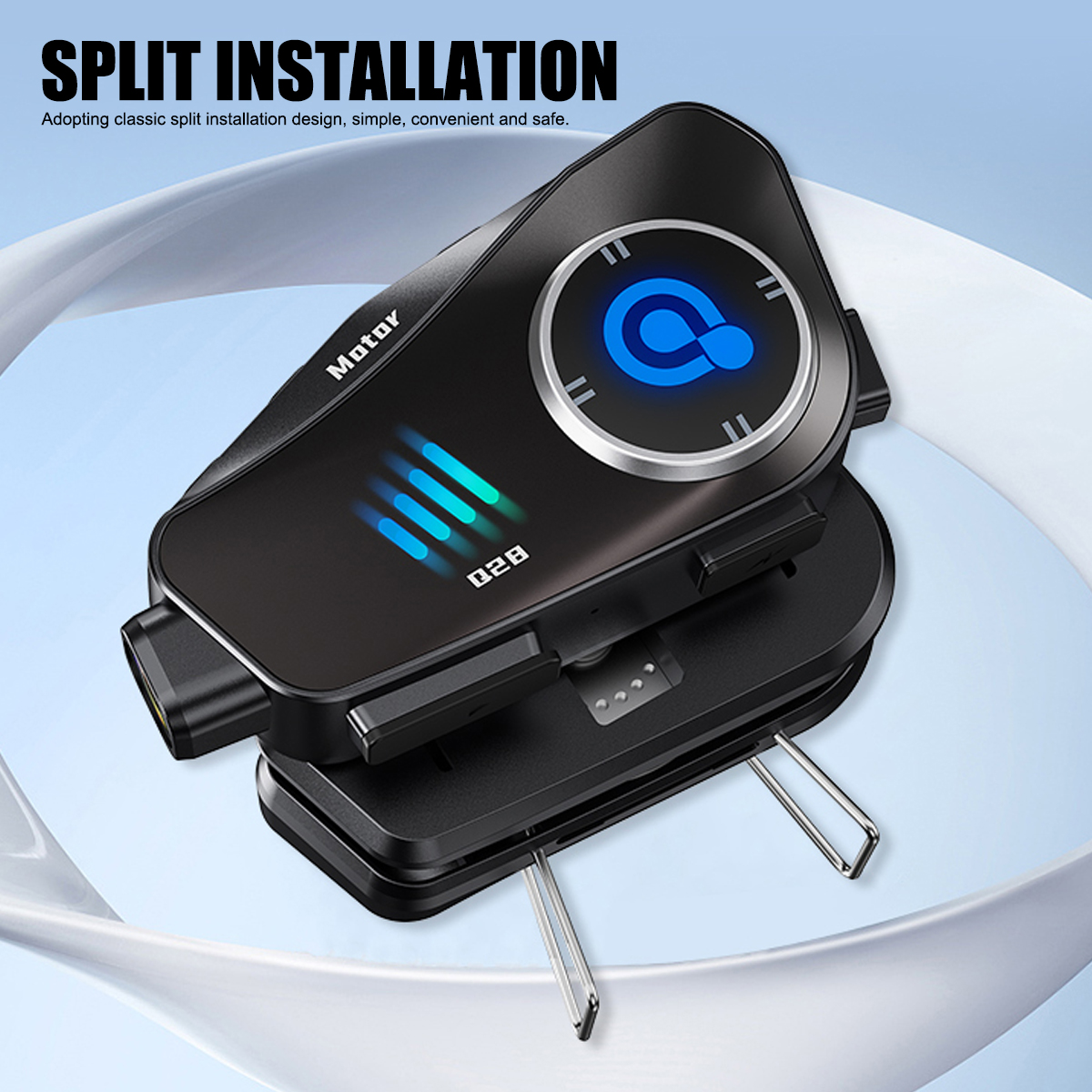

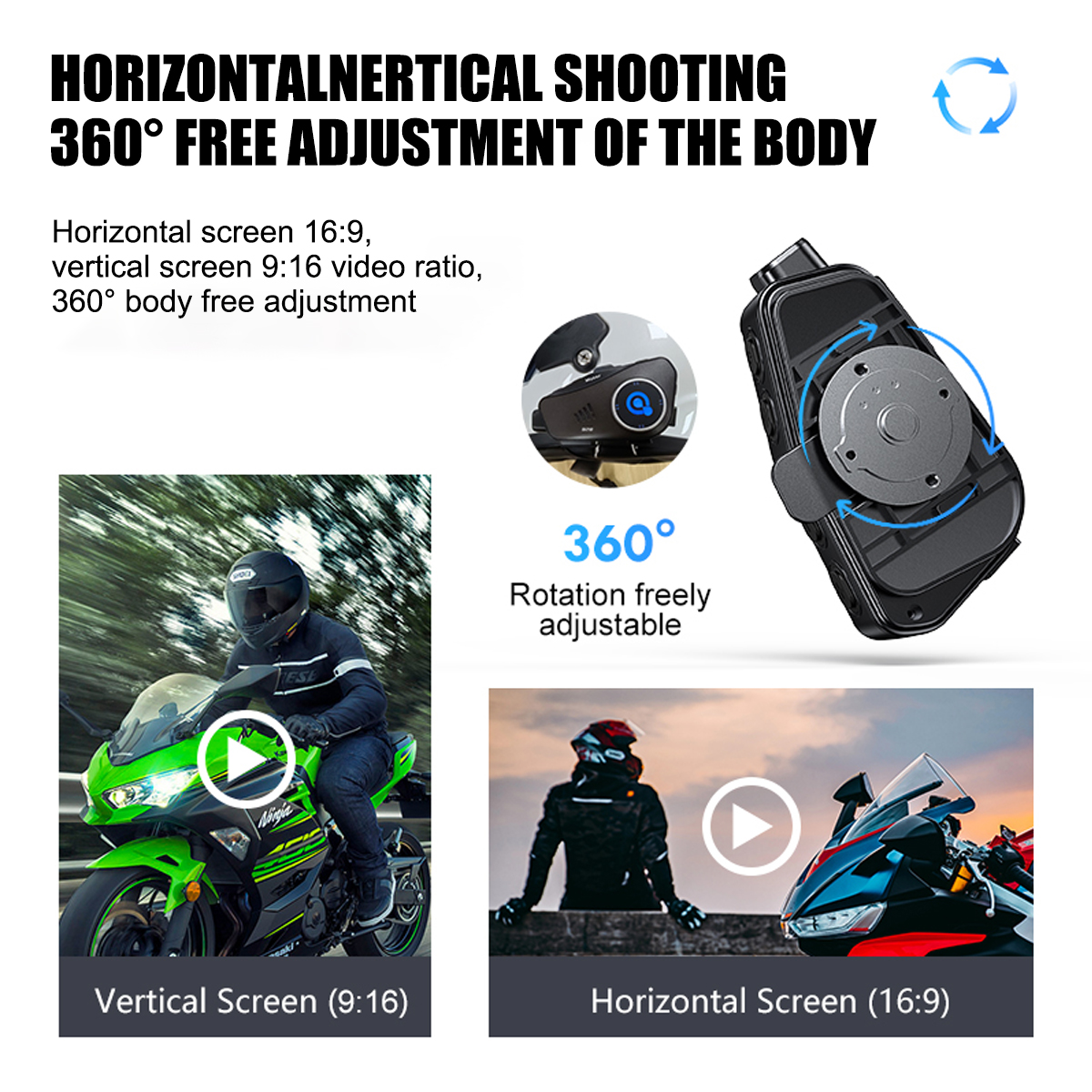

10. The headphone base can be rotated and adjusted, and the angle for easy helmet installation can be adjusted by itself

Specifications

Functional features: Bluetooth 5 3. Waterproof grade IPX6, clear and loud Bluetooth communication, high-definition 1080P driving recorder, with an APP for easy access

Bluetooth distance: 10M (obstacle free)

APP Name: Roadcam (supports Android and iOS)

WIFI Connection Name: YX-Q28-WIFI (The APP connects to the local area network, but after successful use, the phone cannot connect to other WIFI devices)

Frame rate: 30 frames

Volume adjustment method: Touch the button to adjust

Watch video recordings

Pixel: 2 million

Resolution: 1080P

Video recording time and size: default to one file every 5 minutes (APP can choose recording time and file size) 1920 * 1080

Recording method: Loop recording (meaning that after a memory card is recorded, it will automatically overwrite the previous recording files, and so on)

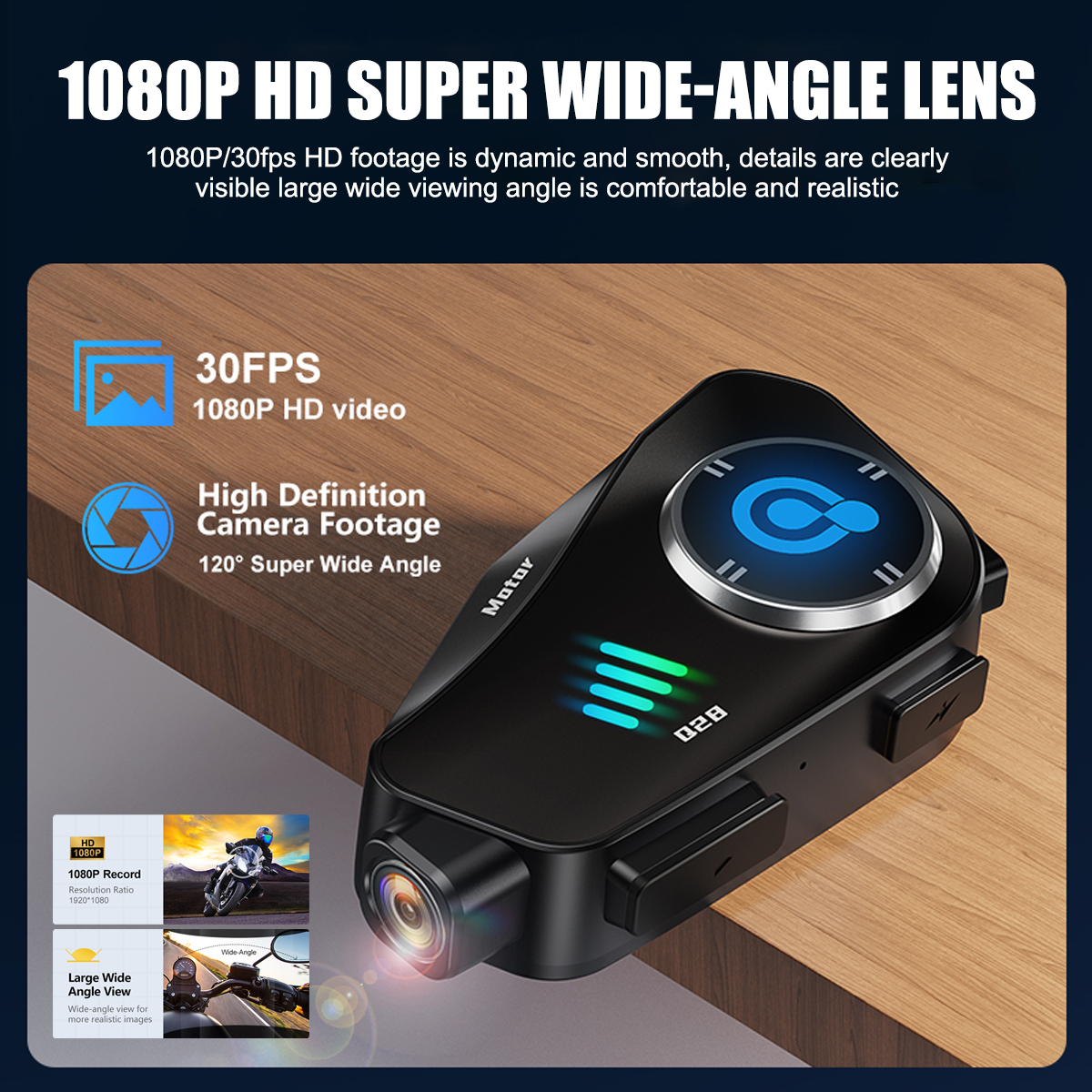

Lens angle: Wide angle 120 °

Photo quality: default 12M (4032 * 3024): APP optional

Storage type: Micro SD card equipped with TF card 32G (supporting ≤ 256G) (Class10 high-speed card)

Charging voltage: 5V/1A

Power supply: built-in polymer lithium battery 3.7V 1500MAH

Headphone interface: TYP-C

Earphone type: Soft and hard microphones can be switched

Signal to noise ratio: 78dB

Charging time: about 3 hours

Call duration: can continuously call for 50 hours

Driving recorder duration: 6 5H (without music on)

Bluetooth playback time: around 45H (maximum volume of popular music); Turn off the dash cam

Simultaneous use of dash cam and Bluetooth: The dash cam has a usage time of 6H and the music has a usage time of 10H

Horn frequency response: 100Hz~18KHz

File format: Video file format

Photo format: JPG

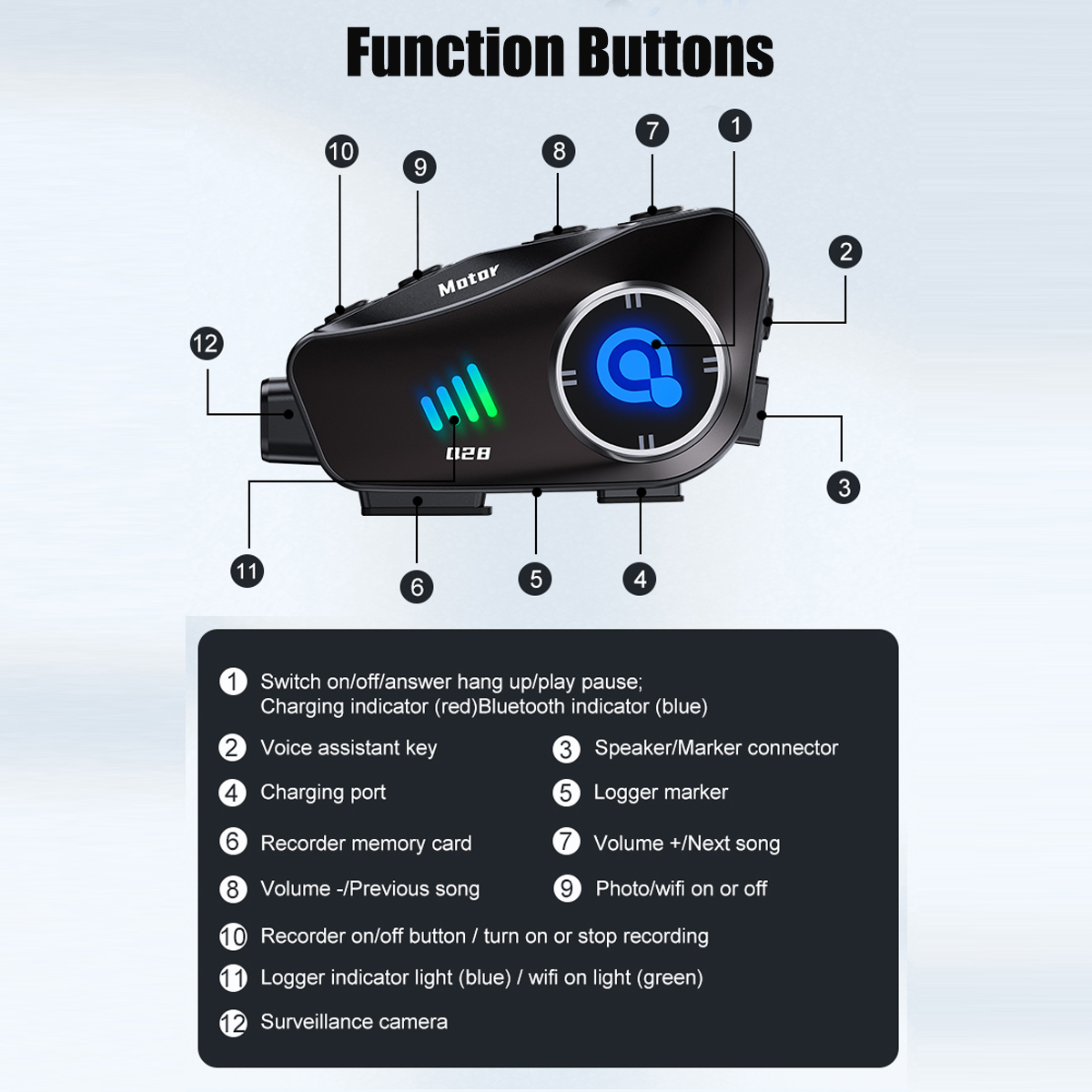

Bluetooth on/off button:

Press and hold the front power button for 3 seconds to turn on and off,

In music mode: Short press to play or pause music;

In incoming call mode: Short press to answer the call,

Short press the hang up call again; Long press to reject or hang up a call; Double click on the last code to replay. When a call is made, it will be accompanied by a ringtone

Double click to switch between Chinese and English prompts when turning on without Bluetooth connection

On/off button for driving recorder: Press and hold for 3 seconds to turn on/off the device; When turned on: Short press to turn on or off the recording of the dash cam.

Photo button: In power on mode: Short press to take a photo; Double click to turn on or off WIFI function

Operation mode of the dash cam APP (working conditions of the dash cam: a memory card must be inserted to function properly)

1： Download APP

Open your phone's Android or iOS and search for and download the app directly from the mobile application market or APP STORE. The app name is Roadcam, and then install it

can

2： Host Connection APP

Long press the on/off button of the main driving recorder to turn it on, double-click the camera button to turn on WIFI, use your phone to turn on the WIFI function, and search for the WIFI name:

YX-Q28-WIFI.....， After clicking on the successful connection (the phone will be in a no network state), open the downloaded Roadcam, click on Connect Recorder, and connect

After completion, the main interface of the APP will display that the recorder has been successfully connected. Click to enter and you will see the recorded video

3： View pre recorded videos or photos

Repeat the second operation above. After entering the video viewing interface, pause recording first, and then click the video button on the window to enter

View recorded videos; The photo viewing operation is the same.

Q28 usage precautions:

1. When turning on the device and connecting to Bluetooth, there is no sound when playing music. Please confirm that the label cable is on the correct interface or that the label cable interface is fully connected to the corresponding interface

During normal use, due to the higher power consumption of the dash cam compared to Bluetooth, the dash cam will shut down first, and Bluetooth will work normally, which is considered positive

Common phenomenon

3. It is normal for the phone to be connected to the WIFI of the driving recorder, but there is no signal from the phone

4. The dash cam fails to connect to the APP, please confirm that the mobile phone's WIFI is connected to the local WIFI name; Or exit the app on the mobile end, machine

Switch on/off and reconnect the device

5. If the charging indicator light is red and not on, confirm that the charging cable is on the correct interface

6. When the machine is plugged into a charging cable for charging, the Bluetooth function will automatically shut down, and the driving recorder end will turn on, which is a normal phenomenon. Suggest charging

During the electrical process, turn off the driving recorder and use the machine suddenly.

7. The memory card of the dash cam is recommended to purchase a branded high-speed memory card (Class10) due to high-definition video reading and writing

Note: If the dash cam encounters a crash during use, please short press the dash cam at the same time

The on/off button and photo button are reset and can be used after restarting.

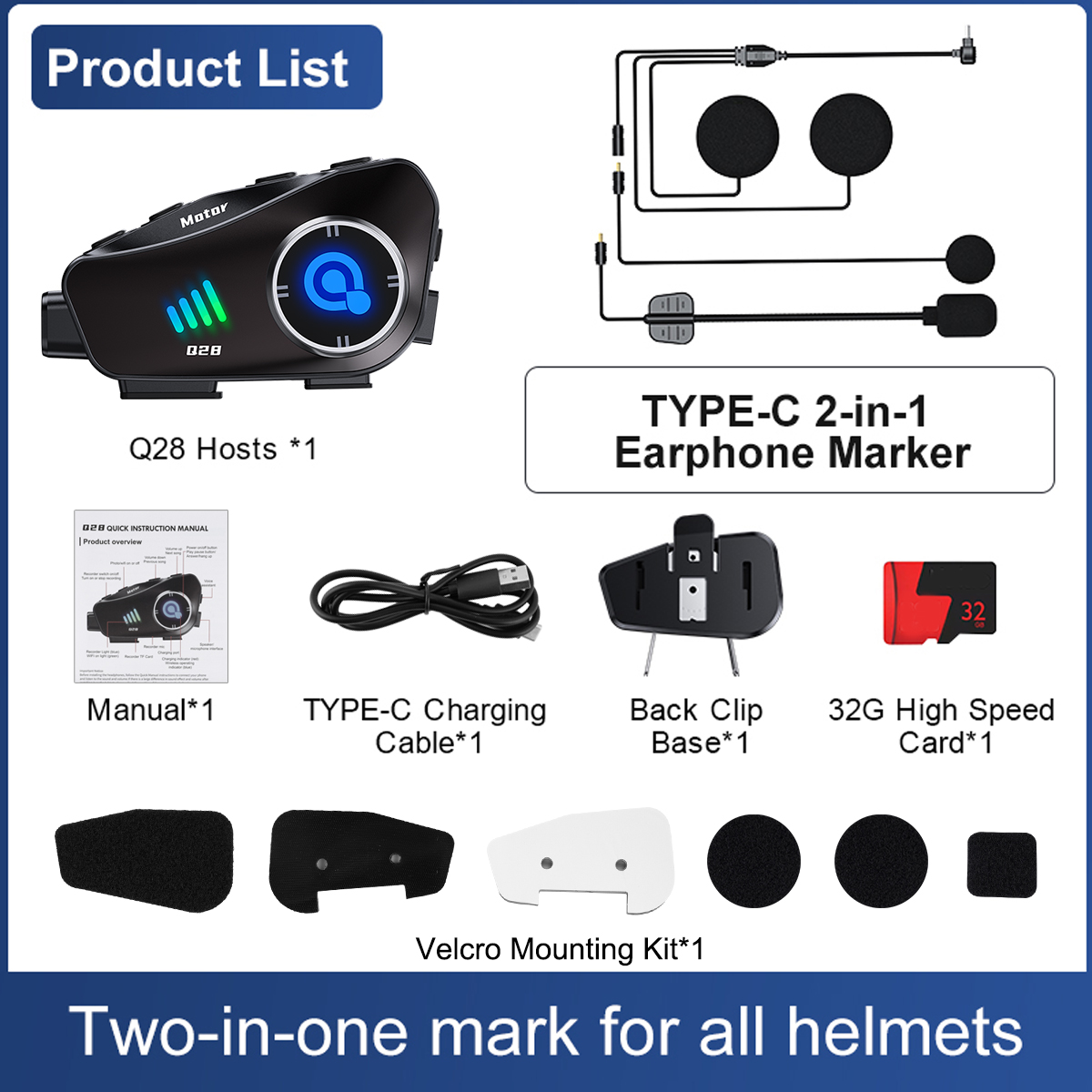

Product List:

Helmet earphones * 1

Earphone base * 1

Velcro installation package * 1

2-in-1 soft and hard microphone * 1

Charging cable * 1

TF card 32G * 1

Instruction manual * 1
