3 Hp Submersible Sewage Pump, 220V/3Phase, 388Gpm Max flow, 43 Ft Max Head NPT3"

Slide Slide Slide Slide Slide
$739.0
Brand
Shimge-USA
Unit Type
Unit
Housing Material
Iron Cast
Number of Phases
1 Phase
Maximum Flow Rate
388 gpm
Supply Voltage
220 V
Rated Power
3 hp
Features
Submersible
MPN
80WQD2.2-4P
Discharge Diameter
3 in
Unit Quantity
1
Country/Region of Manufacture
China
condition
New

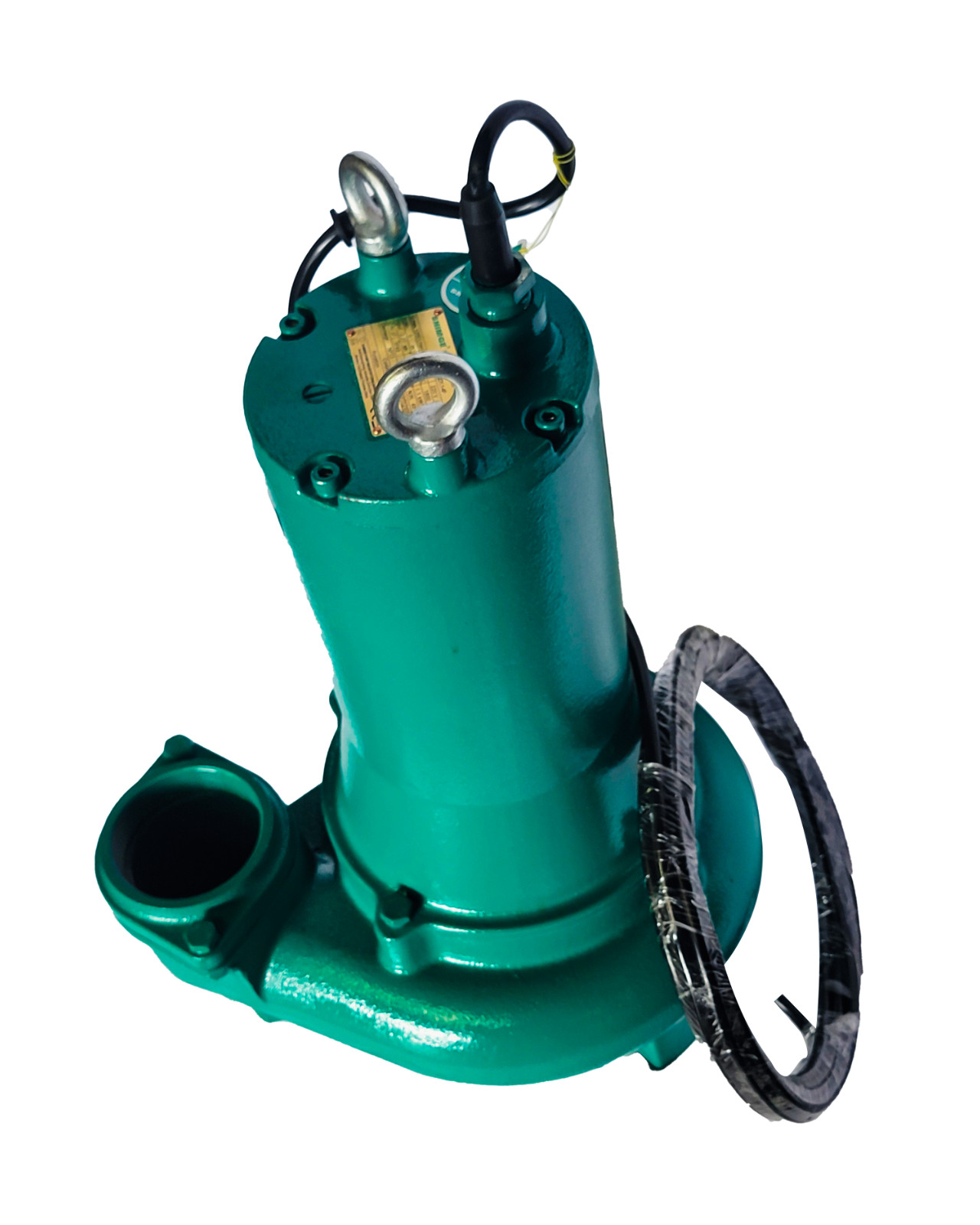

Shimge-USA 80WQ(D)2.2-4P Submersible Sewage Pump

Thermally Protected

Heavy Duty, One Year Warranty
Technical Data
220 Volts / 3 Phase / 60 Hz                                Thermally Protected
1,800 RPM
Float Switch: NO
Built-in-Grinder: NO
Model Power Current Max. Flow Max. Head Power Cable Discharge DIM Weight
KW HP Amps GPM Feet Feet Inches L x W x H Lb
80WQD2.2-4P 2.2 3 10.5 388 43 3x1.5-26' NPT3 15”x12”x24” 117

To determine the volume of fluid a pump can transfer at different pressure levels (head), consult the performance curve for the appropriate pump model.
Application Limits
  • The temperature of the medium shall not exceed +40°C
  • The PH value of the medium shall be 4-10
  • The maximum density of the medium shall be 1.2 x 103Kg/2m
  • The submersion depth shall be no less than 1.6 feet and no more than 16.4 feet
  • Can not be used where explosion proof is required or to treat any explosive or flammable liquids like oil, gasoline, kerosene or ethyl alcohol.
  • Electric motor is thermally protected, against over-loads.
  • The pump housing and impeller are constructed from a combination of steel and stainless steel, enhancing mechanical durability while effectively boosting resistance to abrasion and corrosion.
  • 26 feet long power cord.
Performance Curve
Applications
  • Widely applied to the industry, hotels, hospitals, construction, municipal services, environmental protections and other sectors
  • 50WQD can be used to process sewage, waste water and flood containing debris smaller than 1.5 inches
  • 80WQD can be used to process sewage, waste water and flood containing debris smaller than 2 inches
  • Can be used to pump liquids containing solid particles such as fiber, scrapped paper, soft solid objects, like muddy water, dirty water, domestic wastewater, sewage and slurry. Can be used on site construction to drain sewage and flood
