| Product Description |
Solar pumps are specially designed to be powered by solar panels alone, without the need for batteries, generators or mains power.
Feature:
Free run. Save money, environmental protection is the advantage of our solar submersible pump for irrigation .
The controller also protects the pump from frequent start up in low light conditions, overheating & running dry.
Batteries can also be connected via the controller if you need the flexibility of pumping on demand at any time.
Low water level sensors & tank full sensors are included so the pumping system can be fully automated.
With sensors installed, the pump will switch off if the header tank is full or if the water source has fallen below the pump intake.
Automatic restart when water returns to the well or when the motor temperature returns to the safety range.
Easy installation, maintenance-free, safe and reliable.
Compact structure, high-lift, noiseless, non-pollution, complete electrical protecting controller device.
solar submersible pump for irrigation body:stainless steel
Impeller of solar submersible pump for irrigation:stainless steel
Free run. Save money, environmental protection is the advantage of our solar submersible pump for irrigation .
The controller also protects the pump from frequent start up in low light conditions, overheating & running dry.
Batteries can also be connected via the controller if you need the flexibility of pumping on demand at any time.
Low water level sensors & tank full sensors are included so the pumping system can be fully automated.
With sensors installed, the pump will switch off if the header tank is full or if the water source has fallen below the pump intake.
Automatic restart when water returns to the well or when the motor temperature returns to the safety range.
Easy installation, maintenance-free, safe and reliable.
Compact structure, high-lift, noiseless, non-pollution, complete electrical protecting controller device.
solar submersible pump for irrigation body:stainless steel
Impeller of solar submersible pump for irrigation:stainless steel
Specifications
| Model | 3SSH1.3/50-D24/140 | Outline | 3inch/75MM | Outlet | 3/4inch | ||||||||
| Power | 140W | Rated Voltage | 24V DC | G.W | 10kgs | ||||||||
| Max Flow | 1300L/H | Max Head | 50M | Package Size | 52*33*15cm | ||||||||
| Outlet Material | AISI 304 Stainless Steel | Pump Boby | AISI 304 SS | Helical Rotor | AISI 304 SS | ||||||||
| Motor | BLDC Motor,Oil-filled | Cylinder | Brass | Pump Length | 487mm | ||||||||
| PERFORMANCE CHART | |||||||||||||
| Head (M) | 0 | 5 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | 55 | 60 |
| Flow(m³/h) | 1039 | 1.28 | 1.16 | 1.07 | 0.94 | 0.86 | 0.75 | 0.67 | 0.57 | 0.49 | 0.4 | 0.24 | 0 |
| Current(A) | 4.3 | 5.1 | 5.8 | 6.9 | 7.8 | 8.7 | 9.6 | 10.6 | 11.4 | 12.3 | 13.3 | 14.6 | 13 |
| Power(W) | 104 | 123 | 140 | 166 | 188 | 209 | 231 | 255 | 274 | 296 | 320 | 351 | 312 |

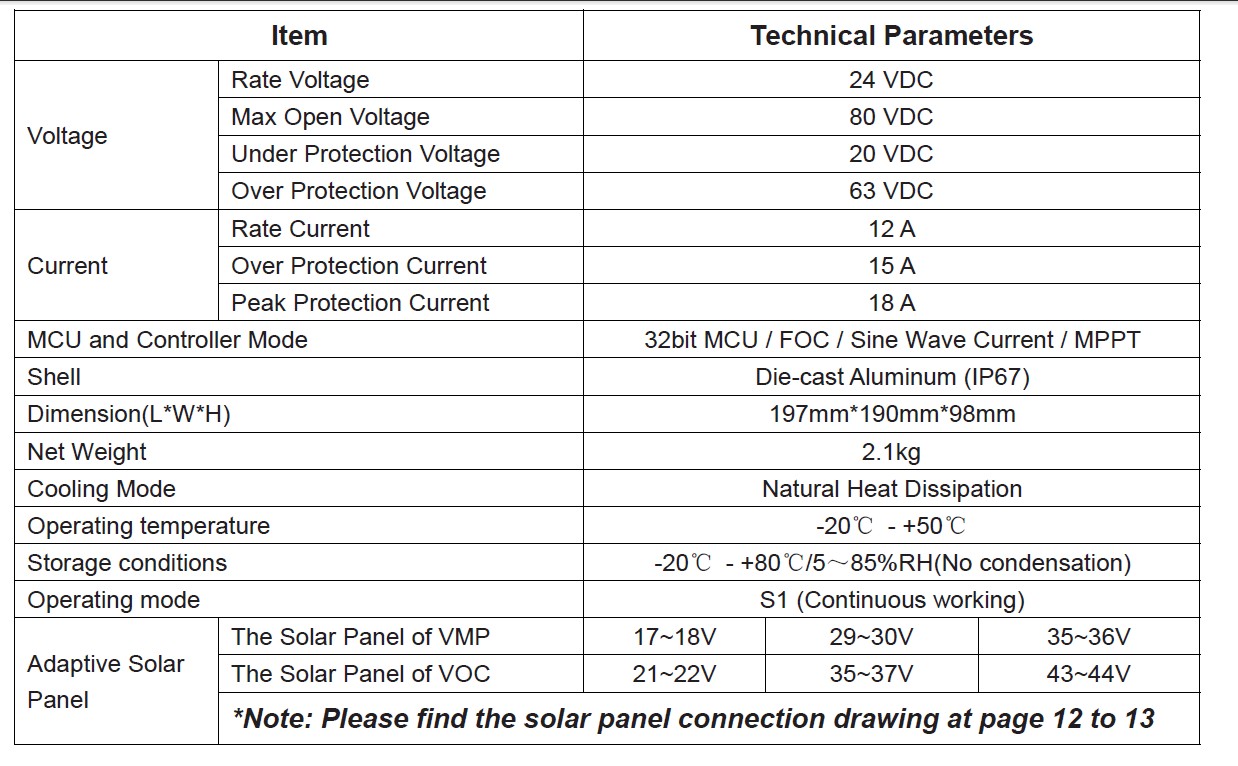

Solar Pump Controller
The pump controller drives the high efficiency brushless DC pump motor, utilising the latest Maximum Power Point Tracking (MPPT) technology to ensure maximum flow is delivered under all light conditions.
Controller Protection Features
Electronic monitoring gives the controller the capability to monitor the system and automatically shut
down in the event of:
• Dry well conditions – with low level switch
• Bound pump – with auto-reversing torque.
• High Voltage Surge
• Low Input Voltage
• Open motor circuit
• Short circuit
• Over heat
Application
Electronic monitoring gives the controller the capability to monitor the system and automatically shut
down in the event of:
• Dry well conditions – with low level switch
• Bound pump – with auto-reversing torque.
• High Voltage Surge
• Low Input Voltage
• Open motor circuit
• Short circuit
• Over heat
Application
Irrigation/Automatic water sprinkler system
Garden Fountains
Livestock/Living water supply
Water treatment systems
Large Scale Watering System for Commercial
Package included
Garden Fountains
Livestock/Living water supply
Water treatment systems
Large Scale Watering System for Commercial
Package included
1pcs Solar Submersible Water Pump
1pcs Solar Pump Controller
1pcs Solar Pump Controller
