3.3 FT Mini SAS to 4x SATA Cable SFF-8087 to SATA Cord Hard Drive Splitter Cable

Slide Slide Slide Slide Slide Slide
$12.49
Brand
Cmple
MPN
S-1396
Type
HDD Cable
Connector A
Mini SAS SFF-8087 Male
Connector B
SATA Male
Compatible Brand
Server, NAS, Motherboard, HDD, SSD, etc
Cord Length
3.3FT
Gauge
30 AWG
Length
1 M
What will you receive
1x 3.3FT Mini SAS 36 Pin Male to 4x SATA 7Pin Female Cable
Compatible With
Server, NAS, Motherboard, HDD, SSD, etc
Warranty
Limited Lifetime
UPC
619162091377
condition
New
Document

Product Description

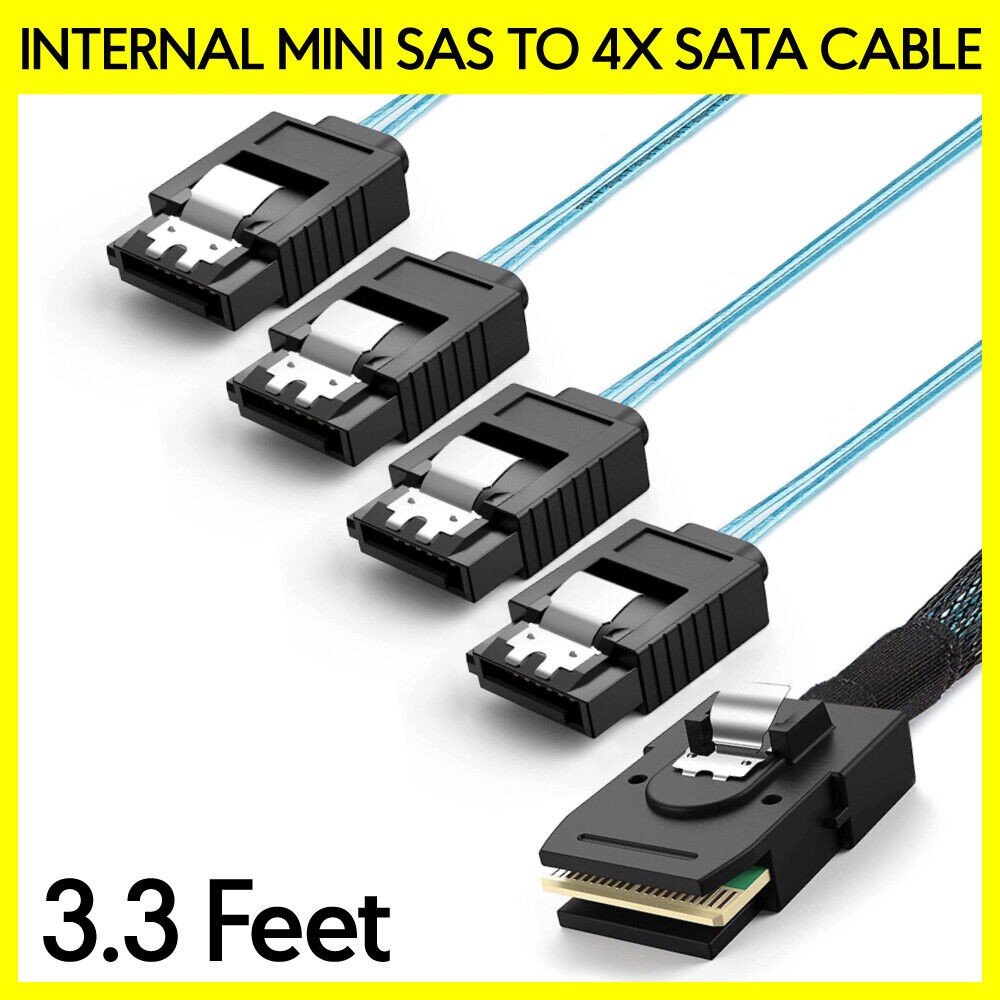

Internal Mini SAS to SATA Cable - 3.3 Feet

Our Mini SAS to SATA adapter provides reliable internal connectivity between a SCSI controller card in a computer system and directly connected four storage devices with a SATA connector. It is typically used to connect internal Mini-SAS drives, servers, and switches.

Serial Attached SCSI (SAS) is a high-speed data storage interface designed for high-throughput and fast data access. Intended primarily for data storage centers, the SAS interface is backward compatible with SATA. This allows the user to mix more expensive, lower-capacity SAS drives for applications that require faster data access and higher reliability, with lower-cost, higher-capacity SATA drives for applications with lower access speed requirements.

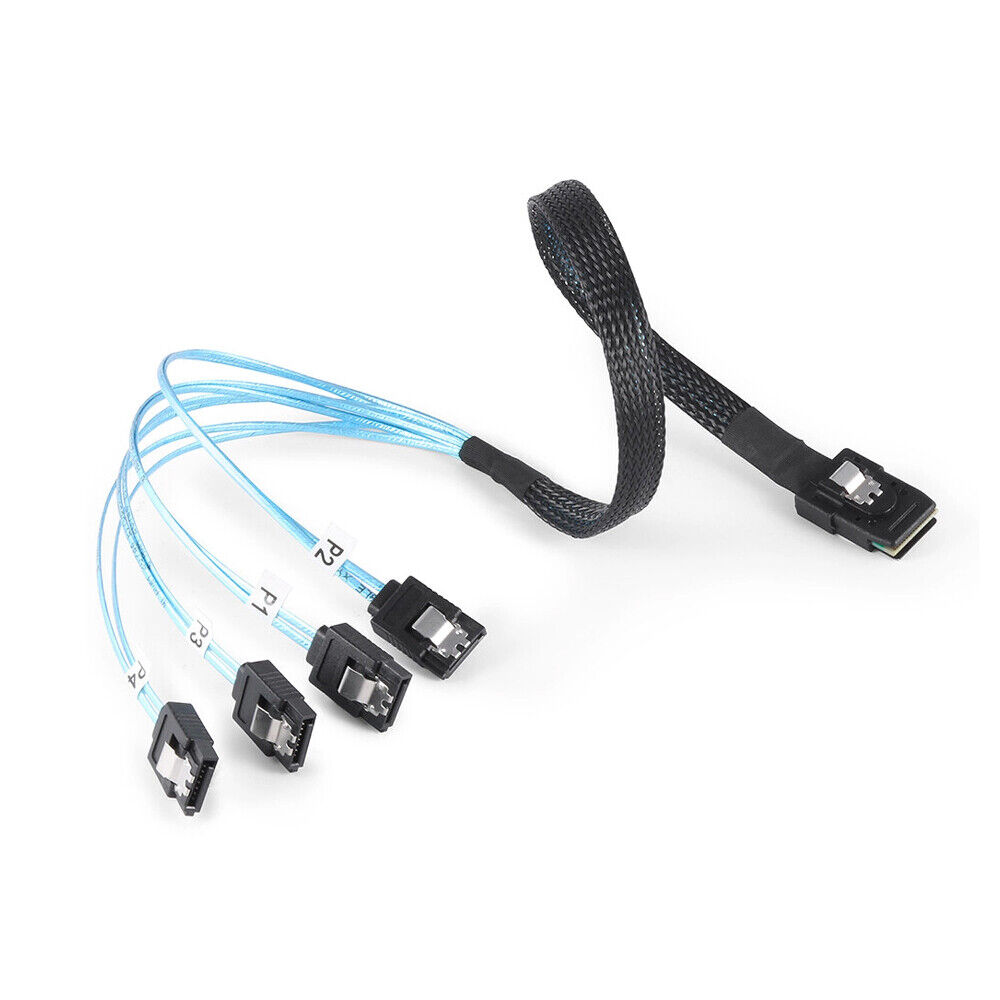

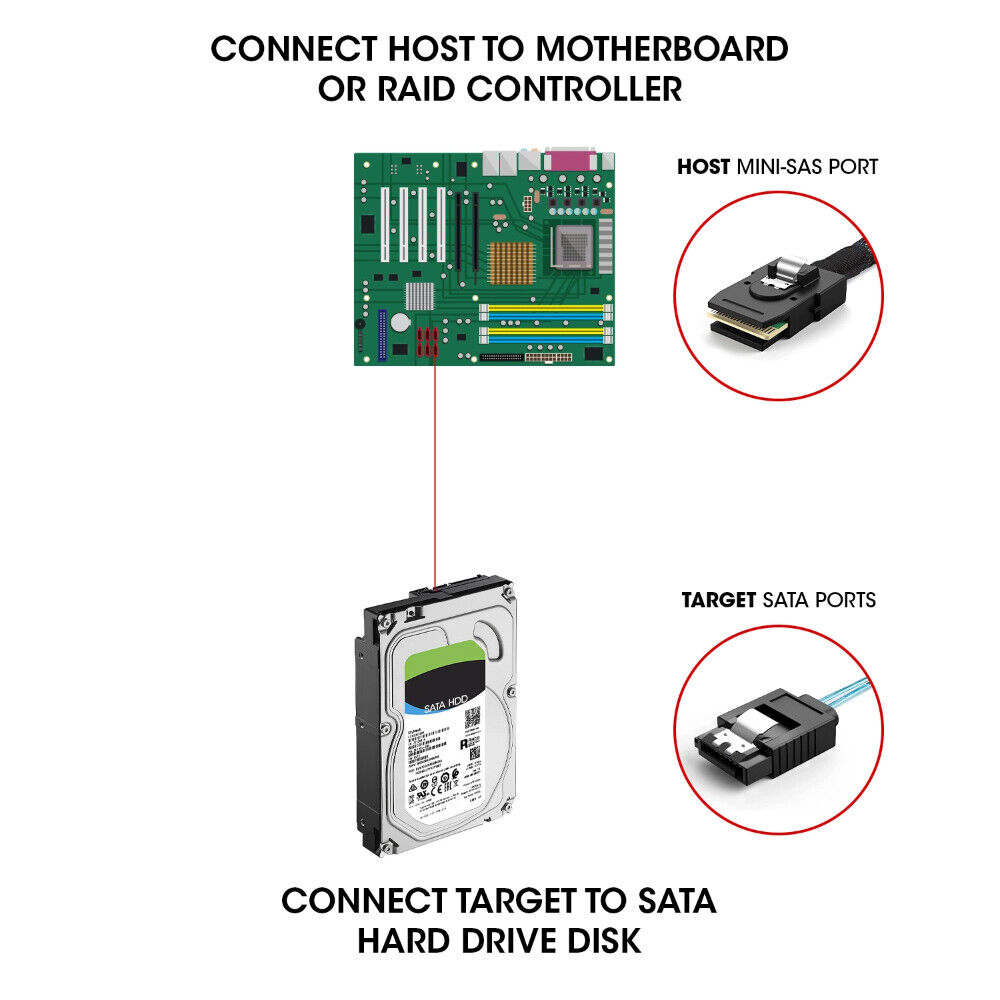

This 1/2 meter-long cable uses 30 AWG wires and is intended for internal use. It has a single 36-pin SFF-8087 male Mini-SAS plug (with a locking latch) on one end and four 7-pin SATA female plugs (with locking latches) on the other, allowing you to connect four SATA drives to a SAS controller. This is a forward breakout cable, meaning that it is intended to connect to a host/controller on the SAS end and drives on the SATA end.

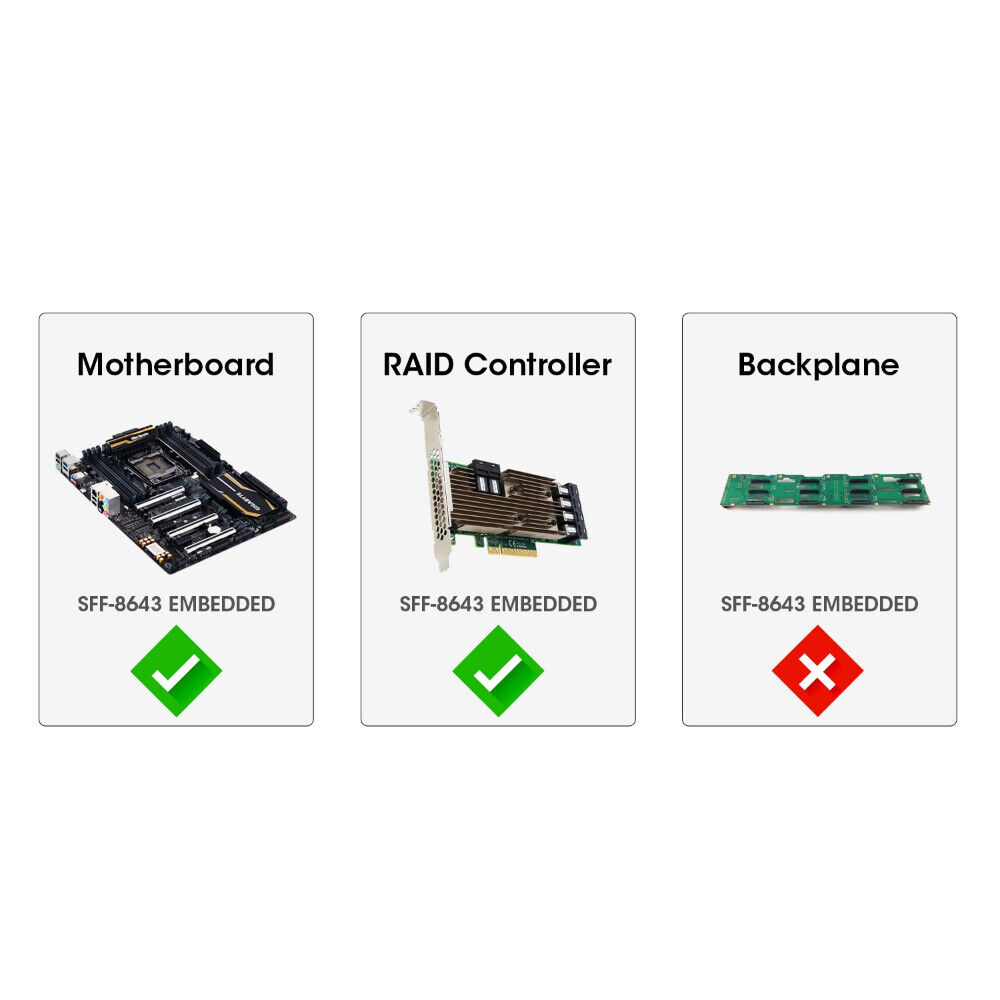

PLEASE NOTE Pair with a 4 port SATA to power splitter cable to provide power to the drives. Do not connect Mini SAS SFF-8087 to your backplane, otherwise, the SAS to SATA cable will not work with them. Data transfer speed is determined by the capabilities of your SAS controller and SATA drives.

Specifications:

  • Interface: SAS-2
  • Host Connector: 1 x 36-Pin Mini-SAS (SFF-8087) Male
  • Target Connectors: 4 x 7-Pin SATA Male with Latched
  • Data Transfer Speed: 6 Gb/s
  • Cable Length: 3.3 ft(1 m)
  • Wire Gauge: 30 AWG

    Specification

    Connector A : Mini SAS SFF-8087 Male
    Connector B : SATA Male
    Lenght : 3.3FT
    AWG (Gauge) :
    Features :
    Jacket :
    Warranty : Limited Lifetime
    What will you receive : 1x 3.3FT Mini SAS 36 Pin Male to 4x SATA 7Pin Female Cable
