Product Description

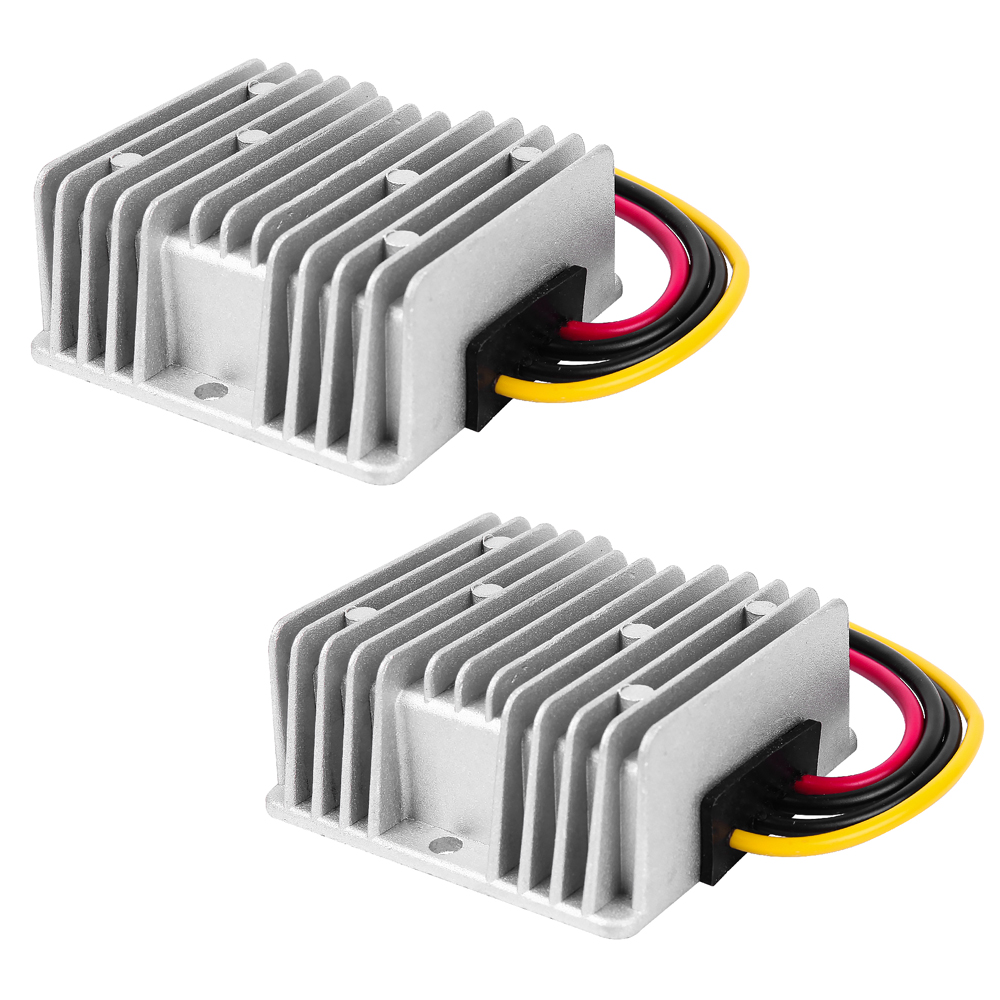

24V to 12V 10 AMP DC to DC STEP DOWN CONVERTER FOR GOLF CART, NON-ISOLATED
This converter can not be connected to solar panels or wind turbine directly.
This converter can not charge battery.
Please read the second picture attached before you buy
Wide input voltage from 18V to 35V
Stable output voltage is 12V
100% actual photos
100% full rated power
100% full stable output Current
100% burn-in test
100% actual photos
High efficiency
Waterproof sealed
Cooling by free air convection
Surface mountable
1 year warranty
Over current protection, Over voltage protection
Over temperature shutdown, Short circuit protection, Output reverse polarity protection
Specification
|
model |
input voltage range (Vdc) |
output voltage (Vdc) |
output current typ (A) |
output power max (W) |
ripple and noise typ (mVp-p) |
efficiency typ ( % ) |
|
B20-24-12 |
18-35 |
12 |
20 |
240 |
200 |
95 |
Dimension: 2.91*2.91*1.22 inch
Net Weight: 0.6 lb
Application
DC 48V Battery Glof carts and Vehicles
Note: This one can't be used in tele-communication, medical, aerospace and military.
If you need these request, please give us message.
Wiring Diagram
Note: the unit doesn't include fuses. Please connect fuses before connecting converter.
Never reverse the input polarity or it damages your fuses or converter.
