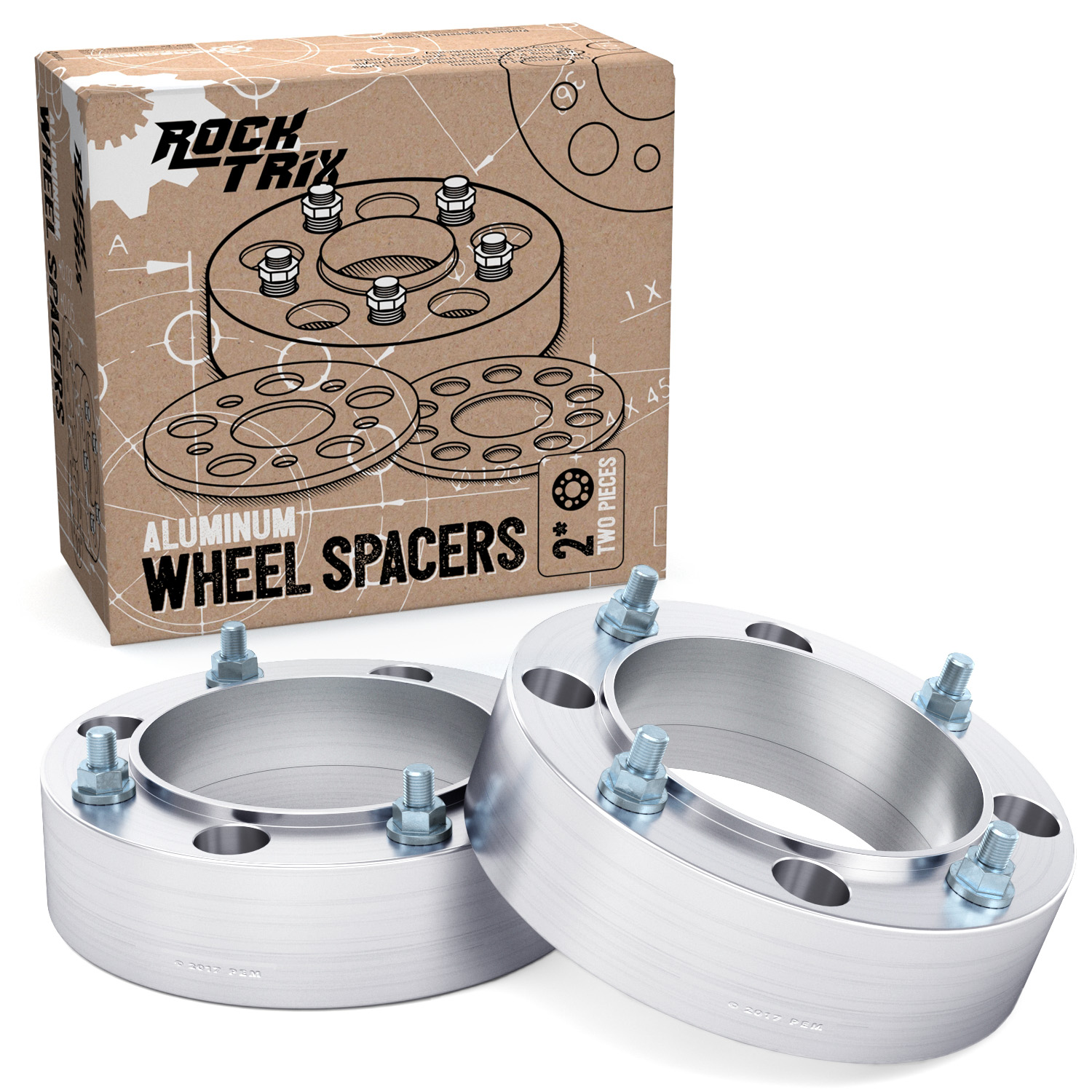

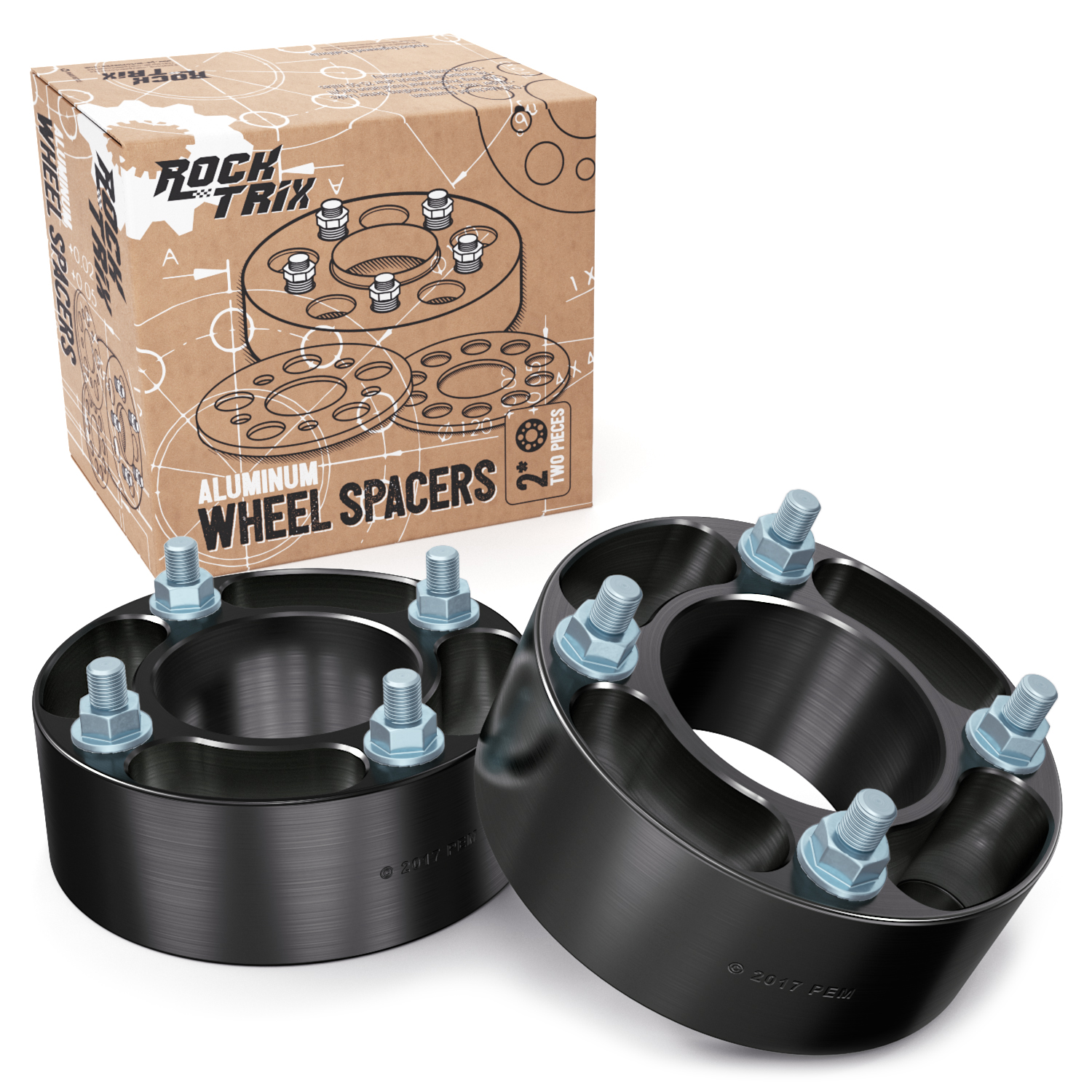

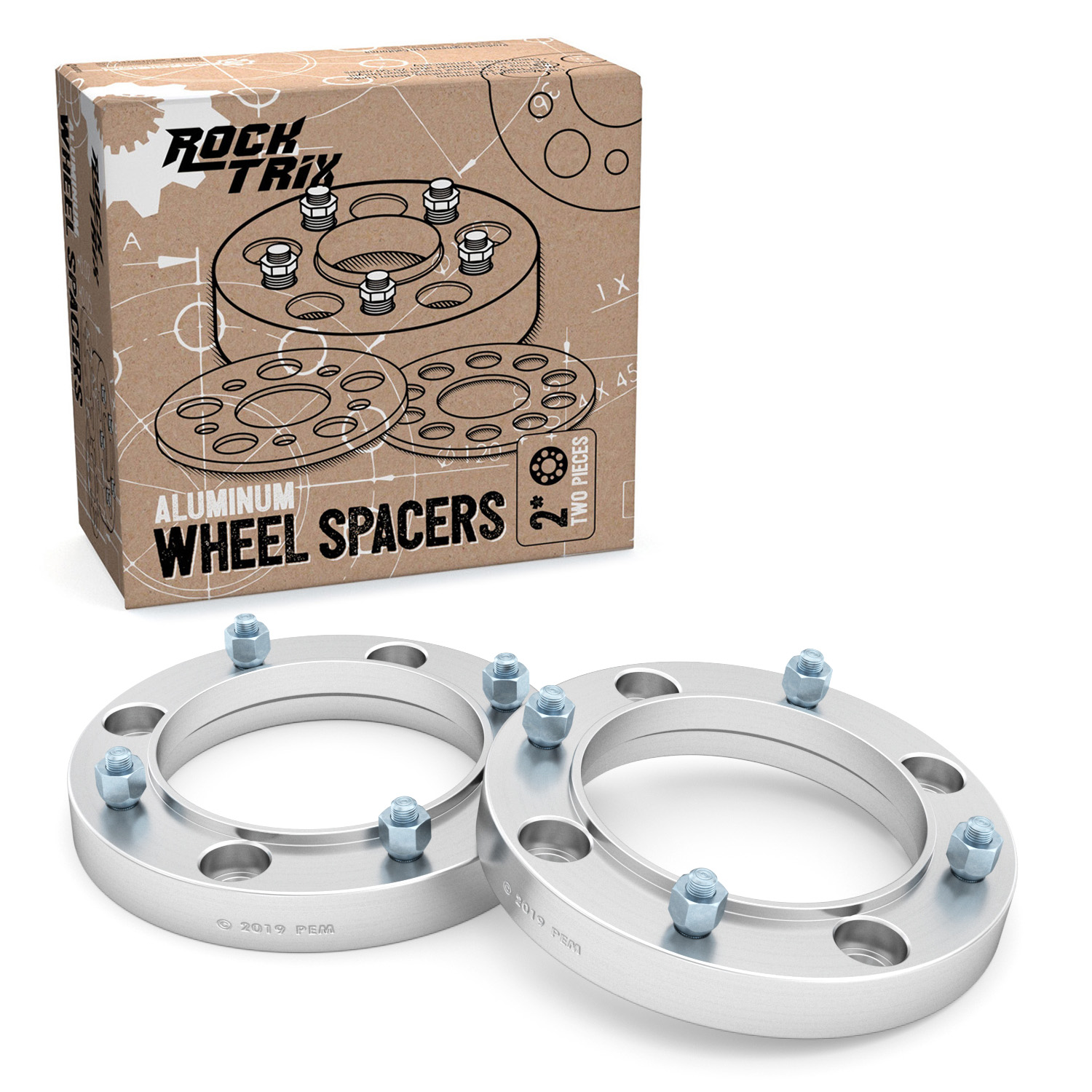

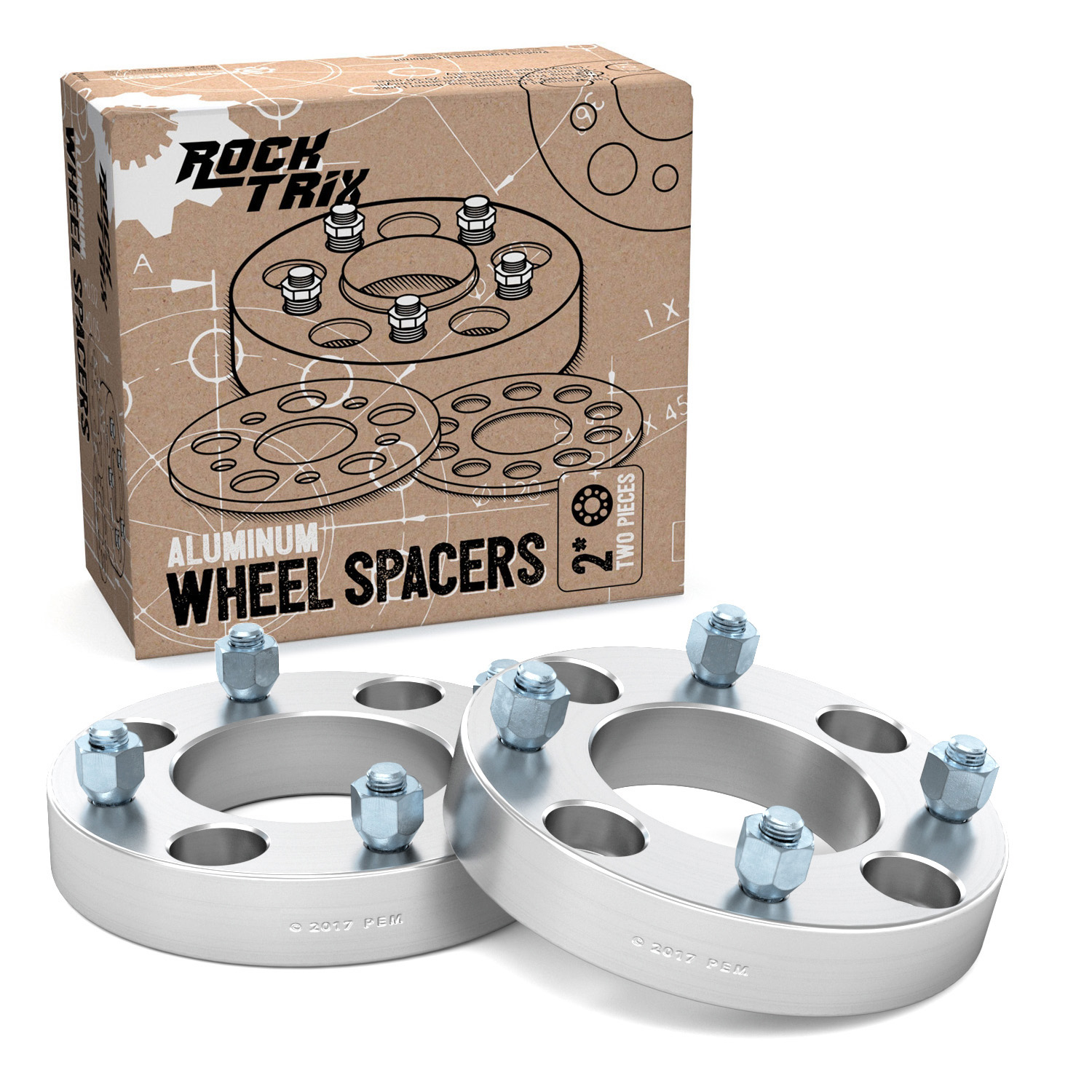

Aluminum ATV Wheel Spacers

Highlights

Widens the track for improved handling and improved safety.

Gives more inner fender & suspension clearance for installing wider wheels and/or larger tires.

Increases clearance to allow aftermarket suspension or larger brakes

Includes pre-installed wheel studs and lug nuts necessary to complete the installation.

Designed & Engineered in California, our products ship from Los Angeles, arriving at your door in 1-4 working days.

Manufacturing

Made from Aerospace Grade Aluminum

Manufactured using CNC lathes & mills to exacting, tight tolerances

Item Condition Information
The item is in perfect working condition (will work as well as a new item). The item has noticeable blemishes (marks/scuffs/scratches/nicks). The blemishes come from either warehouse mishandling, shipping & handling, or installation/test fitting. Items have been carefully inspected and verified that it will not affect usage/performance.

Important Note About Pictures
Please note that the pictures depicts a "new" product and will not be the actual item you will receive. If you have any questions or concerns, please message us.

Quantity	Two (2) Spacers (8 Lug Nuts Included)
Thickness Per Spacer	1.25" (32mm)
Centerbore	110mm
Bolt Pattern	4x137
Material	T6 Aerospace Grade Aluminum
Stud/Nut Thread Size	10x1.25
Stud Grade	Metric Grade 10.9

(Click Corresponding tab below for Fitment & Shipping Information)

Important Notes

FINAL SALE ITEM - Cannot be returned/exchanged. It is extremely important for you to double check fitment and the notes below before purchasing.

Important Safety Advisory

As with any component you purchase for your vehicle, installation should be done by a qualified technician. We've provided the following information as a general
reference for purchasing and installing these spacers/adapters. The following list isn't all-inclusive and may be different depending on the vehicle you drive,
type of wheels you have, and ideal setup you're trying to achieve. Failure to install properly may cause your lug nuts/wheel studs/spacers to loosen or break while
driving. If you are not confident or familiar with the installation, please ask a trained professional for help.

Before Purchasing

- Measure your wheel gap for clearance. You will need at least 1.25" (32mm) of clearance to prevent the wheel/tire from hitting the fender or fenderliner.

- The vehicle’s wheel studs need to be measured. If the studs are longer than 1.25" (32mm), it will extend past the spacer's surface. It may not be possible to bolt the wheel safely onto the spacer, depending on whether your wheels have pockets/cavities around the mounting pad.

- If your vehicle does not have 10x1.25 threaded wheel studs, you would need to purchase the correct threaded lug nuts for proper installation.

Before Installation

Check compatibility of spacer-to-hub, spacer-to-wheel, and lug nuts (thread pitch & seat type)

During Installation

- Installation should be performed by a trained professional using proper tools.

- Avoid using an impact wrench or any pneumatic tools; improper usage may cause damage to components.

- Ensure proper thread engagement. Typically, its a minimum of 5-8 turns before the lug nut tightens, however, it varies depending on thread pitch and type of vehicle.

- ALL Lug nuts MUST be torqued to manufacture specifications.

After Installation

- Test drive your vehicle to ensure the hardware is installed properly. Pay close attention for any noises, vibrations, or compatibility issues (such as fender rubbing).

- Inspect and re-torque ALL lug nuts after 25-50 miles of driving. This requires you to take off the wheels to tighten the lug nuts holding the spacers to your vehicle.

Fitment Information


	Kawasaki

1985-2005 Bayou 300

1993-2005 Bayou 400 (4WD / 4x4 Only)

2003-2014 Brute Force 650 (4WD / 4x4 Only)

1991-1996 Mule 500

2000-2003 Mule 520

1997-2001 Mule 550

2003-2014 Mule 550

2005-2016 Mule 600

2005-2016 Mule 610

1999-2005 Prairie 300

2003-2012 Prairie 360

1997-2005 Prairie 400

2002-2006 Prairie 650 (4WD / 4x4 Only)

2002-2006 Prairie 700 (4WD / 4x4 Only)


Bombardier

2003-2010 Outlander 330

2003-2016 Outlander 400


Can-Am

2011-2016 Commander 1000

2011-2016 Commander 800

2011-2019 Commander 800R

2013-2016 Maverick 1000

2003-2016 Outlander 400

2007-2016 Outlander 500

2006-2016 Outlander 650

2006-2016 Outlander 800

2009-2015 Outlander 800R

2007-2013 Renegade 500

2007-2013 Renegade 800

2009-2015 Renegade 800R



	For our spacers with a lip, your wheel centerbore must be equal to or larger than 110mm


	Some ATVs requires different bolt pattern front and rear spacers, please carefully read the above fitment guide


	Don't see your ATV above? Message us with the year/make/model of your ATV and we'll be glad to find a compatible spacer

Shipping Information



	 See eBay's "Shipping and Payments" tab for shipping cost and estimated delivery time.



	 Local Pick up / Will Calls - Not Available



	 NOTE for International Customers: Buyer is responsible for any import taxes and/or customs charges for the item. The amount may vary from country to country.
