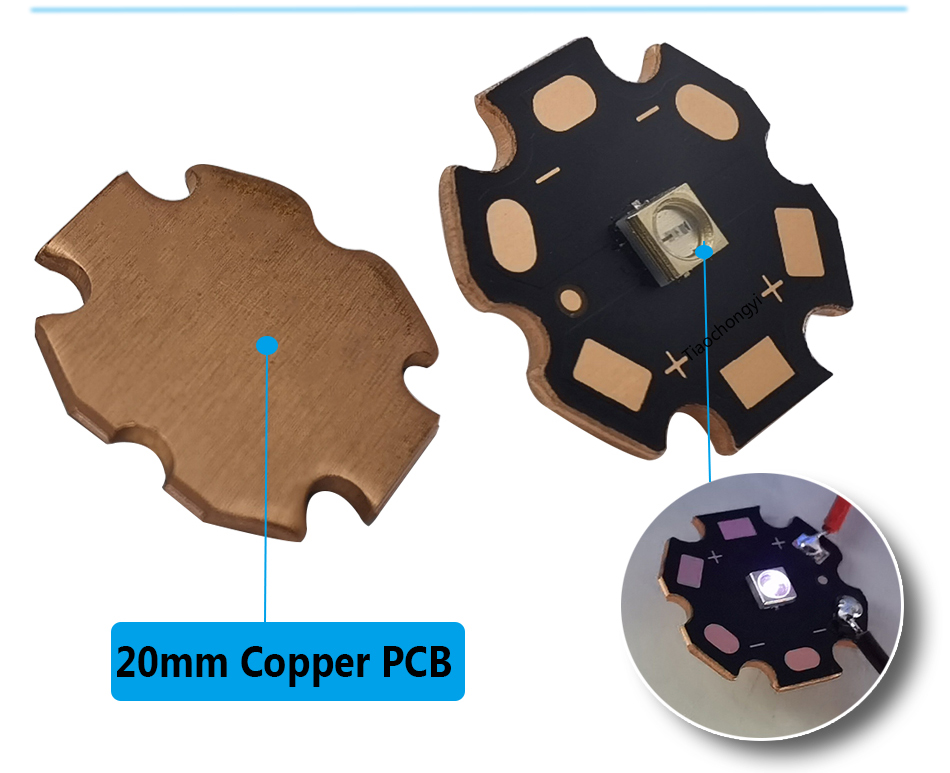

290nm 325nm 340nm UVB LED 3838 5-7V 1W 2W Ultra Violet LED Lamp with Copper PCB

Slide
$6.6
LED POWR
0.1W 290nm
Beam angle .
60 degree
Qty
1PCS
Brand
Unbranded
Brightness
100 cd/m²
Configuration
Single
Country/Region of Manufacture
China
LED Color
Ultraviolet
Lens Shape
Round
Lens Surface
Color Transparent
Nominal Current Rating
150 mA
Nominal Voltage
5.5 V
Number of LEDs
1
Number of Pins
2
Type
Single Color LED
Viewing Angle
60°
Wavelength
325nm
condition
New
DESCRIPTION

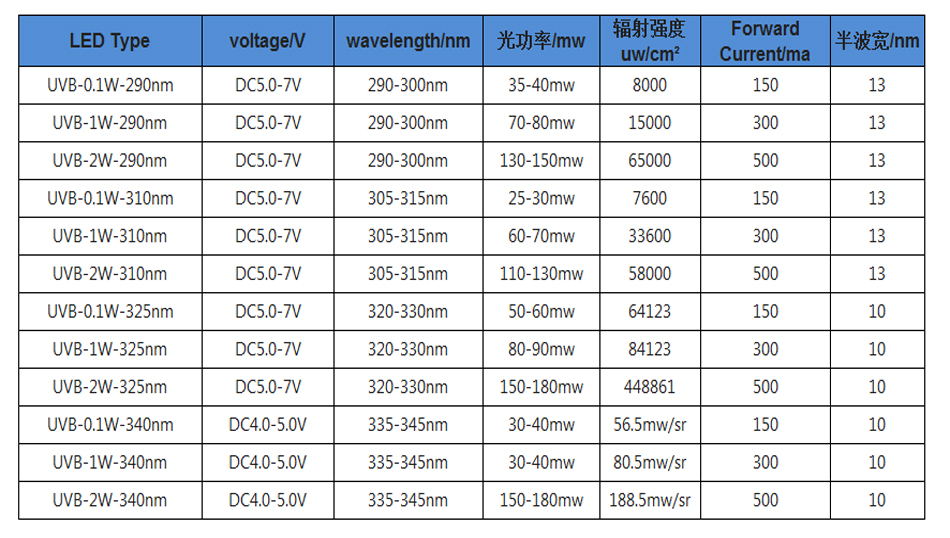

Technical Parameters of Item
Forward Current: 0.1W;1W;2W
Emitting color:  290nm/310nm/325nm/340nm

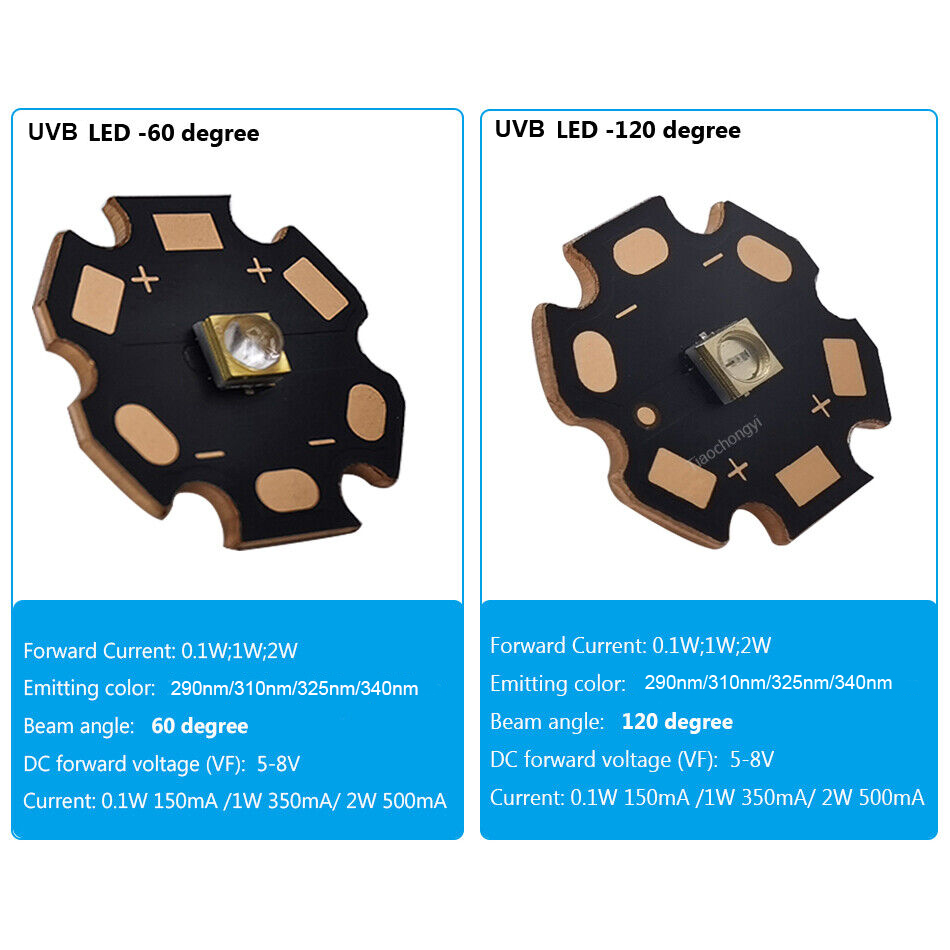

Beam angle: 120 degree/ 60 degree
DC forward voltage (VF):  DC5-7V
Forward Current: 0.1W 150mA /1W 350mA/ 2W 500mA
Life Span: 50,000 Hours

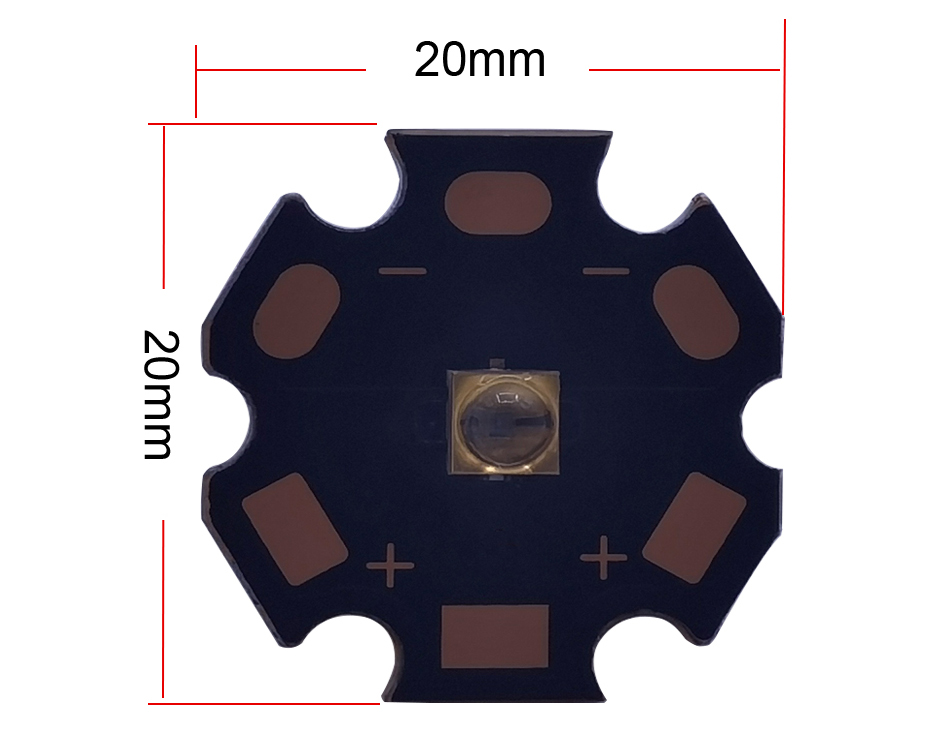

size: 3.8*3.8*2.9m /3.5*3.5*1.5mm

Notes for UVC-LED 250nm -260nm

a. Do not touch the LED, or will affect the normal light-emitting devices
b. Power devices must confirm the positive and negative, reversing polarity may damage the device
c. Strictly operate in accordance with electrical parameters, too high voltage may damage the device
d. UVC-LED status should be avoided close observation with the naked eye..
