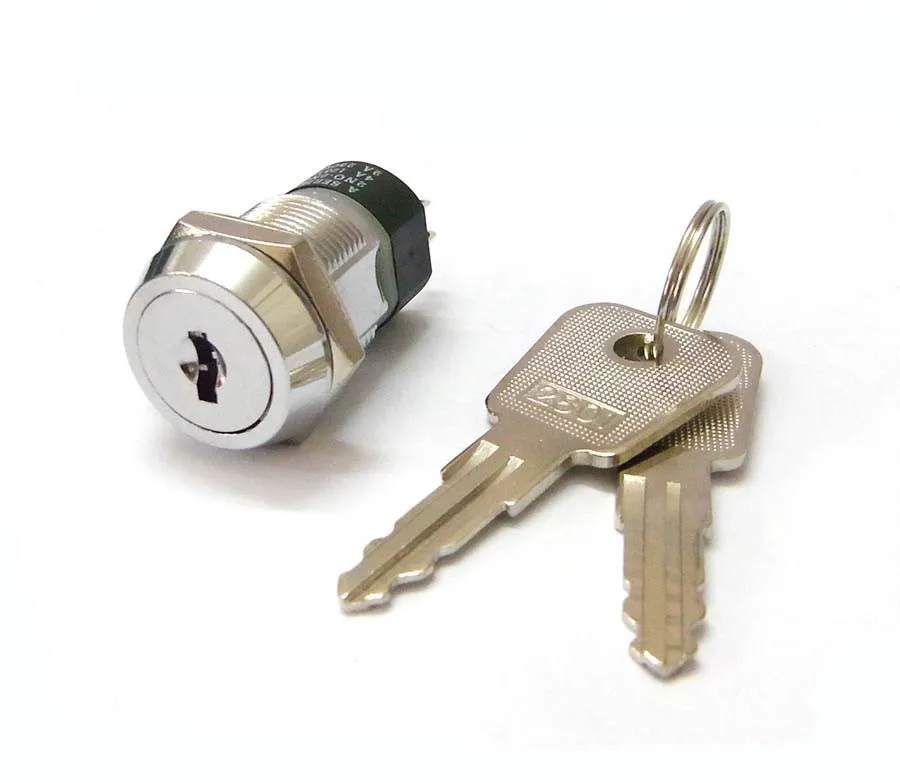

2803 elevator parts of power lock 4 Terminal Key Switch Lock electrical key switch elevator/Lift switch lock 1 key pull 1 pc

1. Type: Flat Key Switch Lock
2. Material: Zinc Alloy Housing and Cylinder
3. Surface Treatment: Bright Nickel Plated
4. Measure: M19*L26.6MM
5. Mechanism: 2803 key number,

1 key pull : Key can be removed in 1 position,
2 key pull : Key can be removed in 2 position,

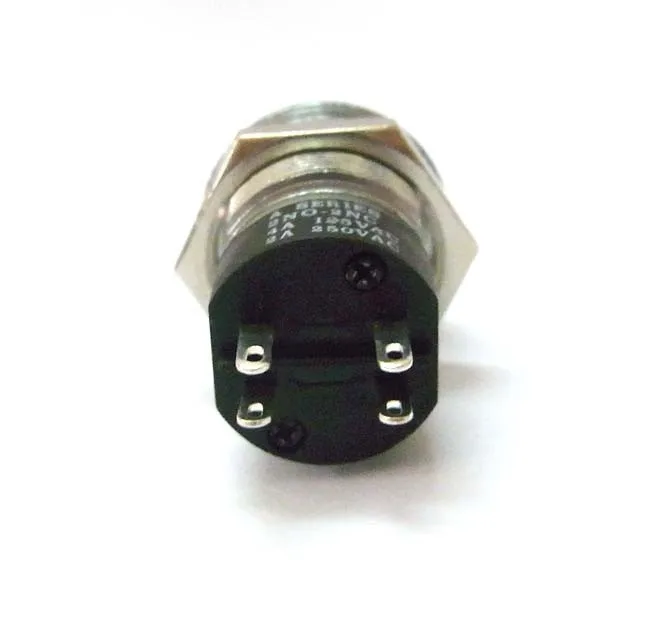

1NO1NC :  it has 2 group terminals,when you turn lock on OFF or ON position, there is always one group will ON, another group will OFF.

 2NO2NC: it has 2 group terminals(2pcs terminals in one group), when you turn lock on OFF, 2 group terminals will be all OFF, when turn key to ON position, 2 group terminals will all ON.

6. Key Specs: 2 pcs key per lock
7. Key type: Key Aliked, key number 2803
( Please advise key type when you place order. Thanks)



Our Manufactory Established in 2001, specializes in developing, manufacturing, marketing of high quality various locks and hardware. We provide cam locks, vending machine locks, locker locks, cabinet locks, lock cylinders, switch lock, furniture lock, luggage combination lock, heavy duty pad locks, computer locks, hinges and different hardware parts. The superior benefits offered by our company make our products ideally meet the most demands.



Our Company covers an area of 3,000 square meters and has about 200 employees. With strong technical force and advanced equipment, our products have a good reputation both at home and abroad.



We combine developing, designing, producing with marketing in one, so we can offer products with good quality at competitive prices in a high speed. At the same time, we adhere to the principle of "success by high quality and excellent service to all clients". We have been making considerable efforts on continuous control of our quality system.



Quality first and treat the customers as supremacy





1) Leading professional manufacturer of locks inChina

2) High security and top quality

3) OEM&ODM ,small order available

4)Sucessful solution design various of lock













Our Locks Use for
