26.5 GHz, 33.0 GHz Low Loss 2.92mm Male Straight Plug Connector ( 2 Pcs )

for Micro-Coax Utiflex UFA210B and UFA210A Cable

for MFL265ST (: UFA210B Type ) and MFL265SD (: UFA210A Type ) Cable .....

based on Excellent VSWR and Insertion Loss Performance ~ 26.5 GHz

..............................................................................................................................................

Matching Cable is Phase Stable & Low Loss " MFL265ST (: UFA210B Type ) " Cable ~ 26.5 GHz, ~ 33.0 GHz

( Now, ebay is selling " MFL265ST cable " at the following ebay store. )

" MFL265ST " is the cable for replacement of the following cables.

Micro-Coax Utiflex UFA210B, Rosenberger RTK 162

Huber+Suhner ( Sucoflex 104P ), IW Microwave 1806

Teledyne Storm Microwave ( DURATEST 921, TRUE BLUE 205 )

Maury Microwave ( SC-35 )

Times Microwave Systems ( SilverLine Type VNA Test Cable for 26.5 GHz ) .....

..............................................................................................................................................

Matching Cable is Phase Stable & Low Loss " MFL265SD (: UFA210A Type ) " Cable ~ 26.5 GHz, ~ 33.0 GHz

( Now, ebay is selling " MFL265SD cable " at the following ebay store. )

" MFL265SD " is the cable for replacement of the following cables.

Micro-Coax Utiflex UFA210A, Rosenberger RTK 162

Huber+Suhner ( Sucoflex 104 ) , IW Microwave 1801, Semflex HP190

Teledyne Storm Microwave ( DURATEST 921, TRUE BLUE 205 )

Maury Microwave ( SC-35 )

Times Microwave Systems ( SilverLine VNA Test Cable for 26.5 GHz )

Times Microwave Systems ( SFT-205 ) ....

2.92mm is compatible with SMA and 3.5mm Connectors.

Composition of 2.92mm Male Connector

Frequency	DC ~ 40.0 GHz
Impedance	50 Ohm
V.S.W.R	Max. ≤ 1.15 ~ 33.0 GHz
Impedance	50 Ohm
Body	Stainless Steel / Gold Plating ( Nickel Under Plated )
Center Contact	Beryllium Copper / Gold Plating ( Nickel Under Plated )
Insulator	PEI
Coupling Nut	Stainless Steel 303 / Passivated

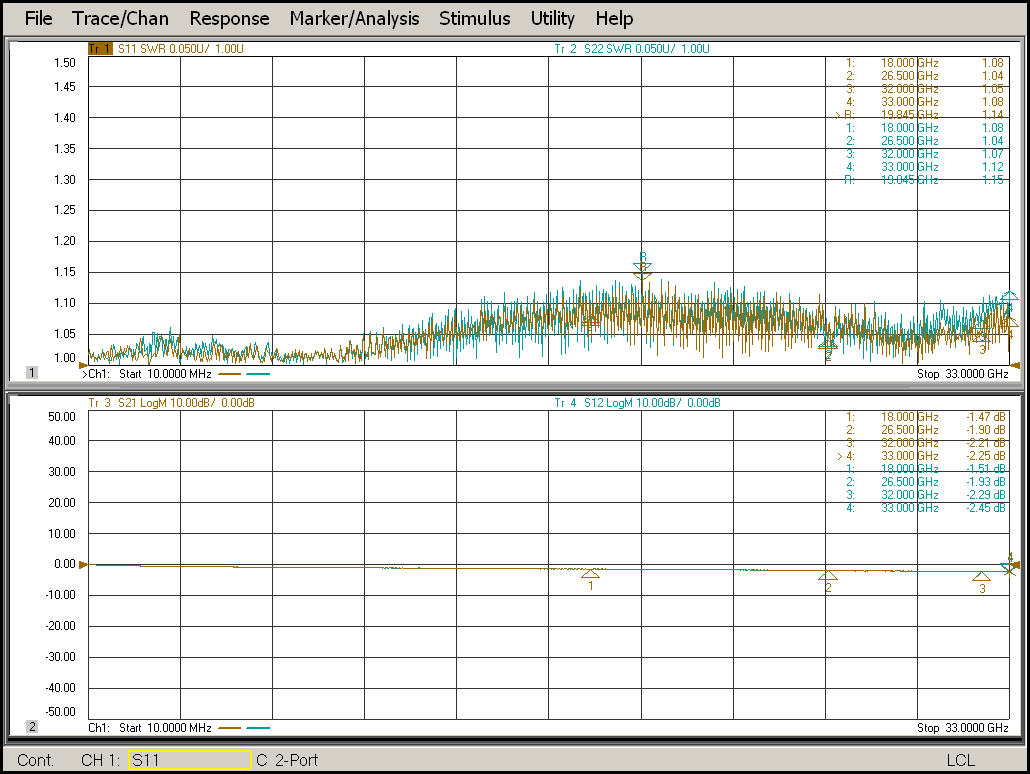

MFL265ST 2.92mm Male to 2.92mm Male Assembly ~ 33.0 GHz

( 1.0 Meter )

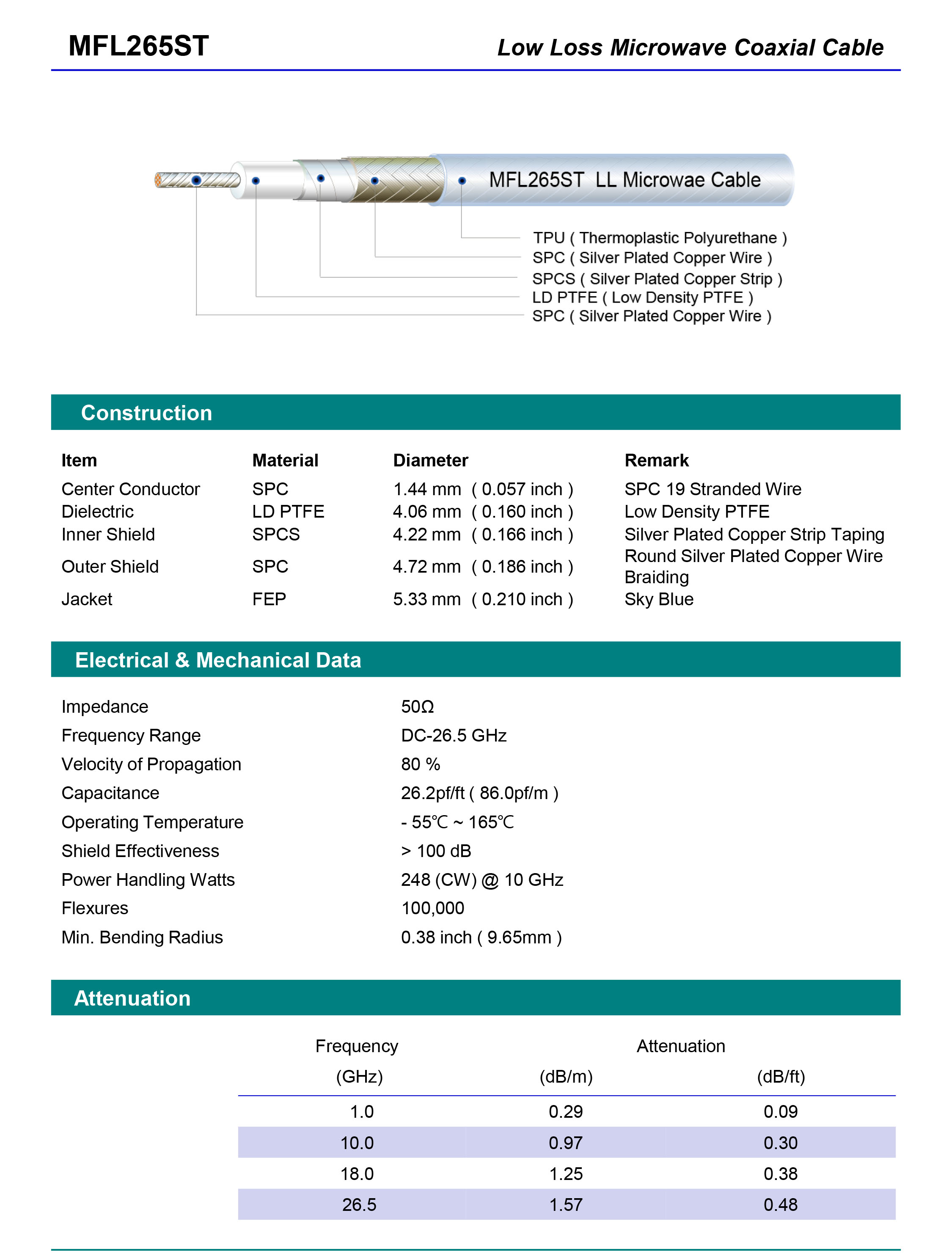

Composition of MFL265ST (: UFA210B Type ) Microwave Cable

Class of Cable	LD PTFE Dielectric Coaxial Cable
Cable Part Name	MFL265ST
Flex Ability	Flexible
Impedance	50 Ohm
Center Conductor Type	Silver Plated 19 Stranded Copper Wire
Dielectric Type	MicroPorous PTFE
Velocity of Propagation	80 %
Shield Type and No. of Shield Layer	Silver Plated Copper Strip Taping & Round Wire Braid Double Shield Layer
Jacket Diameter	5.33 mm ( 0.210 inch )
Jacket Material	FEP
Max. Frequency	26.5 GHz
Operating Temperature	- 55℃ ~ 165℃

Composition of MFL265SD (: UFA210A Type ) Microwave Cable

Class of Cable	LD PTFE Dielectric Coaxial Cable
Cable Part Name	MFL265SD
Flex Ability	Flexible
Impedance	50 Ohm
Center Conductor Type	Silver Plated Solid Copper Wire
Dielectric Type	MicroPorous PTFE
Velocity of Propagation	80 %
Shield Type and No. of Shield Layer	Silver Plated Copper Strip Taping & Round Wire Braid Double Shield Layer
Jacket Diameter	5.33 mm ( 0.210 inch )
Jacket Material	FEP
Max. Frequency	26.5 GHz
Operating Temperature	- 55℃ ~ 165℃

MIL-C-17

26.5GHz, 33GHz 2.92mm Male Connector for UFA210B & UFA210A Cable ( 2 Pcs )
