2 * Air Brake Chamber 30/30 Long Stroke 3" 76mm Replaces GC3030LR NT3030ELS80
Application：
For Haldex GC3030LR
For Midland MBI GC3030LR
OE/Part number：
GC3030LR, TR3030CLS, NT3030ELS80, NT3030ELS99, GC3030L, LC3030L
Specification：
Condition: New
Actuator Type Size: 3030
Stroke Type: Long
Available Stroke: 3", 76mm
Length from mounting bracket to the end of Spring Housing: 9-7/8", 251mm
Length of Piggyback: 7-3/8", 187mm
Dimension at rolled Spring Housing flange: 8-5/16", 211mm
Dimension at Service Clampband: 10-3/16"
Pushrod Length from the face of Service Housing: 14"
Weight: 21.8 lbs. , 9.9 kg.
Package Quantity: 1
Packaging Type: Box
Fitment Type: Direct Replacement
Feature:
- High-Quality Torque Long Stroke Air Brake Chamber Type 3030
- Superior Power Spring Technology; Advanced powder coating process; Resists corrosion and fatigue
- Double O-ring Center seal; Two o-rings for positive sealing and plastic bearings for long life
- World Class Diaphragm; High-quality rubber compound, resistant to heat and cold
- Rugged Service Housing; 9 gauge steel, powder-coated
- Self-piloting Dust Shield
- Sizes to fit all drum brake applications
Package Includes:

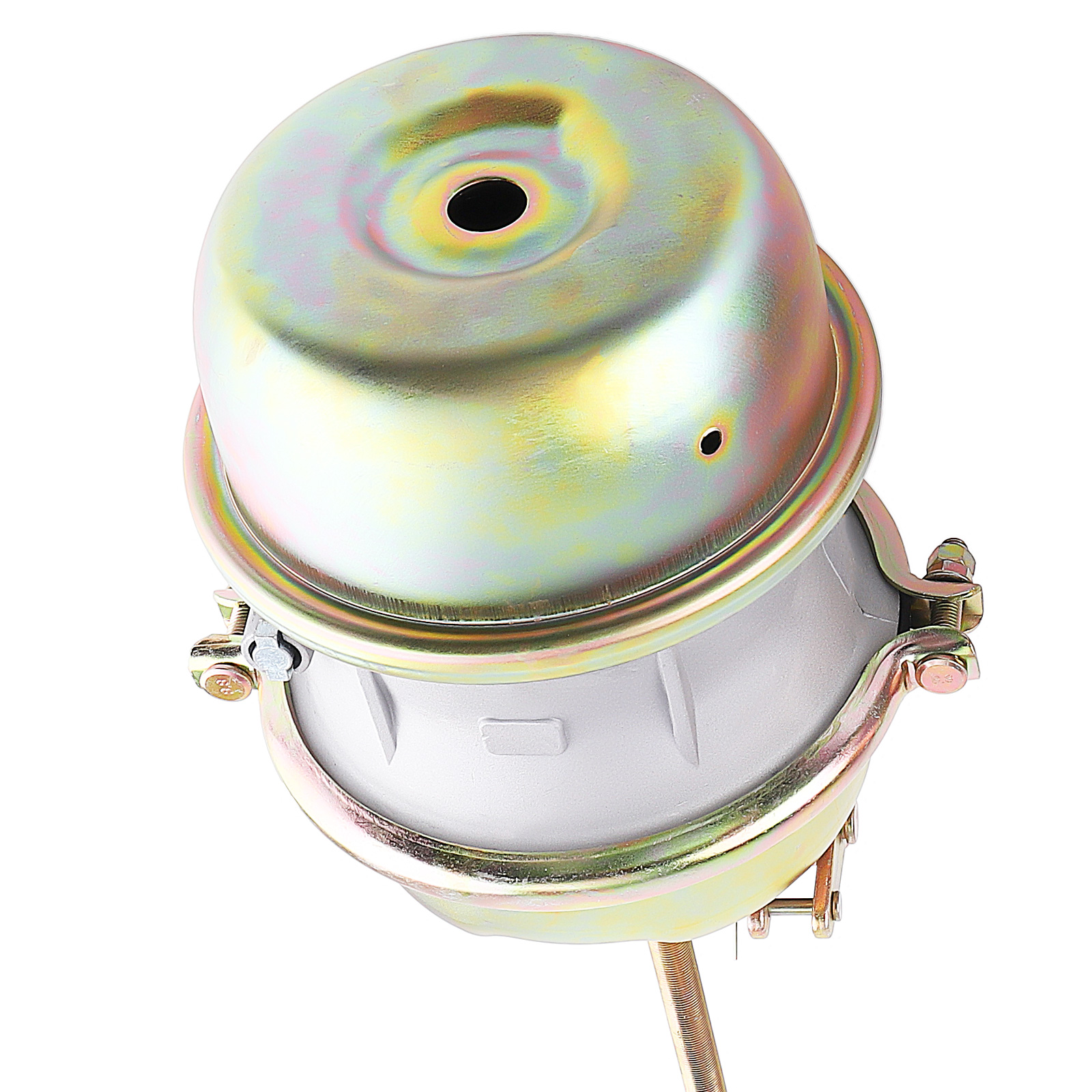

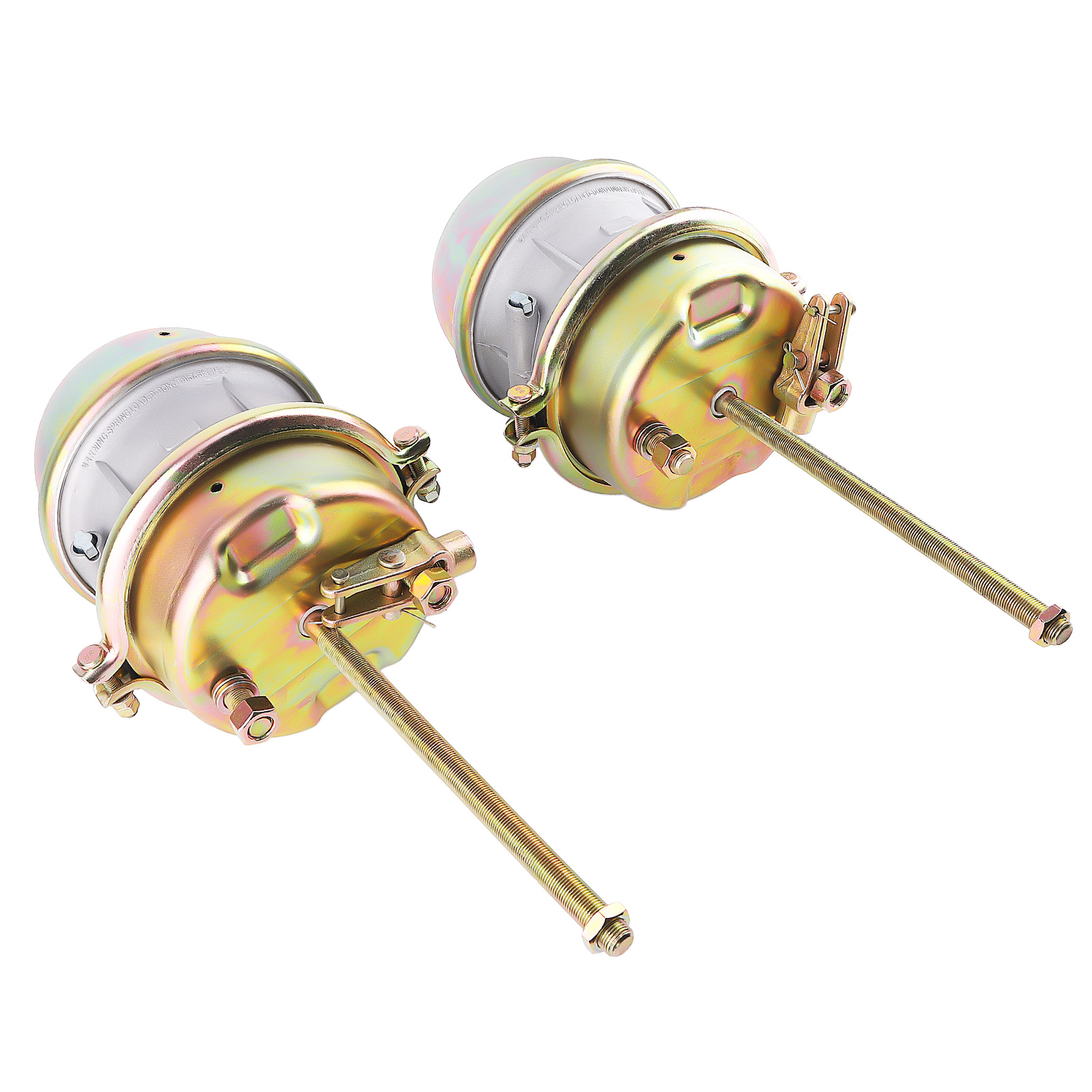

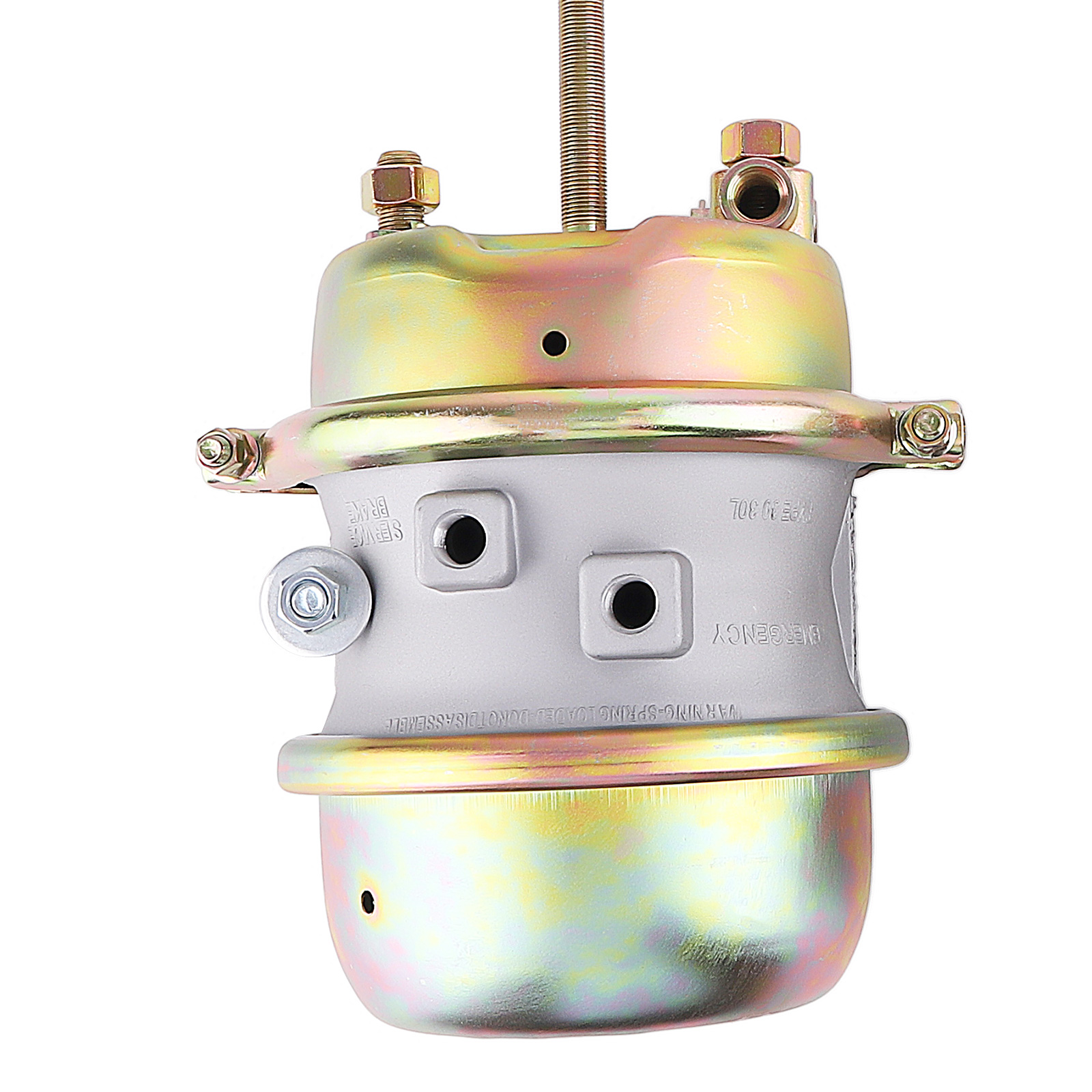

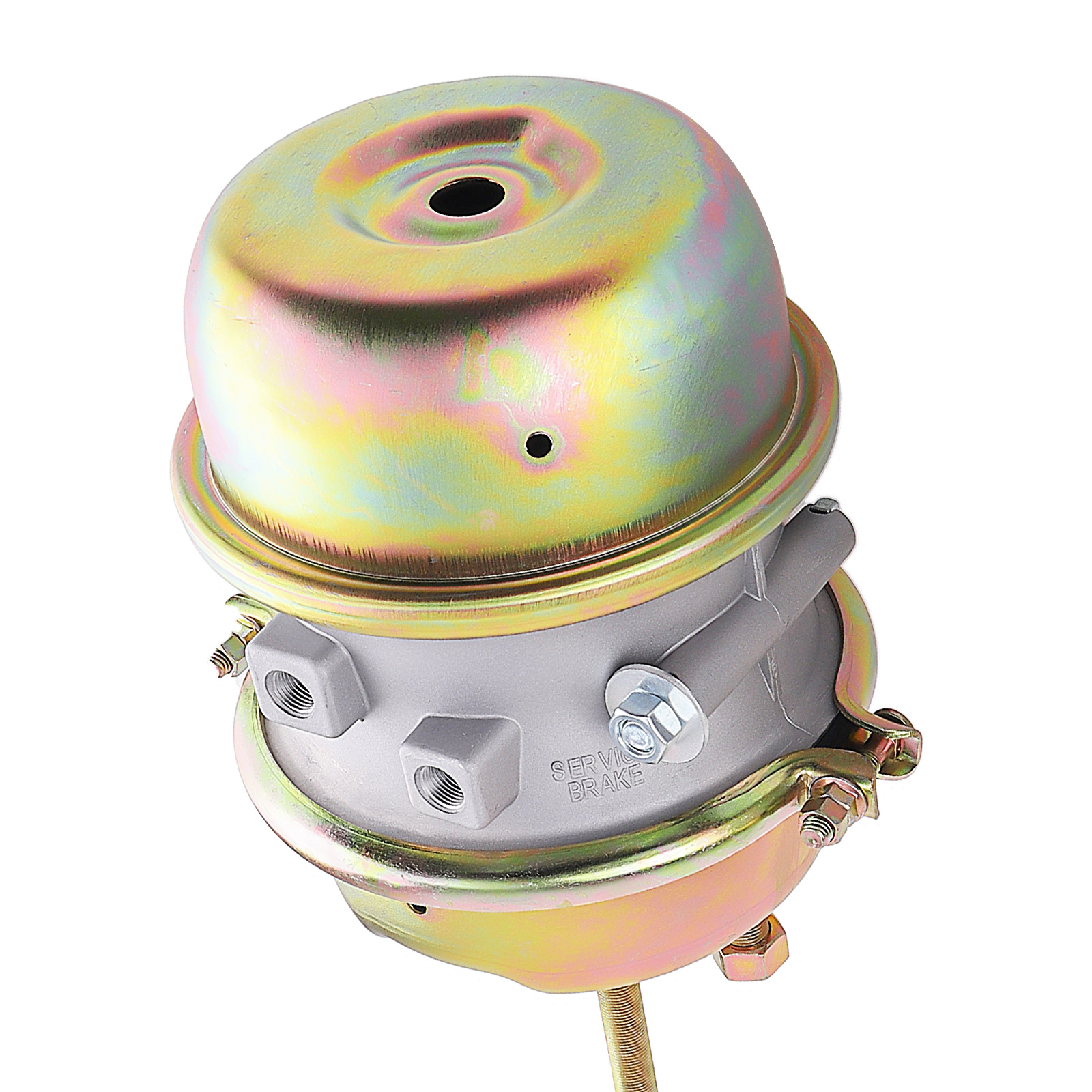

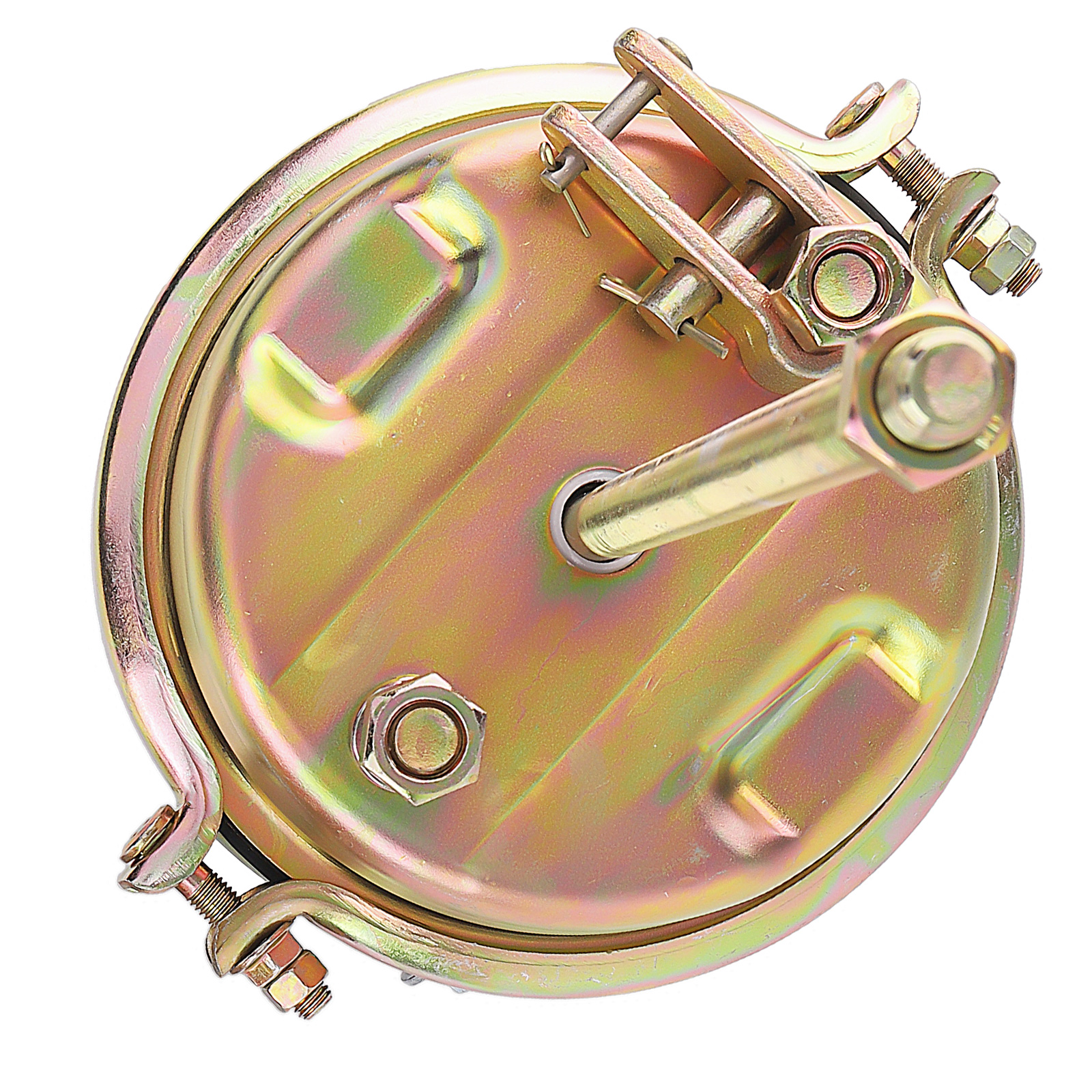

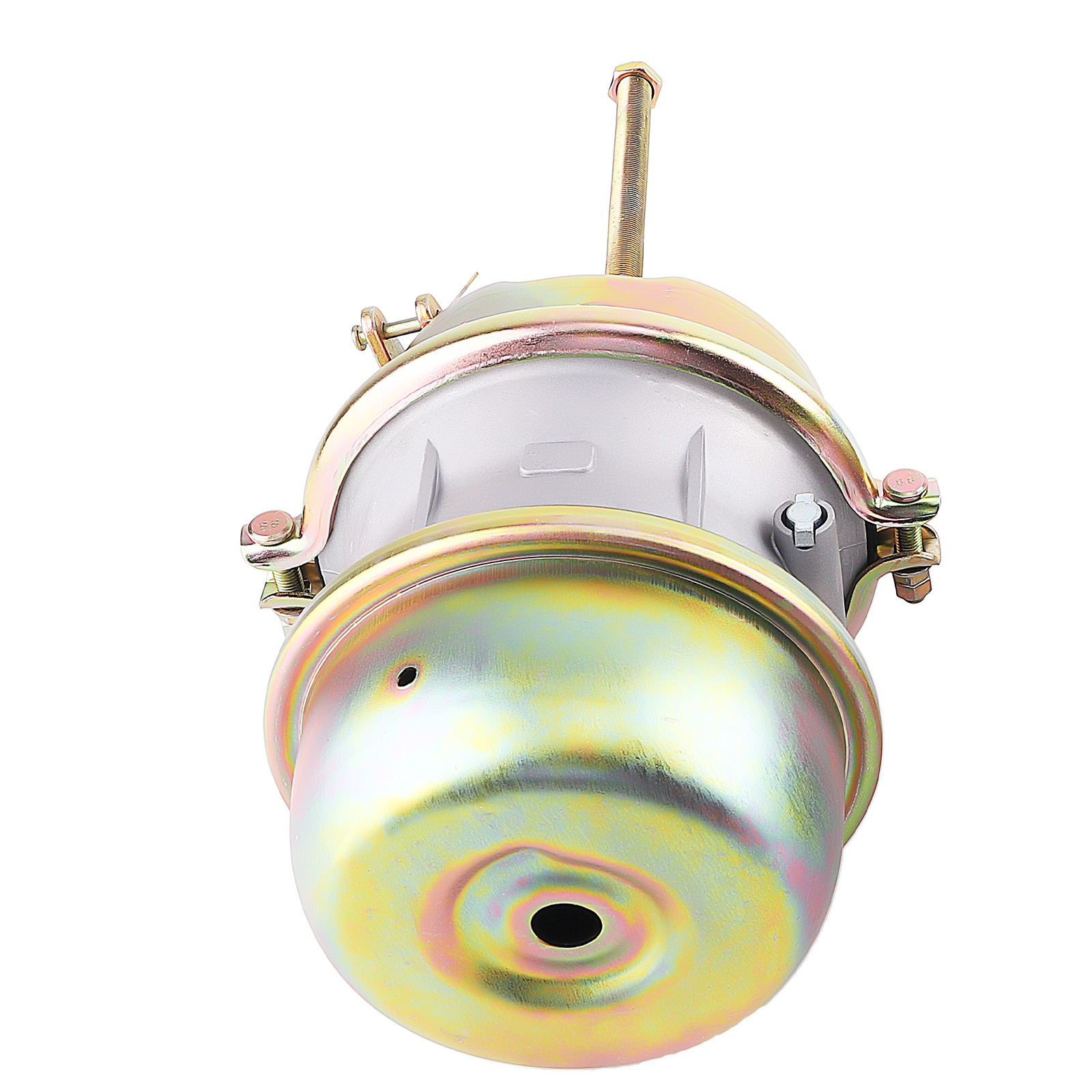

2 x Air Brake Chamber (Showing as the picture)
Note：
●Please confirm your vehicle condition and OE number before placing an order!
●Please note that this is an after-sales part, not an original part.
●We suggest that you seek professional installation to avoid unnecessary trouble.
●If you have any questions, please contact us.
