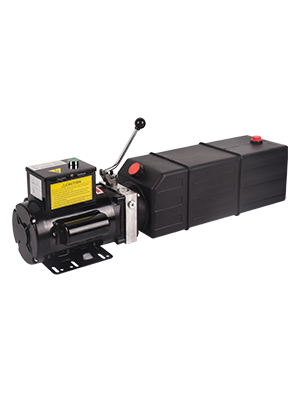

16 Quart Hydraulic Pump 4 Gallon Single Acting 2850rpm Electric Pump 2HP

Slide Slide Slide Slide Slide Slide Slide Slide
$277.98
Mounting
Vertical Mounting
Brand
DOPPY
Running Amperage
18A, 230V
Max. Relief Valve Setting
2950psi
Pump Action
Single Acting
Power Source
Electric
Rated Speed
2850 rpm
Horsepower
2Hp
UPC
Dose not apply
MPN
DALD0071C0008
Tank Material
Plastic
Power
2.2KW 220V AC
Reservoir Capacity
16 Quart 4 Gal
condition
New

Reliable Material - The oil tank is durable as it is made of sturdy plastic. As a power unit, this is a perfect replacement pump for remote hydraulic systems. The relief valve ensures safety.
Power - Our hydraulic pump is designed with a 2.2KW 220V motor & a 16 Quart 4 Gal reservoir. The max relief pressure is 2950PSI, it is a single-acting pump for vehicle lift & gravity down.
Easy to Install - This hydraulic power unit has been fully assembled. The wiring is simple and comes with operating instructions. Extra connectors are offered for replacement.
Quick Start - With powerful motor, this hydraulic electric pump is quick to start and quick to output oil, it can provide strong power for car lift and is able to complete lifting in a short time.
Multifunctional Use - Doppy hydraulic power units are widely used for car lifts & many lifting platforms. It is compatible with dump trailers & movers. A direct replacement for hydraulic systems.



Quick Start

With powerful motor, this hydraulic electric pump is quick to start and quick to output oil, it can provide strong power for car lift and is able to complete lifting in a short time.

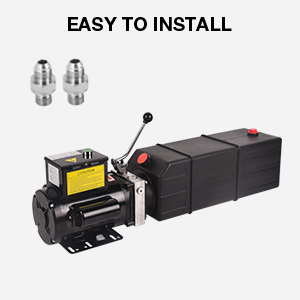

Easy to Install

This hydraulic power unit has been fully assembled. The wiring is simple and comes with operating instructions. Extra connectors are offered for replacement.



Strong Power

This hydraulic pump is designed with a 220VAC 2.2kw power motor and a 16 Quart metal reservoir. The max relief pressure is 2950 PSI.





16 Quart Hydraulic Power Unit

Hydraulic power units are widely used for car lifts & many lifting platforms

The 4.0 gallon plastic reservoir measures 19-1/2"" overall length from the neck to the bottom and is 7"" x 7-1/2"" around.Overall length of the power units is 31-1/2"" in length. Shipping weight 52 pounds. Vertical Fitting included (will fit most lifts) Universal Mounting Bracket included (will fit most lifts) Attachment Hardware and other hydraulic systems. Load holding on all ports.It is convenient to operate with safety assured, long life, and sturdy body.

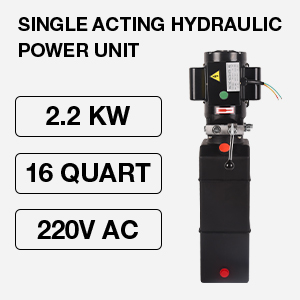

Specifications

Horsepower: 2Hp
Power: 2.2KW 220V AC
Tank Material: Plastic
Max. Relief Valve Setting: 2950psi
Running Amperage: 18A@230V
Rated Speed: 2850 rpm

Package Includes:

1x Hydraulic Pump
