Key Features

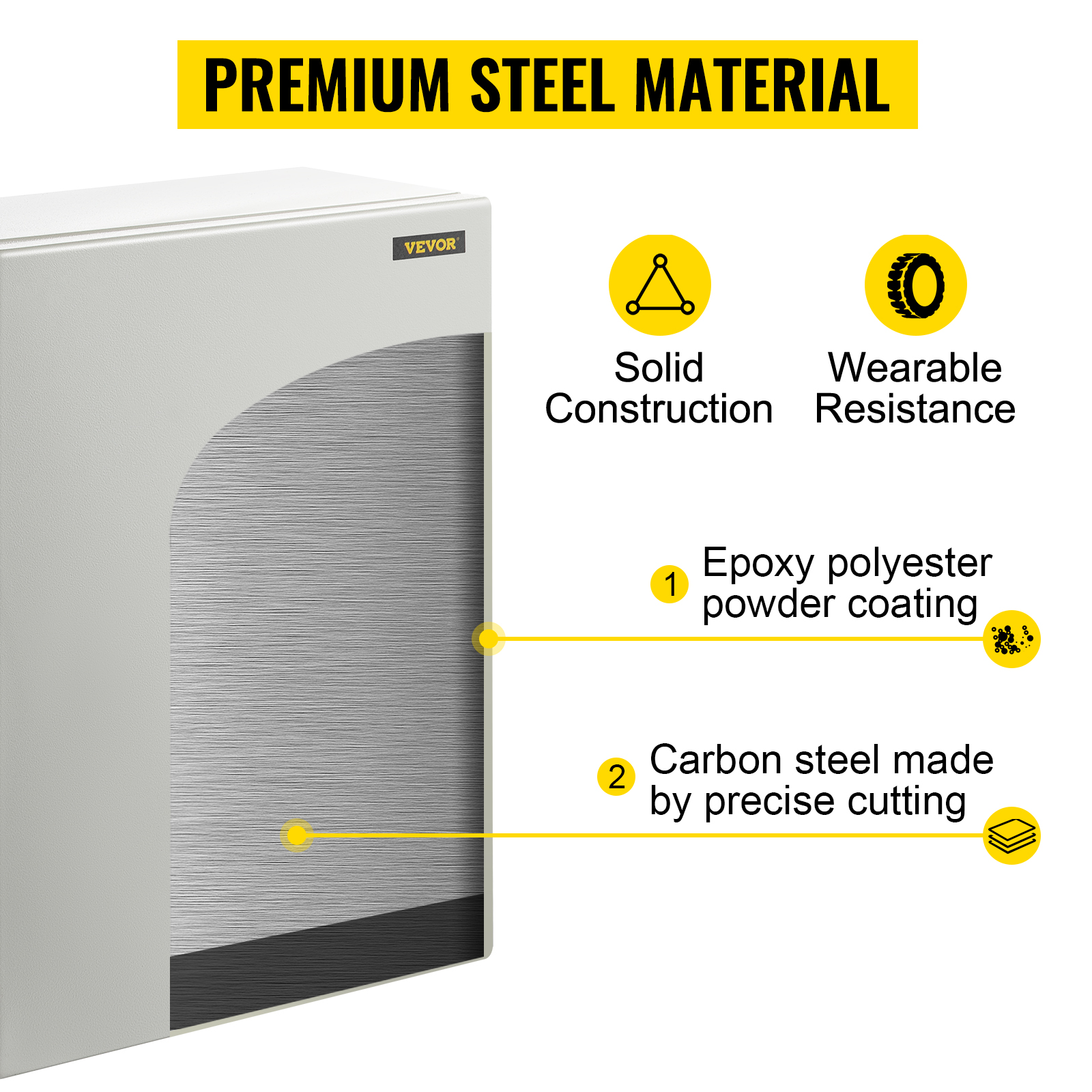

Premium Steel Material
The electrical box is made of 0.059''/1.5 mm cold-rolled steel, features high toughness, pressure resistance, and rust resistance. The shell is made of epoxy polyester powder coating, which has good mechanical and leveling properties.

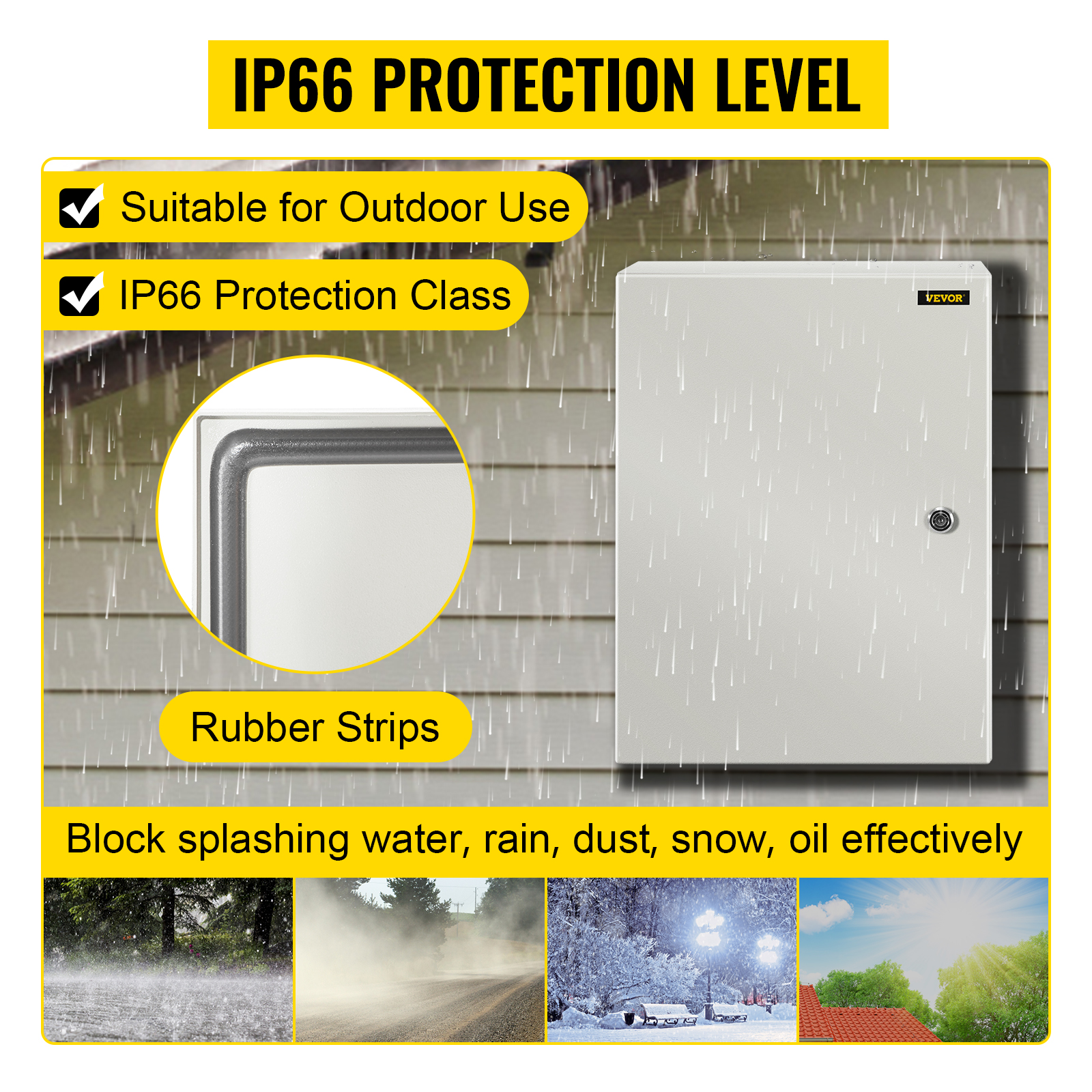

IP66 Protection Level
The IP66 protection level means dustproof and protected from moisture, water, rain, snow, oil, etc., to protect internal electrical appliances and keep all your electrical equipment safe and dry.

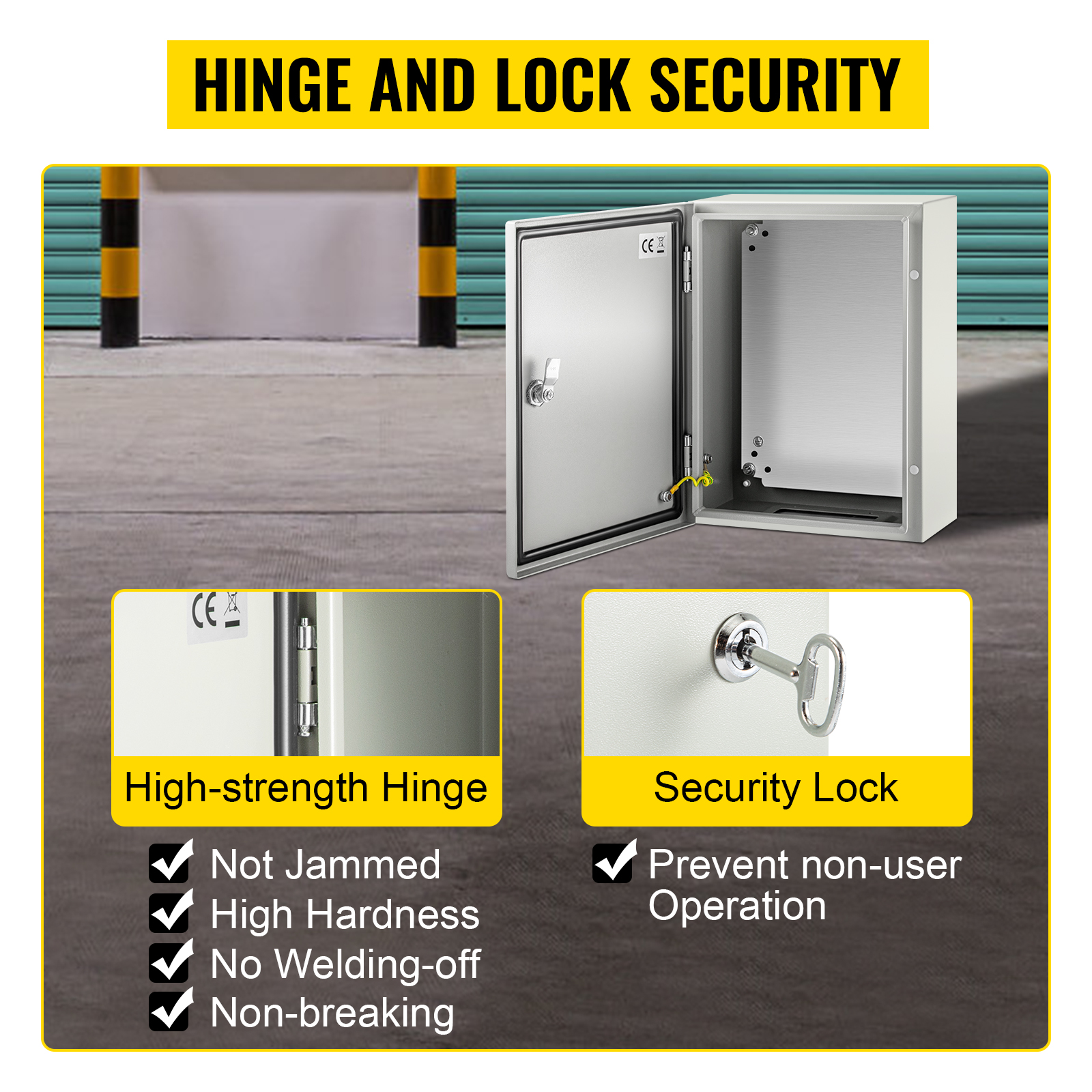

Hinge and Lock Security
The inner lock core is made of metal to prevent damage caused by excessive force or unauthorized opening; the reinforced hinge ensures that repeated opening and closing will not be damaged.
- Model: SPT
- Color: Gray White(RAL7035)
- Material: 0.059'' / 1.5 mm Carbon Steel
- Coating: Epoxy Polyester Powder Coating
- Mounting Plate: 0.079'' / 2 mm Detachable Galvanized Backplate
- IP Rating: Designed to meet IP66 and NEMA 1, 2, 4, 4X, & 12 specifications
- Connection Type: Hinged
- Feature: Lockable, Waterproof

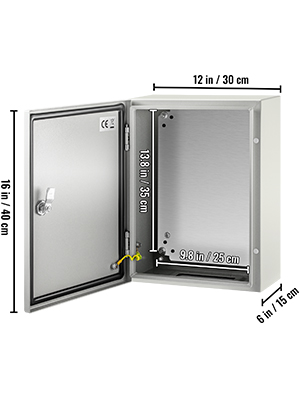

- Galvanized Backplate Dimensions: 13.8" x 9.8" / 35 x 25 cm
- Outer Dimensions (H x W x D)(Type 1-6): 16*12*6/16*12*8/16*16*6/16*16*8/20*12*10/20*16*6in
- Outer Dimensions (H x W x D)(Type 7-12): 20*16*8/20*16*10/20*20*6/24*16*10/24*24*8/24*24*12/ in
- Inner Dimensions (H x W x D)(Type 1-6):15.6x11.7x4.6/15.6x11.7x6.6/15.6x 15.6x4.6/15.6x15.6x6.6/19.6x11.7x8.5/19.6x15.6x4.6in
- Inner Dimensions (H x W x D)(Type 7-12):19.6x15.6x6.6/19.6x15.6x 8.5/19.6x19.6x4.6/23.5x15.6x8.5/23.5x23.5x6.6/23.5x23.5x10.5in
- Product Weight(Type 1-6): 18.08/16.98/22.27/24.69/28.22/ 26.68lbs
- Product Weight(Type 7-12): 29.32/32.63/31.75/37.48/47.18/54.23lbs
- Certification: CE / ROHS Certification

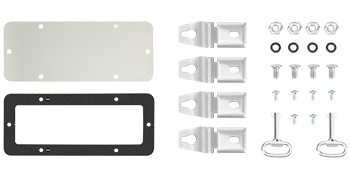

Package Content- 1 x Electrical Box
- 2 x Keys
- 1 x Mounting Plate (The mounting plate has been assembled in the box)
- 1 x Set of Wall Mounting Pendants
- 1 x Bottom Sealing Plate
Features & Details
- Sturdy Steel Construction: Made of 1.5 mm cold-rolled steel, precision cut and welded. Our electrical enclosures got CE, ROHS certificates, have stronger wear resistance, keep your equipment is well protected in harsh environments.
- IP66 Waterproof Grade: The sealing strip of foam plastic has excellent sealing performance, and the enclosed box body is guaranteed to reach the protection level of IP66, which can prevent dirt and water from entering the box when the lid is opened. Ideal Choice for factories, construction sites, malls, squares, residential areas, courtyards, etc.
- Reinforced Lock & Hinge: The high-strength hinged cover is designed to ensure that the door is not easily damaged or broken due to squeezing. The shell box adopts a high-quality lock core to increase safety and lockability.
- Convenient Operation: The junction box is equipped with a detachable galvanized mounting backplate for easy installation of electrical components. The four wall-mounted mounting holes on the back can quickly fix the electrical box on the wall.
- Exquisite Details Design: The bottom of the electrical box is designed to facilitate threading. The grounding screws have been installed in advance, and the cutouts are smooth to avoid damage to the cables.
