Description:

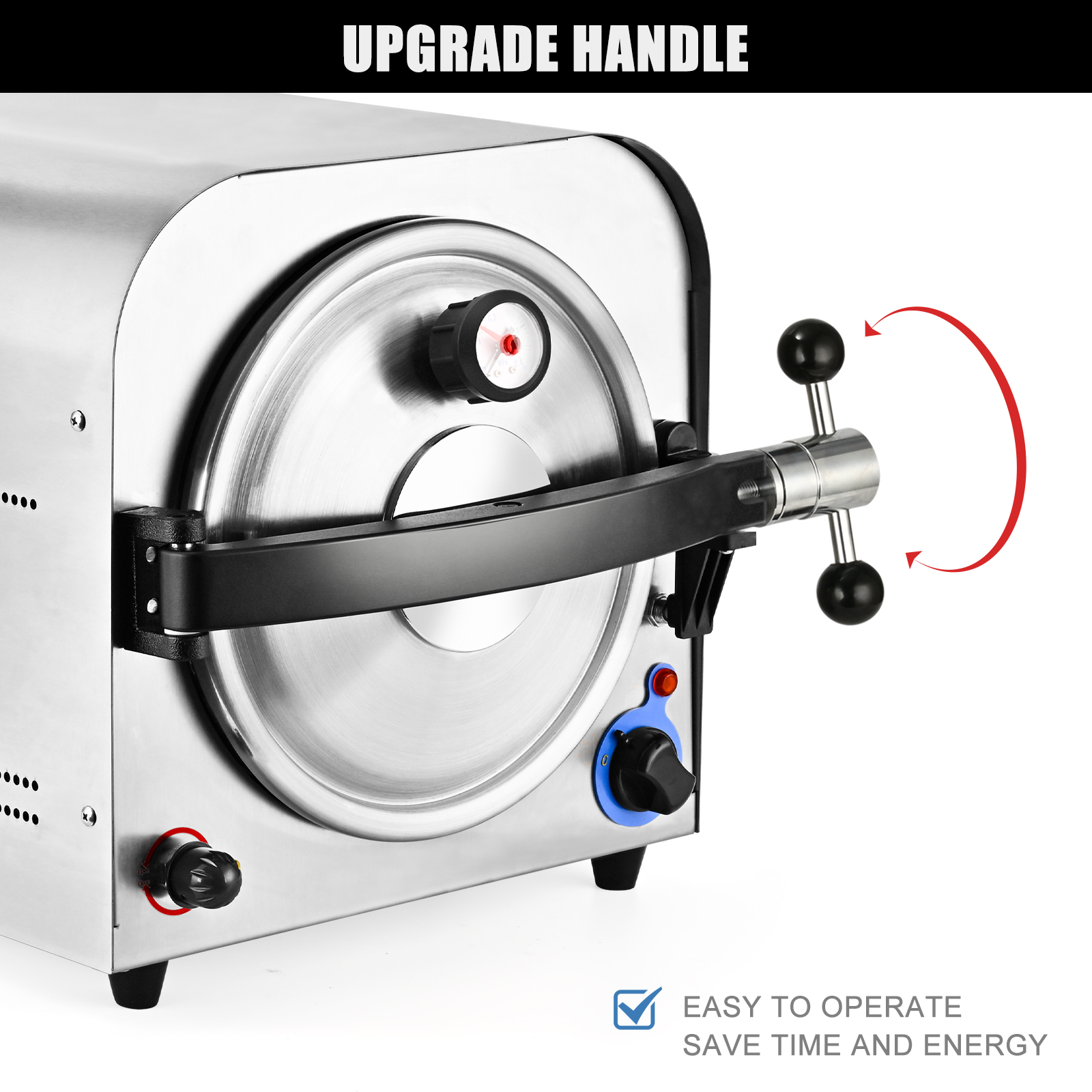

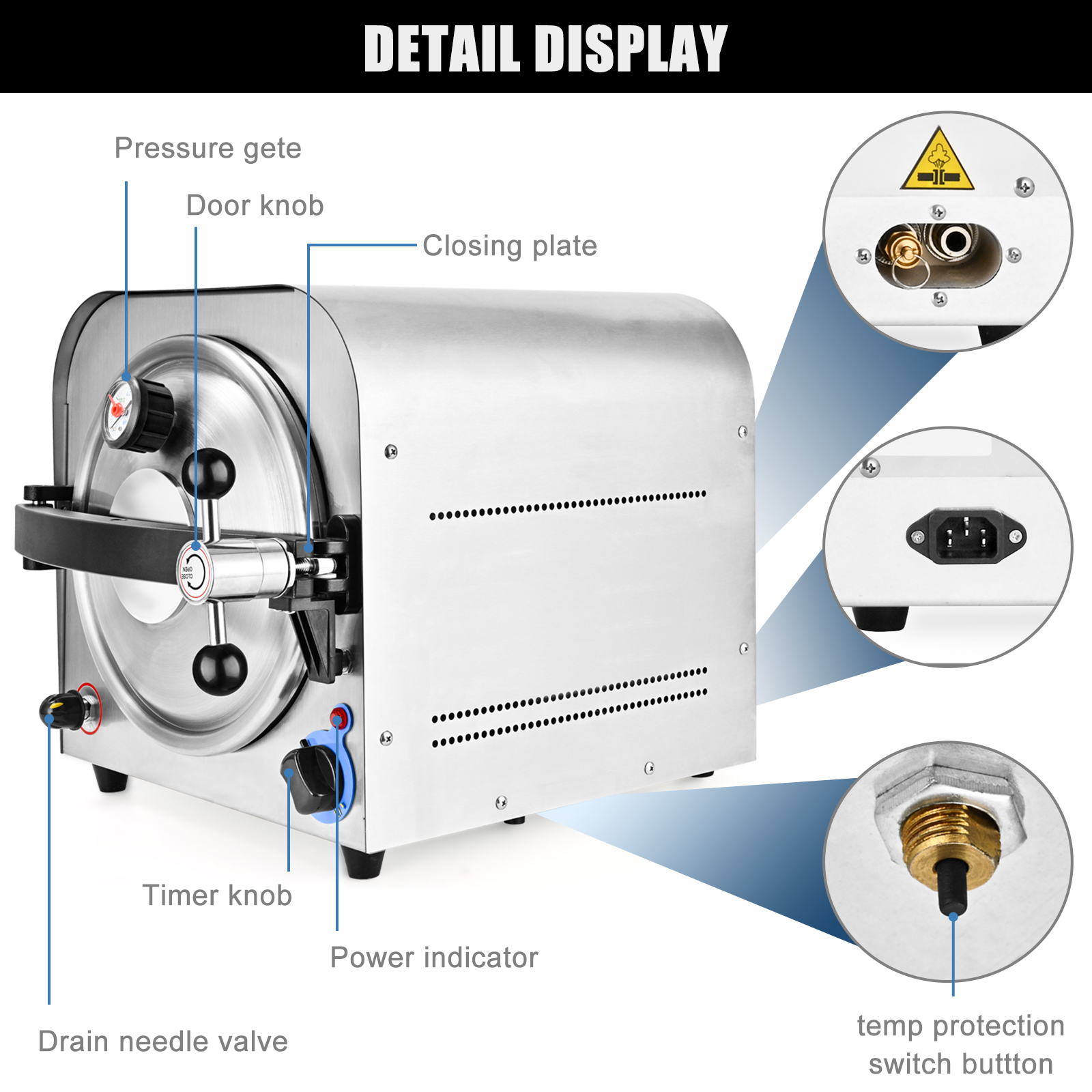

This TR250E Dental 14L Autoclave Steam Sterilizer consists of pressure guage, rotary handle, indicator lamp, timer knob, exhaust drain needle vavle, steam outlet and safety vavle.

Application: It is widely used in the field of stomatological and ophthalmologic hospital, pet clinic, pedicure salon, beauty salon, babershop and tattoo shop, etc.

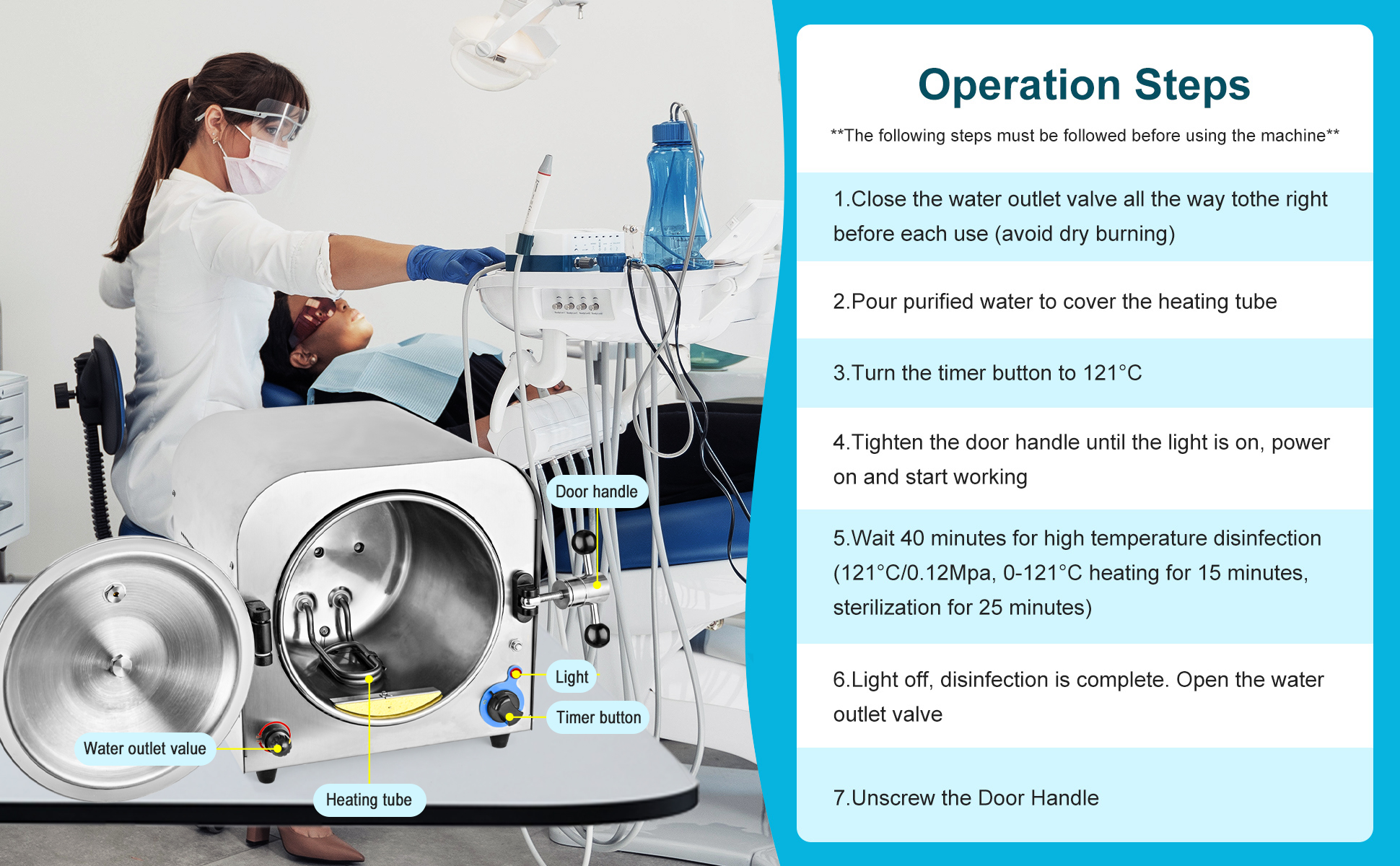

How to Use：

1. Open the sterilizer door. For the first time, remove the trays and rack and other accessories from the sterilizing chamber and remove package;

2. Plug in the power cord. Close the steam discharge hose to the 6 steam outlet;

3. Tighten the steam exhaust valve in the direction of the clock. Sterilize room into about 800ml distilled water. Close the door cover and tighten the rotating handle in the direction of the clock;

4. Turn the timer knob to 121 ℃ position. Sterilizer starts working;

5. When Sterilizing is completed, please be sure to open the rotary steam discharge vavle first. And then let steam and water flow out;

6. Wait for the pressure gauge pointer to return to zero, and last open the door cover.

Notes:

1. The power cord and draining hose must be pushed forward tightly.

2. For every time sterilization, must add about 800ml of distilled water.

3. Use a separate socket(confirm the socket of the output voltage).

4. Pressure gauge pointer in the red areas, please be sure to first open the exhaust steam of the needle valve.

Specifications:

Model: TR250E

Power: 900W

Voltage: AC110V 60Hz

Chamber Capacity: Ø25×D28cm(Ø9.84×D11.02in)

Inside Capacity: 14 L

Material: #304 Stainless Steel

Sterilizing Temperature: 121℃

Sterilizing Pressure: 0.12 Mpa

Ambient Temperature: 5-40℃

Sterilizing Time: 25 Min

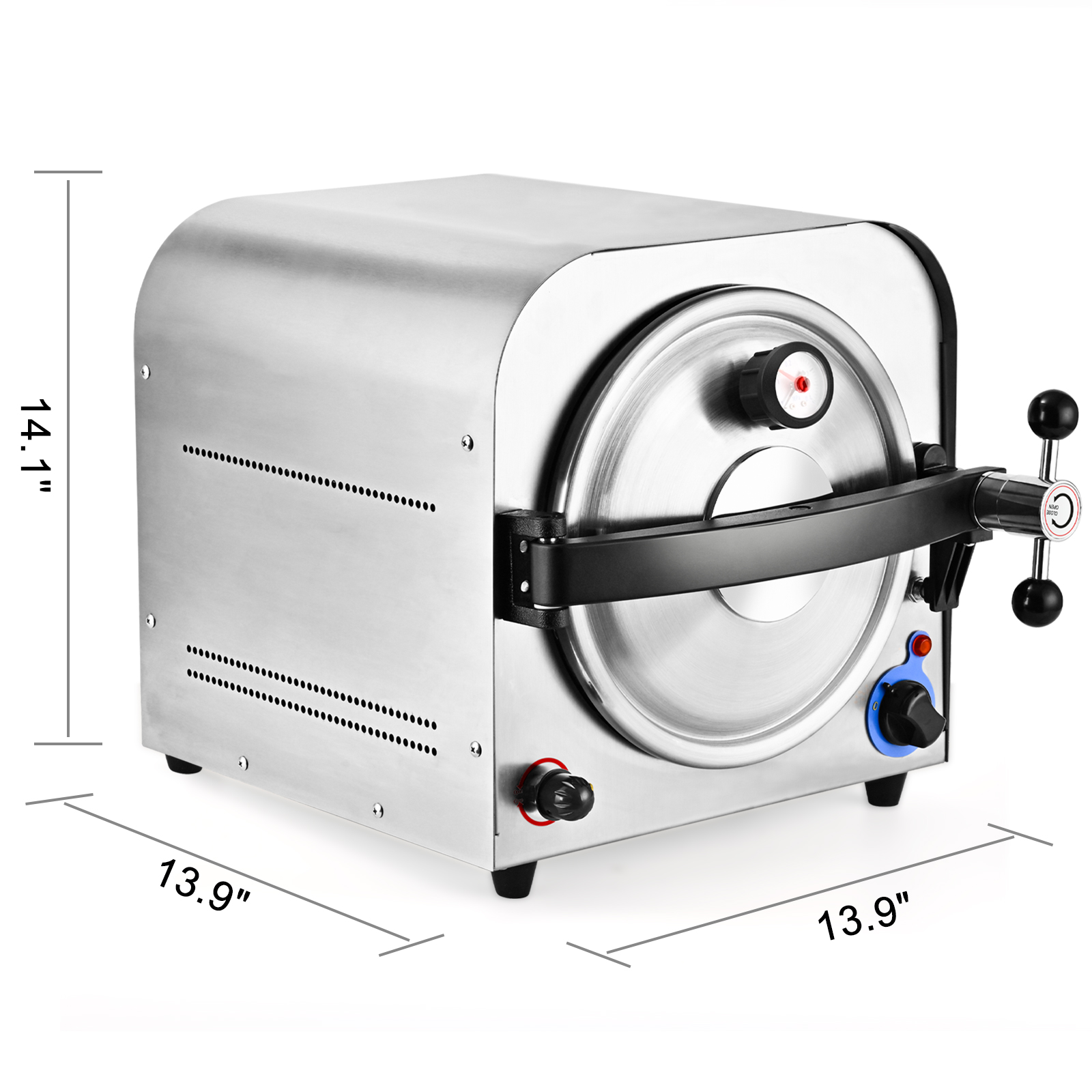

Package Size: 54×43×42cm(21.3×17×16.5in)

G.W.: 20kg

Package Includes:

1 × Autoclave Steam Sterilizer

1 × Tray Rack

3 × Tray

1 × Tray Removal Tool

1 × Draining Hose

1 × User Manual

1 × Power Cord

Other Accessories as Shown in the Picture
