1400W Magnetic Drill Press, 2922lbf/13000N Mag Drill Press, Coring/Tapping/Drilling Machine, 810RPM Muti-Purpose Magnetic Core Drilling Machine with 1.6" Boring Diameter for Metal Working & Home Improvement

Features

▶High Power Motor: Our electric magnetic drill has a powerful driving force with its 1400W copper motor. The 1400W motor wound with pure copper wire can keep the electromagnetic drill working at high intensity for a long time, making it capable of drilling into the hardest materials at a speed of 810 RPM.
▶Efficient Cooling System: The equipped cooling pot can be filled with coolant to quickly cool down the magnetic drill press, which can greatly increase the service life of the motor and gears of the magnetic drill; the three-dimensional grille design of the magnetic drill body can not only increase the air output efficiency, but also prevent debris and dust from entering.
▶Dual Coil Magnetic Drill Base: Our drill press base is made of pure iron and has a strong magnetic force of 2922lbf/13000N. The drill press has the characteristics of built-in insulation protective glue and adopts graded start technology for double protection. When the magnetic base is not started or fails, the motor does not work to ensure safety and reliability.
▶Double Dovetail Guide Rails: The double swallowtail guide rail of electromagnetic drill are made of high-hardness alloy, with a wear-resistant surface treatment and overall thickening, providing excellent high rigidity; The sliding bidirectional guide rail allows the motor height to be freely adjusted according to different needs, and the sliding is smooth without jamming.
▶Stepless Speed & Reversible Function: This drilling machine is set to 10 drilling speeds, and twisting the stepless speed control knob can smoothly adjust your drilling speed according to your requirements; Simultaneously configuring a reversible direction switch allows you to reverse the drilling direction during various drilling processes.
▶High Quality Gears & Rotor Shaft: The secondary reduction gears forged from aluminum alloy have stronger load-bearing capacity and greater torque force. The rotor shaft made of copper-silver alloy has high hardness and good wear resistance, greatly improving the rigidity of the spindle and making the drill bit work stably.
▶Strong Practicality: The powerful magnetic drill can be applied to stainless steel, steel plates, steel structures, hard plates, marble, granite, angle steel and other materials. It can be used for various industrial purposes and home maintenance scenarios such as steel structure bridge drilling, steel structure oil drilling platforms, shipbuilding, railway construction, bridge engineering, machinery manufacturing, etc.

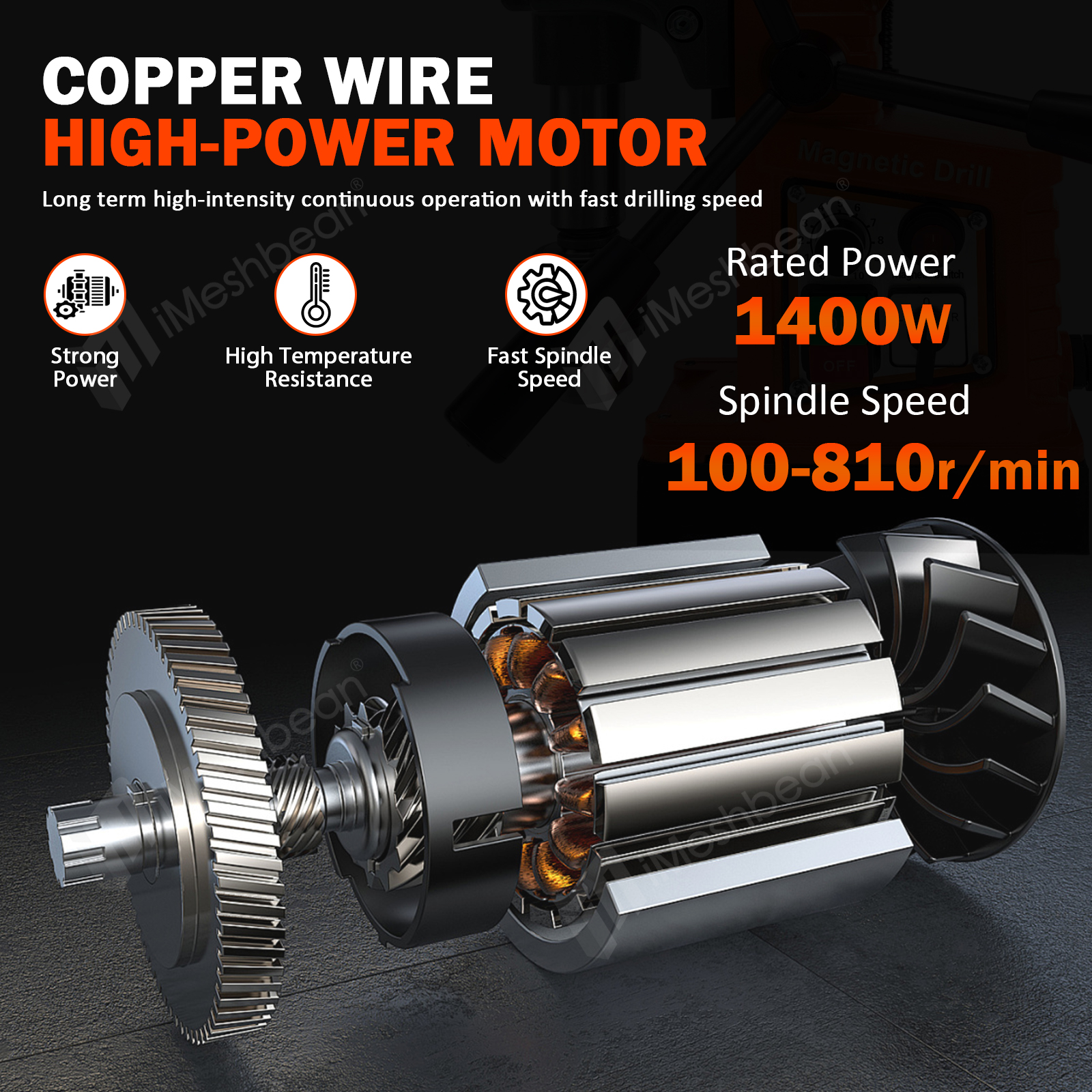

Strong Driving Force

Excellent performance with stable rotational speed, fast drilling (810 RPM), high temperature resistance without burning, and long service life.

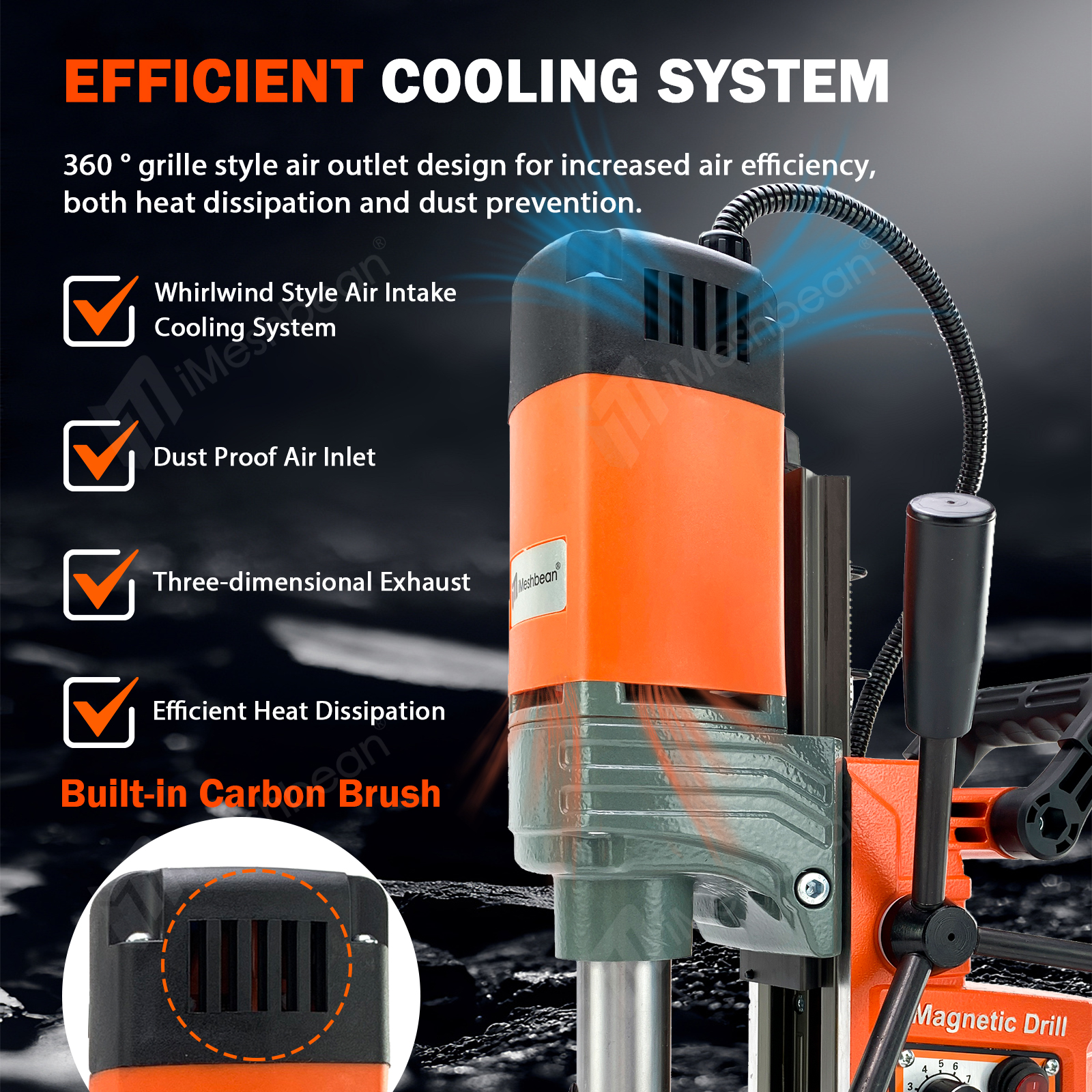

Effective Heat Dissipation

360 ° grille style air outlet design for increased air efficiency, both heat dissipation and dust prevention

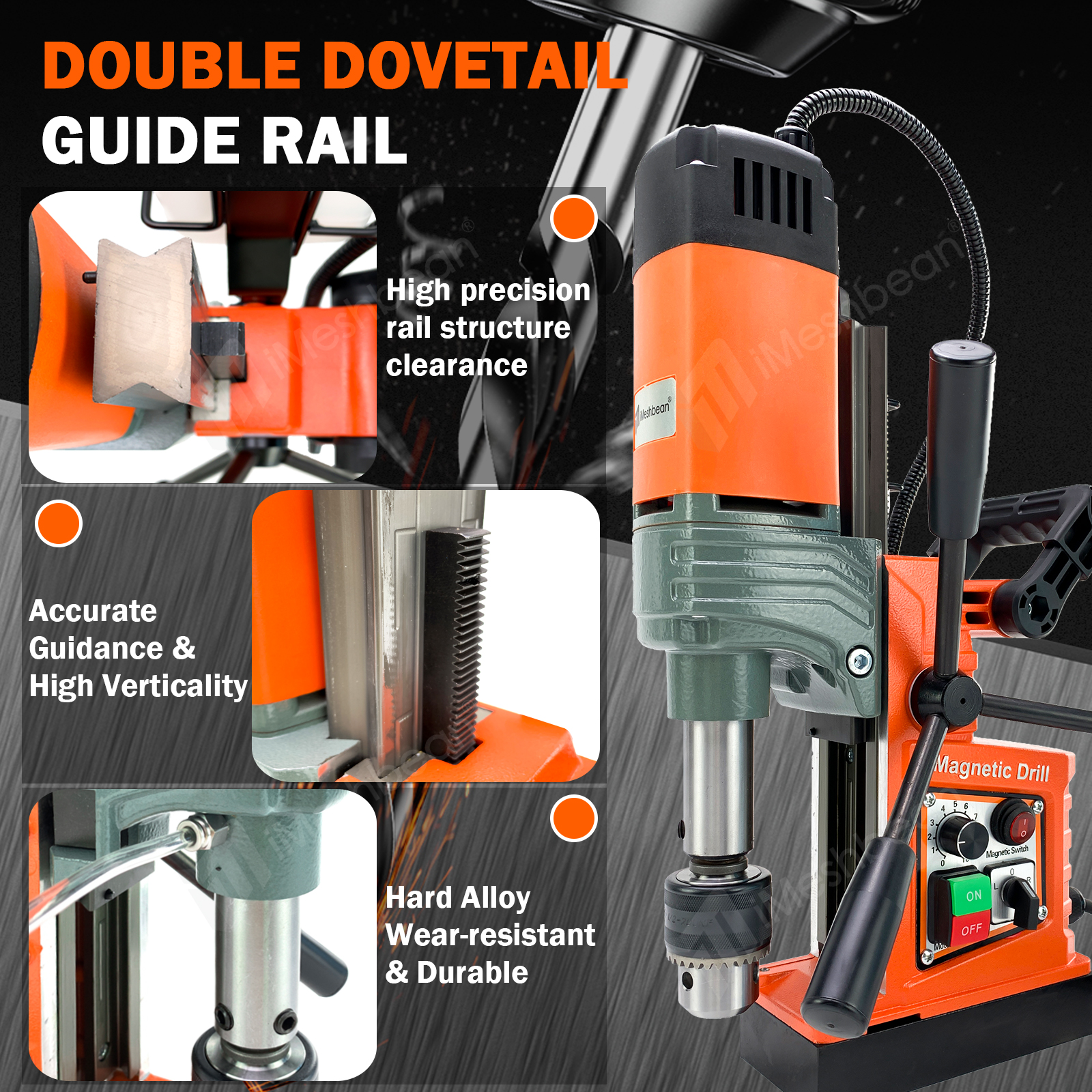

Two-way Dovatail Guide Rail

It ensures the rigidity of the sliding part and can adjust the motor height as needed, with wear and high temperature resistance.

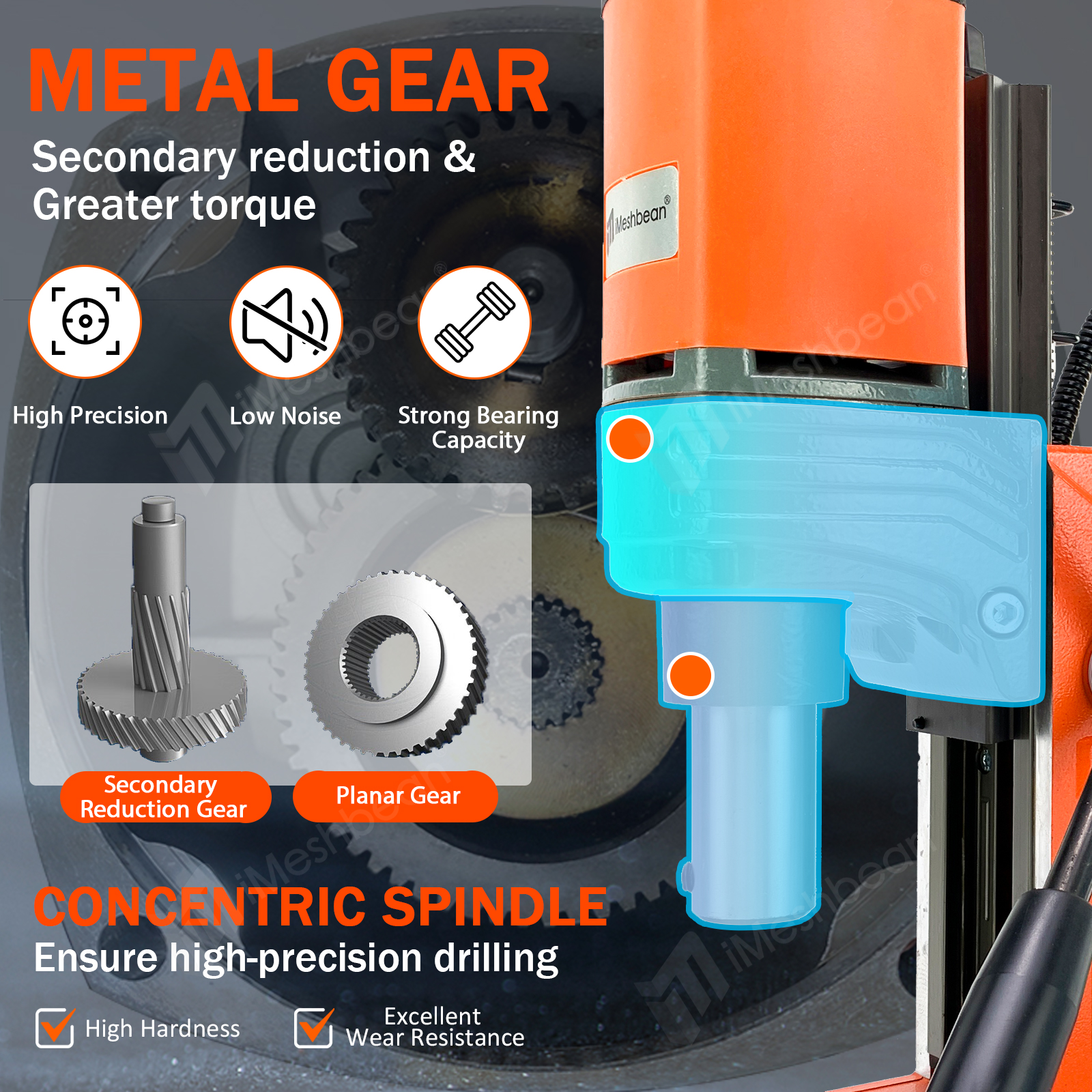

Precision Gears & Rotor Shafts

Precision manufactured gears and shafts with stable performance, high transmission accuracy, and strong power.

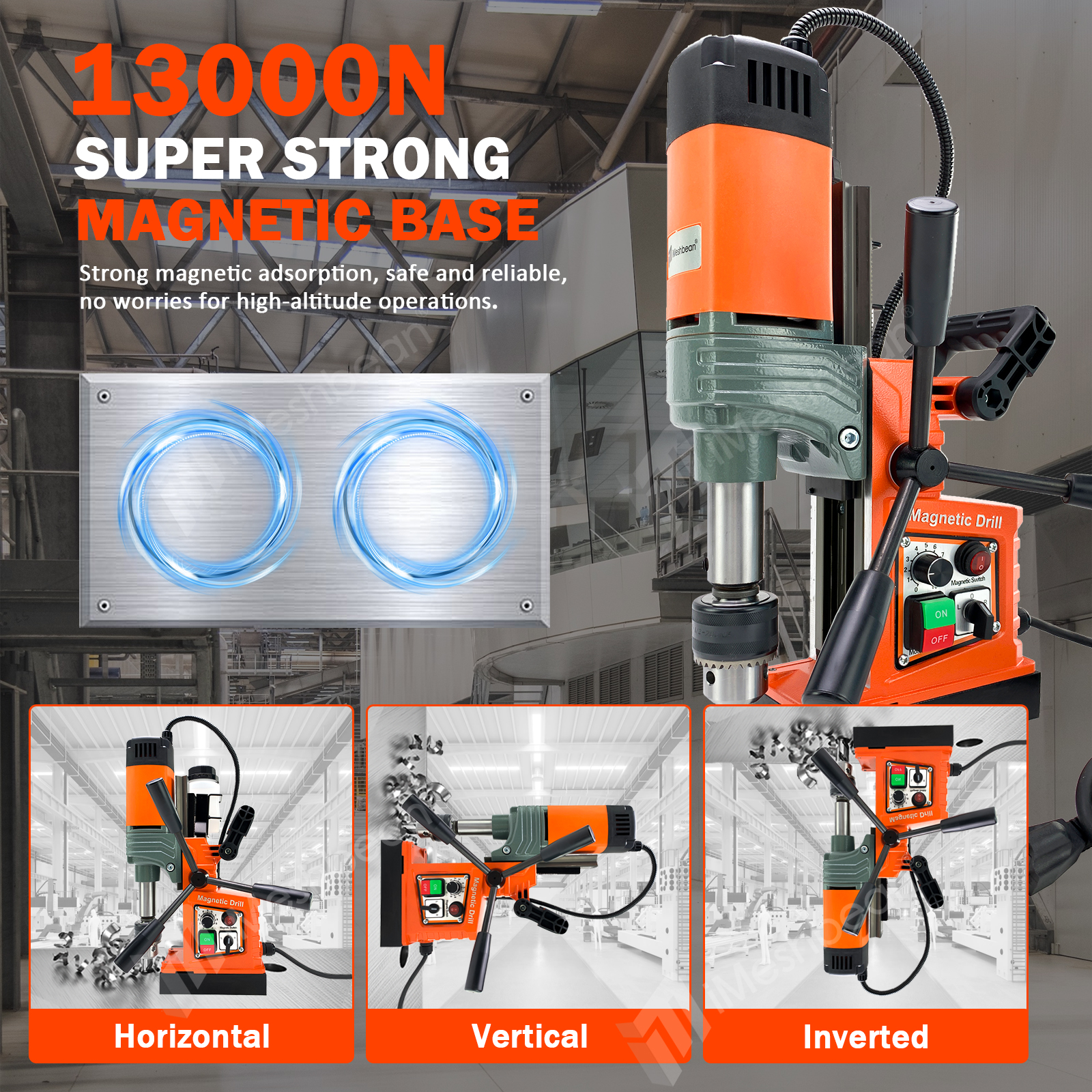

13000N Strong Magnetic Force

Strong magnetic adsorption, safe & reliable, capable of reverse suction/side suction/vertical 90 ° adsorption during operation.

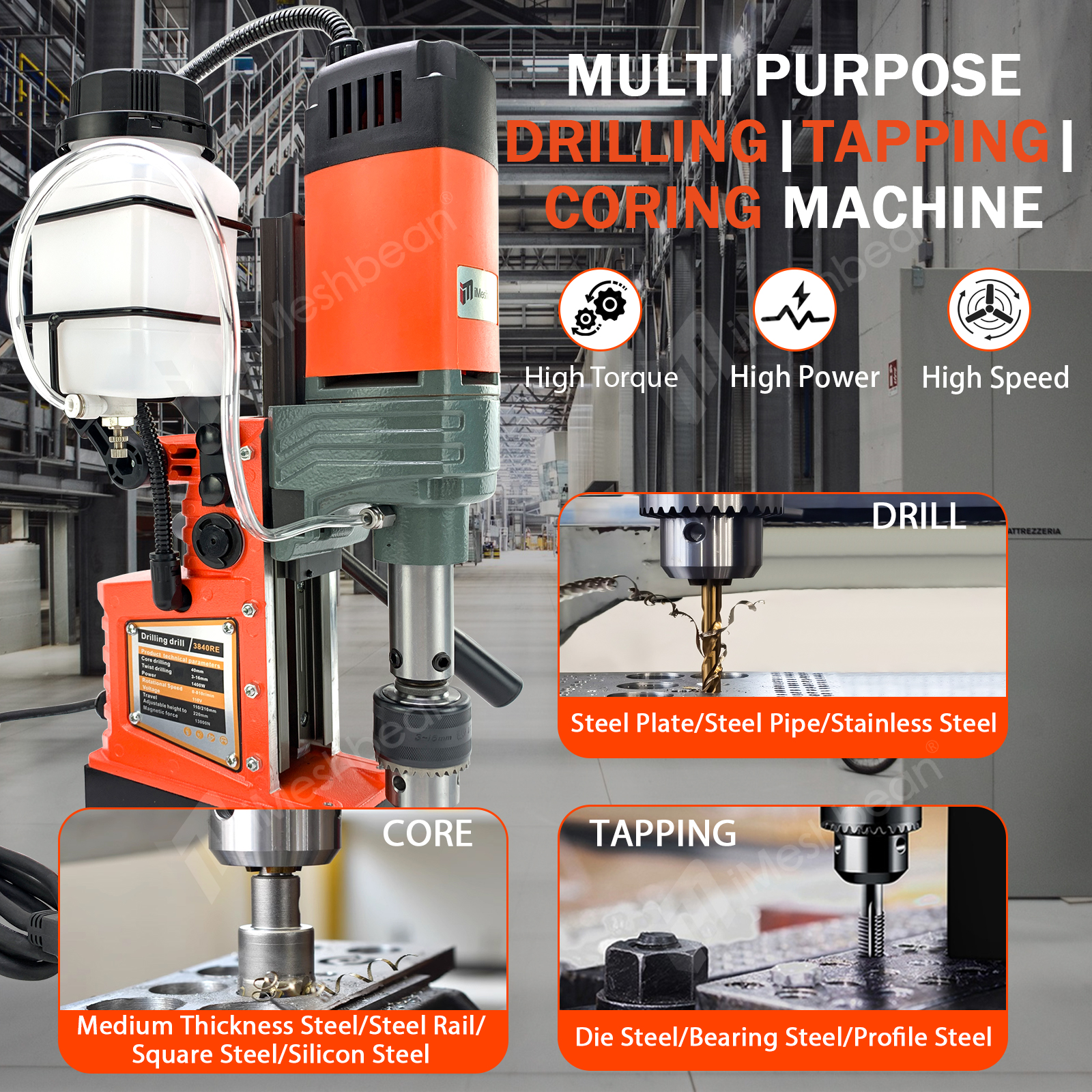

Multifunctional Magnetic Drill

Multi purpose drilling (0.1-0.6"/ 3-16 mm) / tapping (M2-M14) / coring (1.6"/ 40 mm) machine.

Specification:
Model: WF22518-3840RE 1400W
Power: 1400W
Voltage: 110V
Power Frequency: 60Hz
Amperage: 10 Amps
Power Source: Corded Electric (2m)
Material: Metal
Color: Orange & Grey Green
Special Features: Overload Protection, Alloy Guide Rail
Maximum Spindle Speed: 810 R/MIN
Max. Coring Drill Diameter: 1.6"/ 40 mm
Twist Drilling Range: 0.1-0.6"/ 3-16 mm
Tapping Range: M2-M14
Spindle Stroke: 4.3"-8.3" / 110- 210 mm
Magnetic Force(Base): 2922 lbf / 13000 N
Magnetic Base Size: 6.89" x 3.15" x 1.77"/17.5 x 8 x 4.5 cm
Product Size(Full Installation): about 11.8" x 9.84" x 17.72"/ 30 x 25 x 45 cm (LWH)
Package size: 15.75" x 8.66" x 11.8" / 40 x 22 x 30 cm (LWH)
Item Weight: 24.25 lbs / 11 kg
Package Weight: 26.46 lbs / 12 kg
Package Content:
1 x Magnetic Drill (WF22518-3840RE 1400W)
1 x Drill Chuck
1 x Drill Chuck Key
1 x Drill Chuck Adapter
3 x Hex Wrench
2 x Carbon Brushes
1 x Safe Strap
1 x Coolant Tank & Stand & Hose
3 x Hand Crank
1 x Handles
1 x Manual
