Specifications
Material: Copper, Plastic, Iron
Motor Type: Pure Copper
Voltage: 110V
Wattage: 1300W
Punching speed: 2.0 - 3.0 seconds (quick hole punching speed)
Hole diameter: 6 millimeters - 20 millimeters
Max Throat Depth: 1 to 1.4 inches (35 millimeters maximum)
Suitable Material: ≤8mm/0.31inch Copper Bars and Aluminum Plates, ≤6mm/0.24inch Iron Bars and Steel Plates
Machine size: see picture
Includes Punch/Die 5 Set (φ6.5, φ9, φ13, φ17, φ20.5mm)(Φ1/4”, 3/8”, 1/2”, 11/16”, 4/5”)
Motor Type: Pure Copper
Voltage: 110V
Wattage: 1300W
Punching speed: 2.0 - 3.0 seconds (quick hole punching speed)
Hole diameter: 6 millimeters - 20 millimeters
Max Throat Depth: 1 to 1.4 inches (35 millimeters maximum)
Suitable Material: ≤8mm/0.31inch Copper Bars and Aluminum Plates, ≤6mm/0.24inch Iron Bars and Steel Plates
Machine size: see picture
Includes Punch/Die 5 Set (φ6.5, φ9, φ13, φ17, φ20.5mm)(Φ1/4”, 3/8”, 1/2”, 11/16”, 4/5”)
Wide Application
The electric hydraulic hole punch can be used in punching on steel plate, angle steel plate, iron plate, aluminum plate, and U-steel, especially in some industrial and mechanical place. It is a electric hydraulic puncher applied for drilling of copper, aluminum, steel, iron plate, angle, etc.
This hydraulic punch is suitable for punching range（thickness）: Iron/steel plate≤1/4" , Copper/ aluminum plate≤5/16", 4~6# angle steel/iron. However, The electric hydraulic hole punch can't apply to channel steel! Don't use on metal plates that are too thin or too soft, as they may easily stick.
This hydraulic punch is suitable for punching range（thickness）: Iron/steel plate≤1/4" , Copper/ aluminum plate≤5/16", 4~6# angle steel/iron. However, The electric hydraulic hole punch can't apply to channel steel! Don't use on metal plates that are too thin or too soft, as they may easily stick.

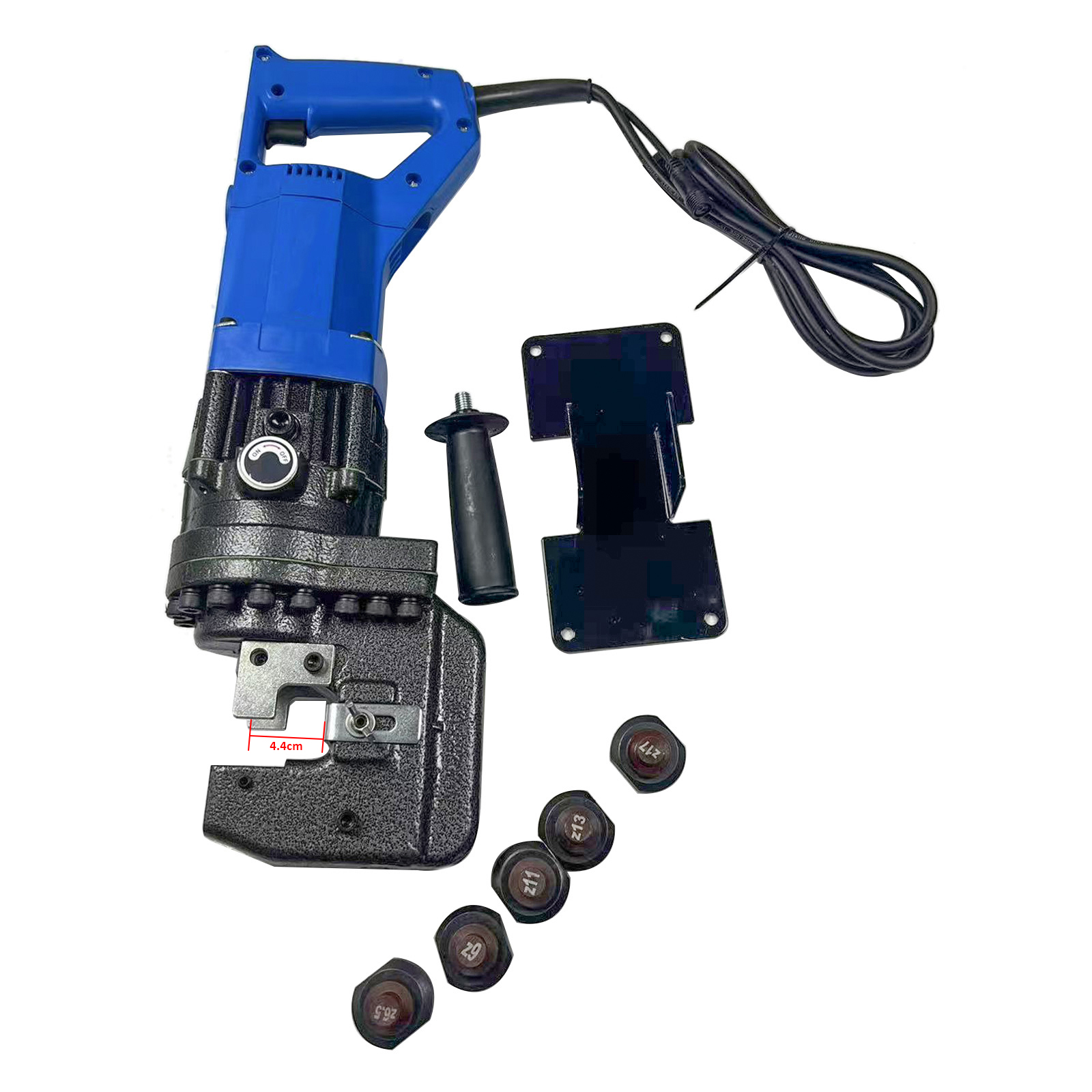

Package includes
1 x punching machine
1 x base
2 x hexagon wrench
2 x screws
1 x auxiliary handle
2 x carbon brush
5 x standard dies (Φ1/4", 3/8", 1/2", 11/16", 4/5")
1* Manual
(As Pics Shown)
Product Highlights
【Versatile Application Range】: Ideal for steel, angle steel, iron, aluminum, and U-steel. Punching range: Iron/steel plate 5/64" - 1/4", Copper/aluminum 5/64" - 5/16", Angle iron 5/64" - 1/4". Note: not for channel steel or very thin/soft metal.
【Powerful and Efficient Performance】: This 1300W electric hydraulic hole puncher features a 1.2 HP pure copper motor (110V, 11.5A, 60Hz) with 10T output force. It rotates at 5000rpm for stable power, punching holes in 1 - 3 seconds.
【User-Friendly Operation】: One-click start and simple operation. Offers 2 working modes: with base/platform or handheld. Adjustable baffle (2.56 inches) for accurate drilling and easy positioning.
【Premium Quality Materials for Durability】: Comes with Φ1/4", 3/8", 1/2", 11/16", 4/5" (6.5mm, 9mm, 13mm, 17mm, 20.5mm) punch dies. Made of UNS1566 with a strong forged body for stable penetration. Multiple ring nuts ensure firmness and smooth use.
【Powerful and Efficient Performance】: This 1300W electric hydraulic hole puncher features a 1.2 HP pure copper motor (110V, 11.5A, 60Hz) with 10T output force. It rotates at 5000rpm for stable power, punching holes in 1 - 3 seconds.
【User-Friendly Operation】: One-click start and simple operation. Offers 2 working modes: with base/platform or handheld. Adjustable baffle (2.56 inches) for accurate drilling and easy positioning.
【Premium Quality Materials for Durability】: Comes with Φ1/4", 3/8", 1/2", 11/16", 4/5" (6.5mm, 9mm, 13mm, 17mm, 20.5mm) punch dies. Made of UNS1566 with a strong forged body for stable penetration. Multiple ring nuts ensure firmness and smooth use.
Professional installation is recommended.
Please check the illustrations carefully to ensure that it fits your model. If you are not sure, please contact us and we will respond as soon as possible.
