12V 100AH 3.0 LiFePO4 Lithium Battery with SOC Status Indicators Trolling Motor

$179.99
Rated Capacity
100Ah
Weight (kg/lbs)
10.4kg/22.93lbs
USB-A Port
24W
DC Port
5.5*2.5mm(12V5A)
Operation Temperature Range
Charge: 0~55℃ Discharge: -20~55℃
Dimensions (mm/inch)
265*173*252mm/10.4*6.8*9.9inch
Terminal Type
M8
Standard Charge/ Discharge
50A/50A
Peak Current
200A/60s
Rated Voltage
12.8V
Type-C Port
60W
Brand
DC HOUSE
Operation Voltage
9.2-14.6V
MaximumContinuous Charge/ Discharge
100A/100A
Number of series and parallel connection
4P4S
Case Material
ABS
condition
New

Product Description

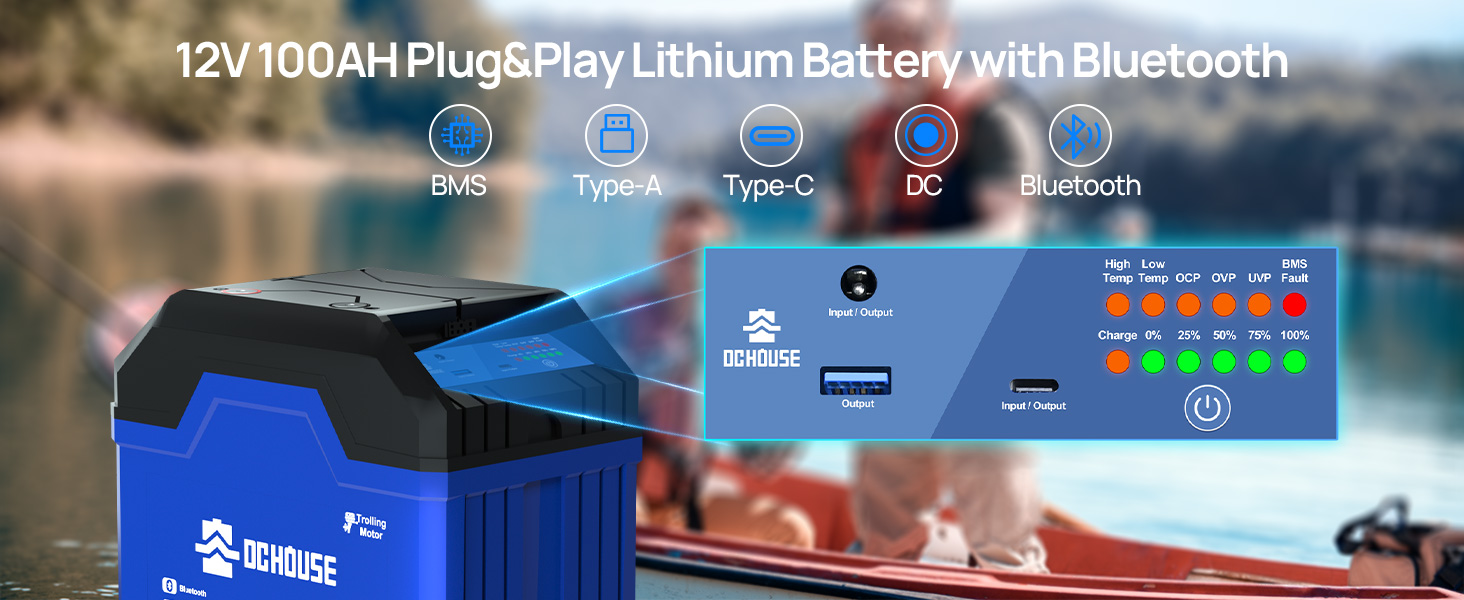

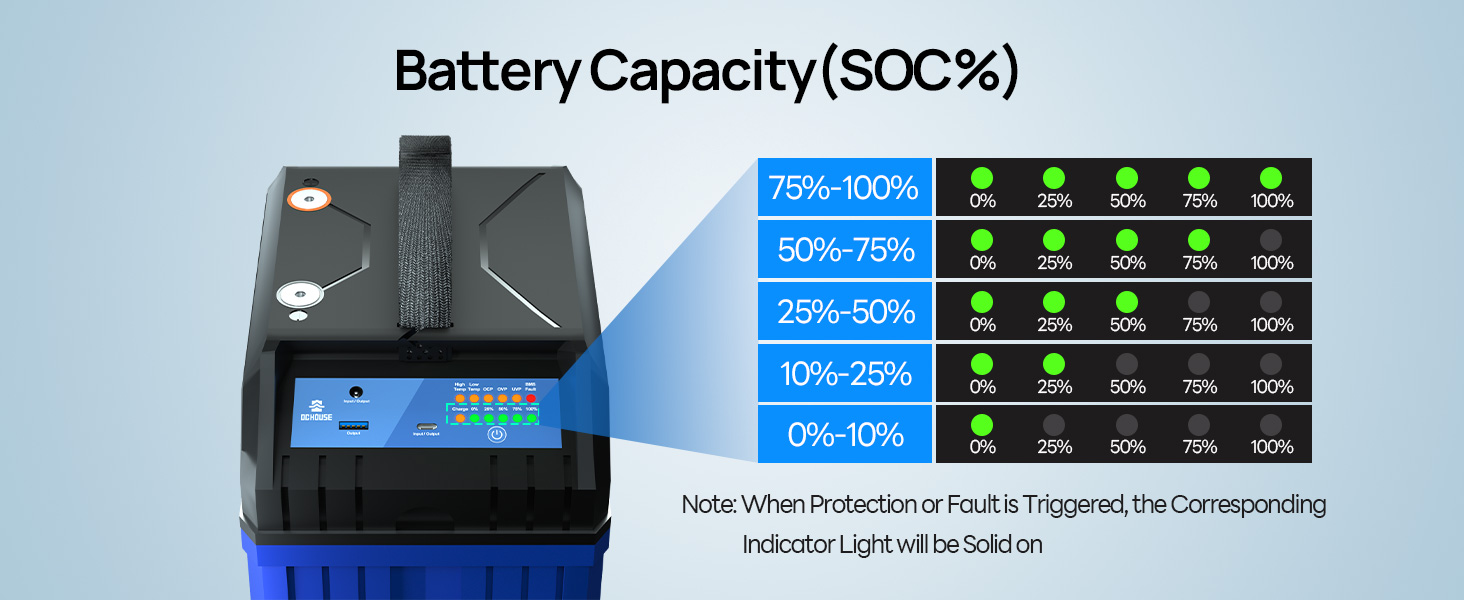

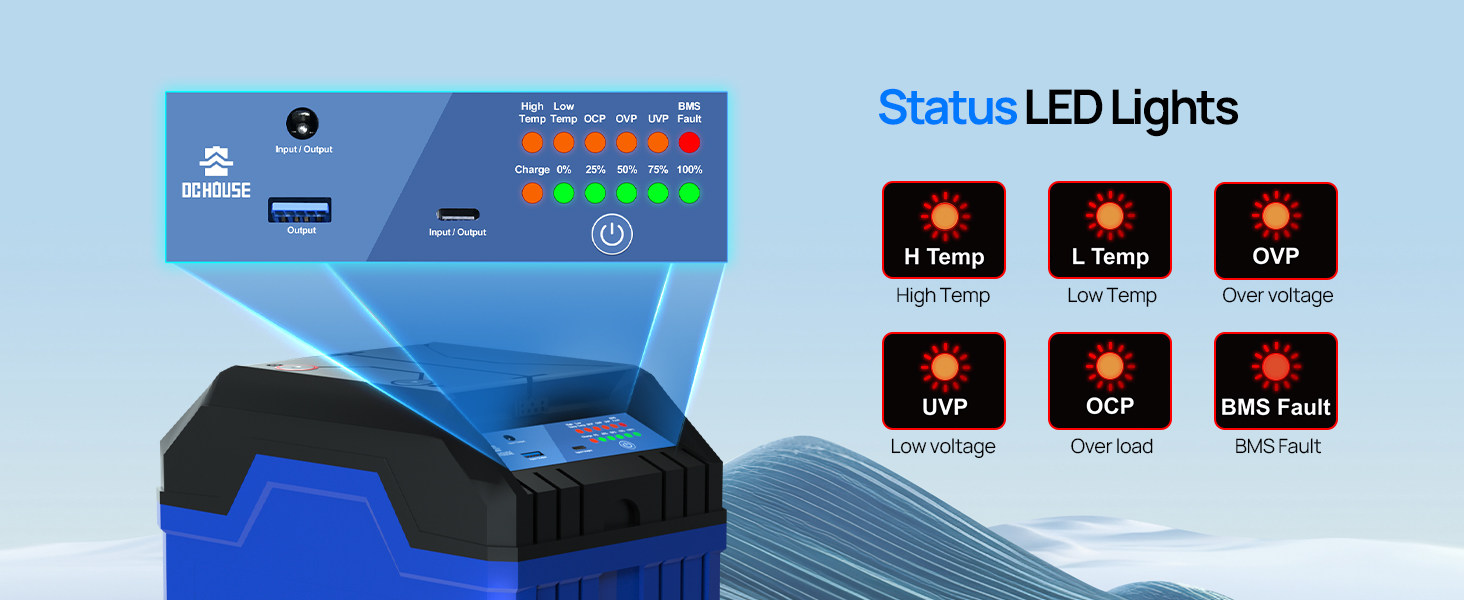

SOC Status Indicators

Upgraded 3.0 12V 100Ah trolling motor battery has a visual LED indicator, which is very simple and clear real-time to monitor the SOC battery remaining power, high temperature, low temperature, short circuit, overvoltage, low voltage and BMS fault indication and charging indication. Ideal for a variety of applications, such as trolling, camping, RVs, and more.

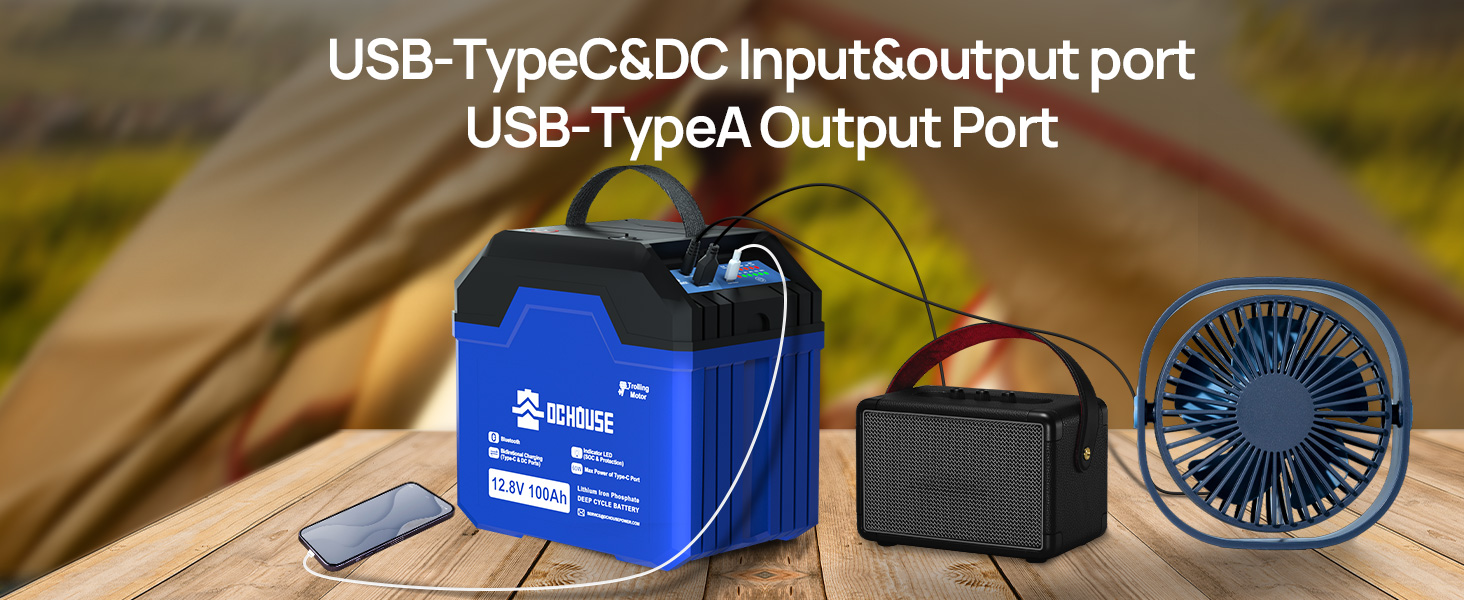

Multi Port Adapter

DC HOUSE 100AH battery with 1*USB-A & 1*USB-C & 1*DC PORT that can charge 3 devices at the same time, which can greatly meet different charging needs.Perfect for families and outdoor travelers, it can charge smartphones, smart watches, cameran, fan and computer

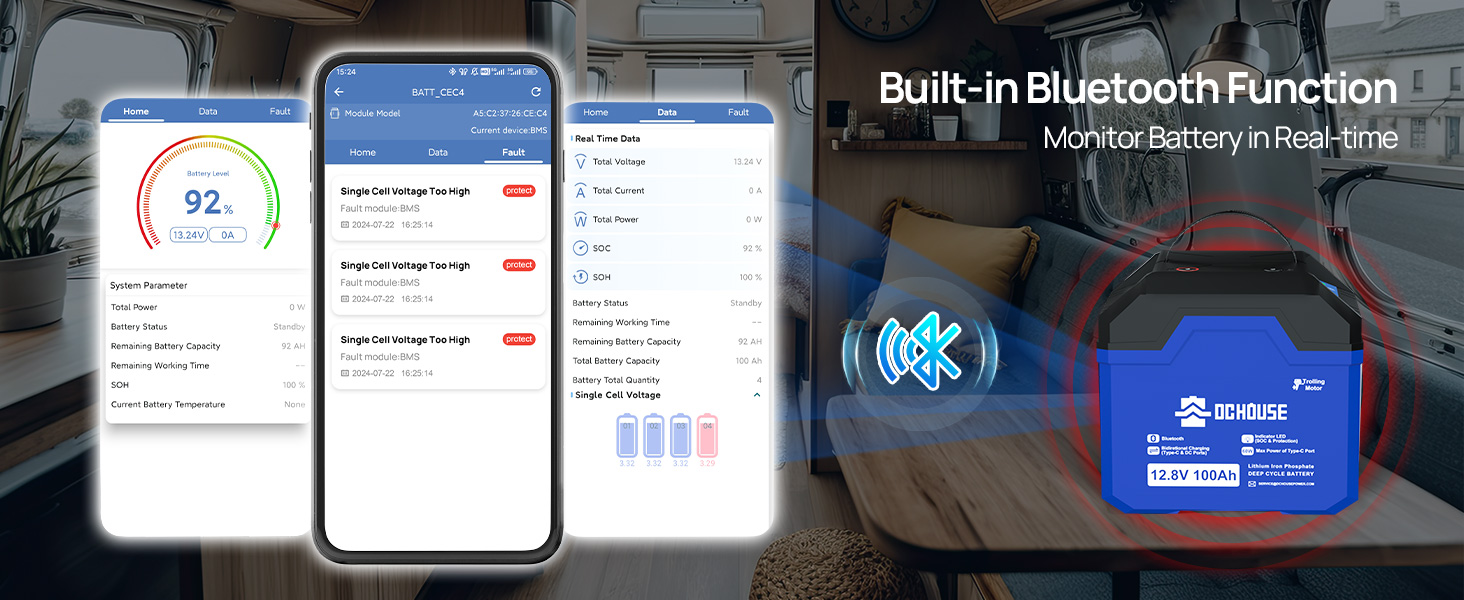

Bluetooth APP Monitoring

DC HOUSE 12V100AH battery has built-in Bluetooth, which can connect with DC HOUSE APP (Bluetooth signal range 5-10 meters. It is convenient to monitor battery information such as SOC, voltage, current, etc., and the data is accurate to the specific cell of a battery, there is a special fault display page to help troubleshoot.

Low Temp Cut-Off

DC HOUSE 128V 100ah lifepo4 battery has upgraded Low Temperature Cut-Off Protection. When the temperature sensor of 100Ah lifepo4 detects that the temperature is below 32℉, the BMS will cut off the charging function, cut off the discharge when it is below -7.6℉, and automatically recover after the temperature rises to 0℉. Effectively protect the 12.8V 100Ah battery and extend the battery life.

Safer Metal Fixtures

The internal battery cells of 100AH lithium batteries are fixed by metal clamps. Compared with other simple methods of fixing battery cells, the metal clamps can better stabilize the battery cells and ensure safety under various circumstances. In addition, when paired with A-grade battery cells, it can effectively extend the battery life by 30%.Up to 15,000 cycles and a service life of 10 years.

Automatic BMS

The built-in Battery Management System (BMS) protects your battery from overcharge and Discharge, Current, and Short Short-circuiting, for increased performance and longer life. The BMS will automatically cut off the battery and the voltage will drop below 1V.

Attention and Service

DC HOUSE is committed to providing 3 years of reported service for every battery sold. If you need help, please get in touch with us through Amazon or the after-sales address in the manual. We will provide professional and complete advice on battery connection, charging, and discharging
