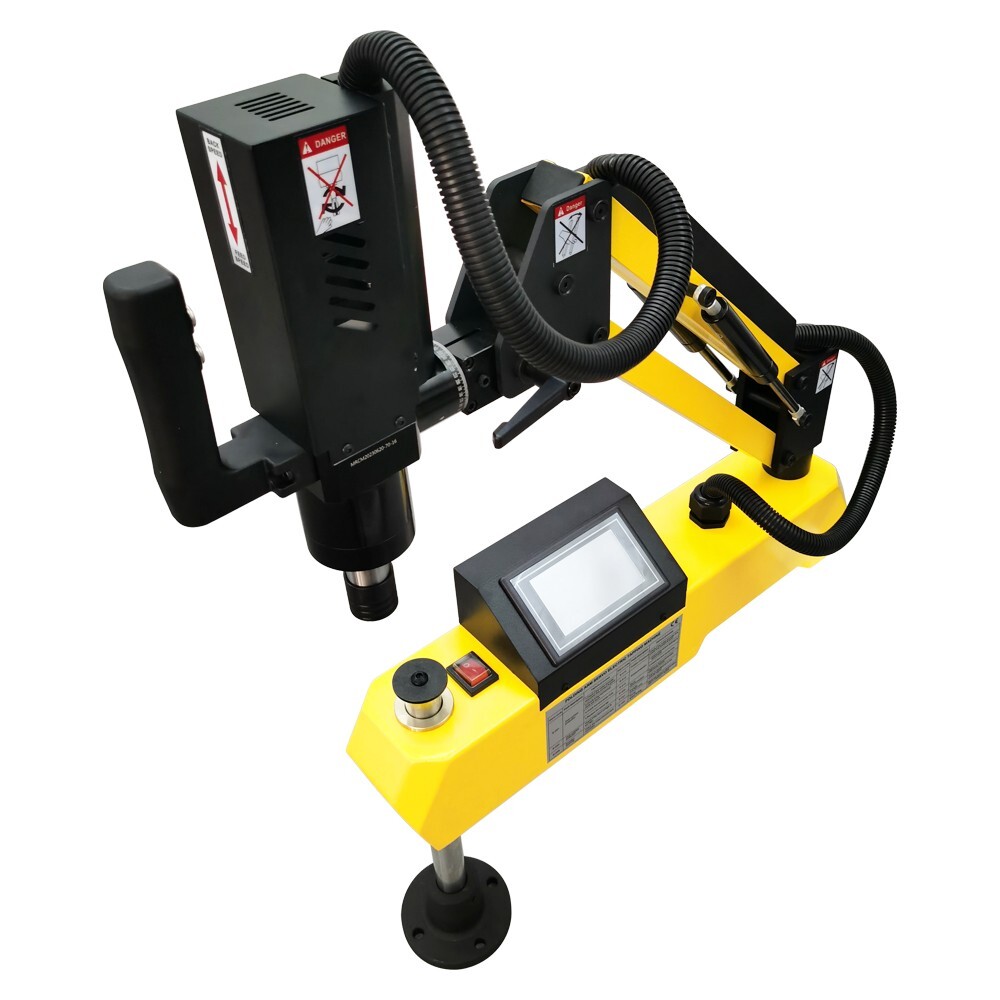

110V 600W M3-M16 Multi-directional Folding Arm Touch Screen Tapping Machine

Slide Slide Slide Slide Slide Slide Slide Slide Slide Slide Slide Slide Slide Slide Slide Slide Slide Slide Slide Slide Slide Slide Slide Slide
$787.0
Brand
Maisutseb®
Speed
0-312rpm
Torque
32N.m
Voltage
110 V
Color
Yellow
MPN
M056868
Chuck type
GT12
Power
600W(0.8HP)
Bearing scope of thread
M3-M16
UPC
198462419017
condition
New

新建网页 6
https://topseller365.com/data/prd1/056/868/056868.tou.jpg

110V 600W M3-M16 Multi-directional Folding Arm Touch Screen Tapping Machine
Maisutseb®

Product Overview

 https://topseller365.com/data/prd/056/868/2.jpg

This product is based on servo motor as power electric tapping machine, widely used in all walks of life all kinds of large and small machine and all kinds of materials, parts of molds and wood tap wire processing, the product is well-made, quality first-class, was deeply loved by the masses of customers and praise, are you tapping processing of choice.
Product Parameters
Bearing scope of thread: M3-M16
Voltage: 110V/60HZ
Power: 600W(0.8HP)
Chuck type: GT12
Working area: Horizontal:42.3"(1076mm)
Vertical:21.6"(545mm)
Speed: 0-312rpm
Torque: 32N.m
Collet: M3,M4,M5,M6-8,M10,M12,M14,M16
Color: Yellow
Package size: 32"*25"*8.7"(81CM*64CM*22CM)
Net weight/Gross weight: 53.5LBS(24.3KG)/73LBS(33KG)
Chuck Specifications
https://topseller365.com/data/prd/056/868/24.jpg
ISO(Metric) AxB JIS AxB DIN AxB INCH AxB
M2 2.80x2.25 M2 3.0x2.5 M2 2.5x2.1 1/8 4.0x3.15
M3 3.15x2.5 M3 4.0x3.2 M3 3.5x2.7 5/32 5.0x4.0
M4 4.0x3.15 M4 5.0x4.0 M4 4.5x3.4 3/16 5.5x4.5
M5 5.1x4.0 M5 5.5x4.5 M5 6x4.9 1/4 6.0x4.5
M6 6.3x5.0 M6 6.0x4.5 M6 6x4.9 5/16 6.2x5.0
M8 6.3x5.0 M8 6.2x5.0 M8 8x6.2 3/8 7.0x5.5
M10 8.0x6.3 M10 7.0x5.5 M10 10x8 1/2 9.0x7.1
M12 9.0x7.1 M12 8.5x6.5 M12 9x7 9/16 11.2x9.0
M14 11.2x9.0
