【Specification】[Capacity]:10T/22046 LBS; [Storke]: 100mm/4inch; [Outside Diameter]: 64mm/2.52inch; [Inner Diameter]: 44mm/1.73inch; [Oil Storage]: 151cm³; [Effective area]: 15.1c㎡.
【Durable Material】: This hydraulic cylinder jack is made of heavy-duty metal construction, which is noted for it's durable and long-lasting use. In addition, the product surface is painted to prevent scratches and corrosion.
【Easy to Use】: Our product adopts light and compact design. It is easy to carry there are two holes on the surface of the oil vat for stability. Plunger eiper reduces contamihation.Exteding cylinder life.
【Smooth Surface】：The hydraulic ram cylinder has a smooth round, textured surface design to provide you with reliable support during work.
【Widely used】: It has a wide range of applications, and is suitable for narrow working space, such as riggers, fabricators, welders, and automotive body and frame shops in electric power, chemical industry, steel, Bridges, machinery, and other industries, etc.

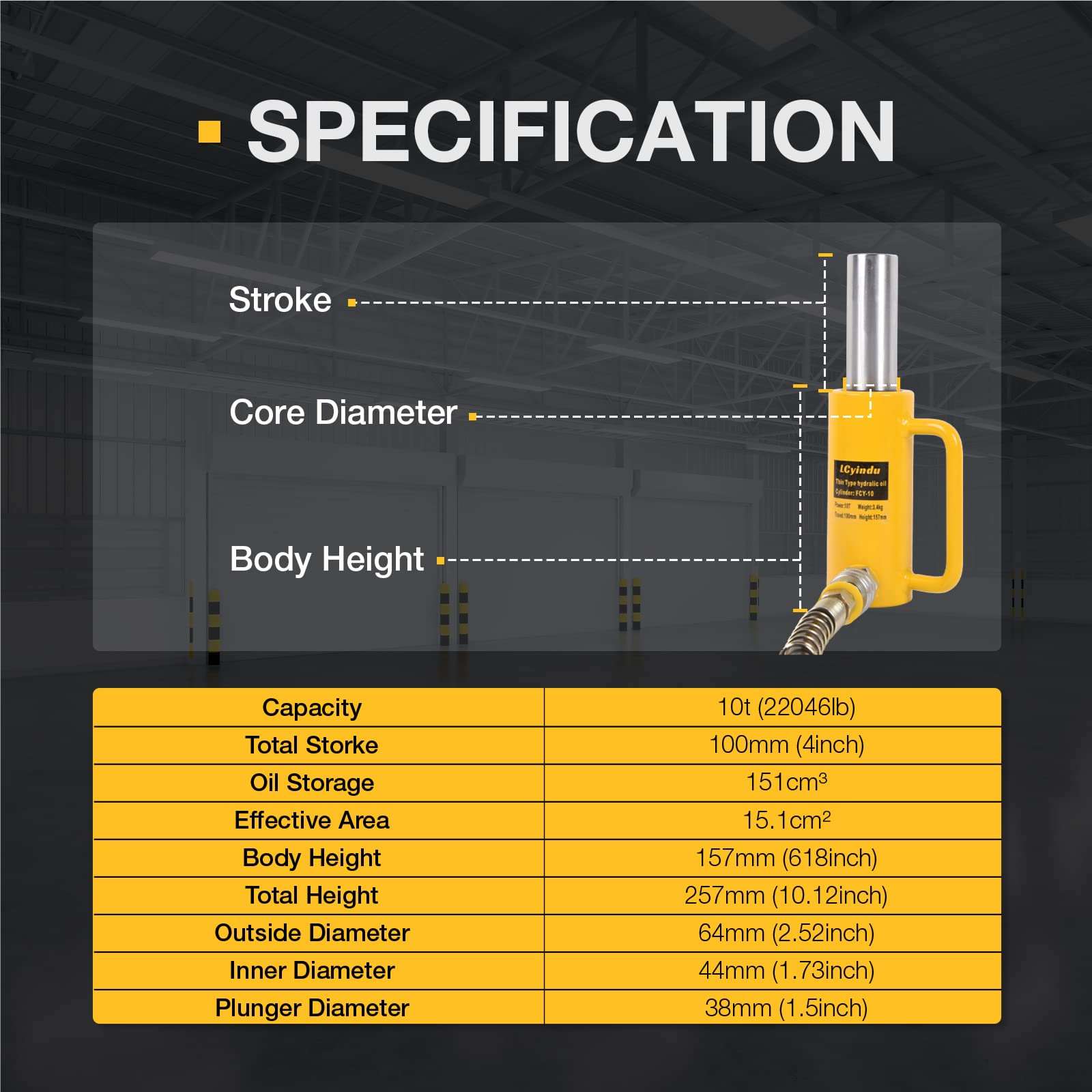

Specifications:

Capacity: 10T/22046LBS
Total Storke: 100mm(4inch)
Oil Storage：151cm³
Effective area：15.1C㎡

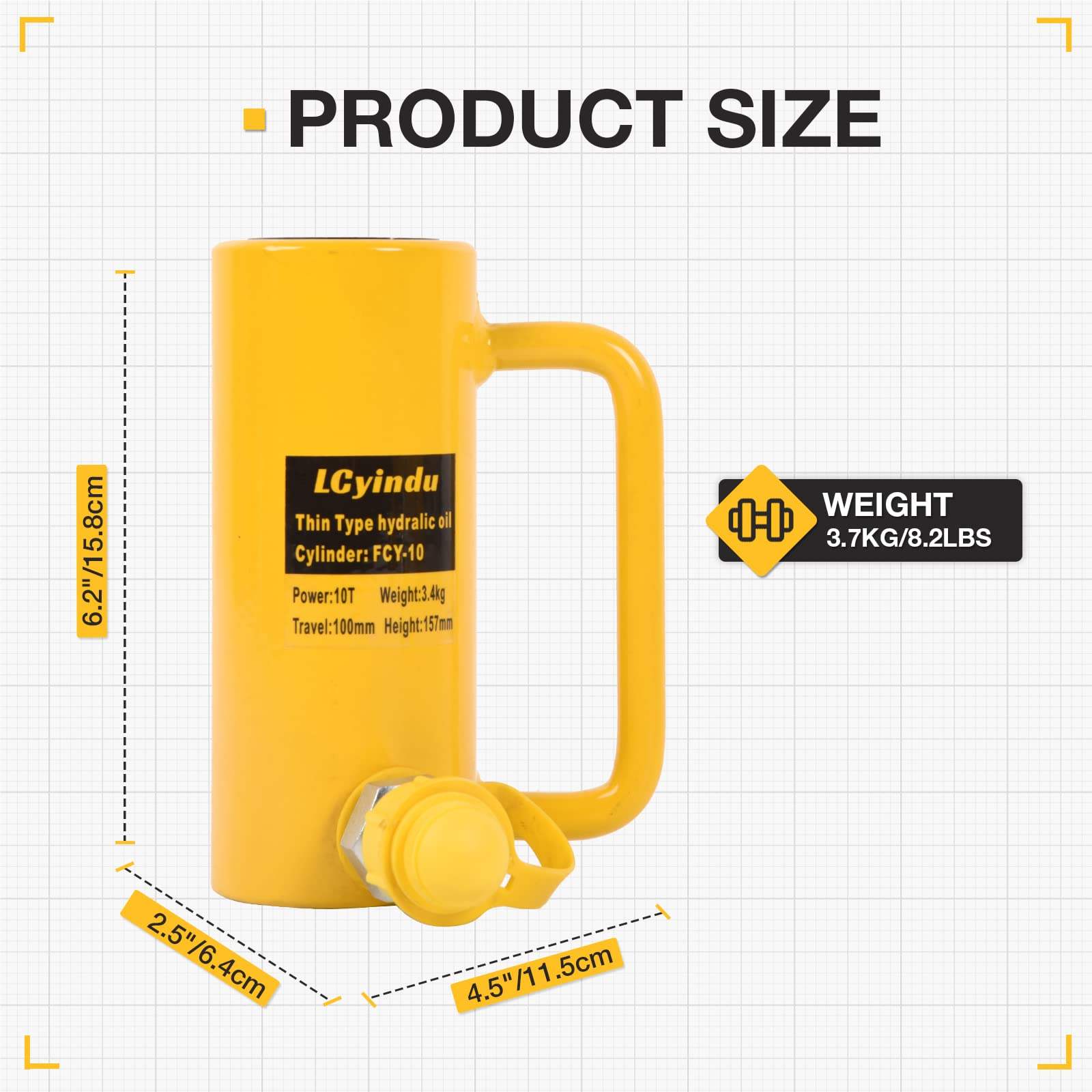

Body Height: 157mm(618inch)
Total Height: 257mm(10.12inch)
Outside Diameter: 64mm(2.52inch)
Inner Diameter: 44mm(1.73inch)
Plunger diameter: 38mm(1.5inch)

Package Dimension: 7.9 x 5.9 x 4.9 inch / 20 x 15 x 12.5 cm
Package Weight: 4 kg / 8.8 lbs

lt is easy to carry there are two holes on the surface of the oil vat for stability.

Plunger eiper reduces contamihation.Exteding cylinder life.

Light weingt,low profile design for use in confined spaces.

Baked enamel finish for increased corrosion resitance.

Package Content:

1 x Hydraulic Cylinder Jack
1 x Seal Ring

10T 4" Stroke Hydraulic Cylinder Jack Solid Single Acting Hydraulic Lifting Jack
