10pcs/pack Outdoor LED Display P10 Medium 32x16 RGB LED Matrix Panel

Slide Slide Slide Slide
$319.09
Scanning mode
1/4 Scan constant current drive
Pixel density (dots /m2)
10000
Minimum viewing distance(m)
≥10
Input voltage (DC)
4.8-5.5V
Brightness (cd/m2)
≥7500
Pixel structure
1R1G1B
Number of modules per square meter (PCS)
19.53
Pixel pitch (mm)
10
LED Package
LED Package
Module interface
Module interface
Angle of view (degree)
≤120°
Type
P10
MPN
0349002087200
Brand
Calca
Module Size (mm)
Module Size (mm)
Module Resolution (dots)
Module Resolution (dots)
UPC
8414830982450
condition
New



10pcs/pack Outdoor LED Display P10 Medium 32x16 RGB LED Matrix Panel (12.6" x 6.3" x 0.5")

Product advantage:
1. Super bright LED and plastic quality
2. High contrast can achieve good results
3. Weight is easy to install and remove
4. Single point, single light maintenance, low cost
5. Constant current mode is used to drive LED, even light, low power consumption.
6. Beads glue dispersing agent (DP), surface spray. The point light source into surface light source, to ensure consistency of better visual effect, more plump, soft.
7. 100% new material support rubber shell (PPA), seal

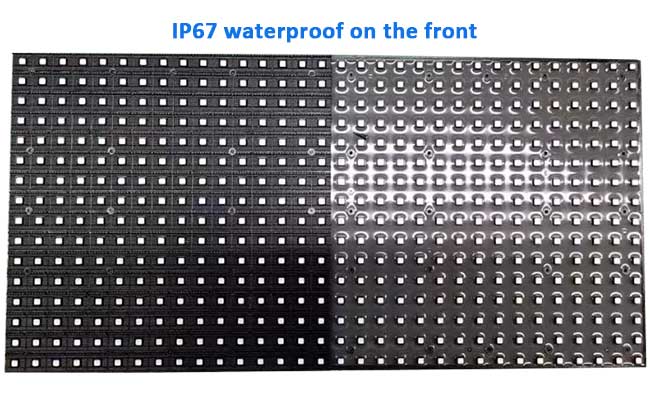

Outdoor LED Display P10 Medium 32x16 RGB LED Matrix Panel

LED parameter
Color LED Package Brightness Wave Voltage Test condition
R 3IN1

SMD

3535		 500 624-629nm 1.8-2.4V 25°C 20mA
G 1380 523-528nm 3.0-3.6V 25°C 20mA
B 295 464-469nm 3.0-3.6V 25°C 20mA


Screen parameters



Type P10
Pixel pitch (mm) 10
Pixel density (dots /m2) 10000
Pixel structure 1R1G1B
LED Package SMD3535
Module Size (mm) 320*160
Module Resolution (dots) 32*16
Number of modules
per square meter (PCS)		 19.53
Minimum viewing
distance(m)		 ≥10
Brightness (cd/m2) ≥7500
Angle of view (degree) ≤120°
Scanning mode 1/4 Scan constant current drive
Module interface HUB75
Input voltage (DC) 4.8-5.5V
Maximum power (w/m2) 750
Average power (w/m2) 280
Module weight (g) 423
Gray level Recommended level 16384
Control mode Computer control, video synchronization, real-time display
Effective communication
distance without relay		 Non shielded twisted pair transmission distance of 100 meters, the maximum
  transmission of up to 130 meters
Frame changing frequency ≥ 60 rames/ second
Pixel out of control rate <0.0001（LED Industry standard: less than 3/10000）
Display color number 64G color (4096 gray levels under the condition of the number of colors)
Module brightness
uniformity		 >95%
Color temperature RGB color brightness through the software of 100 adjustable color
temperature can be regulated according to the needs
Contrast ratio Software 100 adjustable
MTBF MTDLF ≥10000Hours
Service life ≥50000Hours
Protection performance Over temperature / overload / drop / image compensation / various
correction techniques / over current / over voltage / lightning protection
Using ambient temperature Outdoor, -40 to 50°C
