100A MPPT solar charge controller Warm Tips:

1; Sequence of connecting the solar controller: first connect to the battery; then connect to the PV system; finally connect to the load device.

2; Do not connect inverters, wind turbines or AC chargers to the charge controller! Please connect the solar controller to the battery.

3; If the PV input voltage is less than 3V or less than the battery voltage. It may be seems to have been set.

4; Parameter setting: floating voltage > turn on low voltage again > discharge low voltage.

5; If the controller makes a buzzing sound because the controller is giving off heat. It will stop when the temperature returns to normal.

6; Make sure that the positive (+) and negative (-) terminals of the battery do not touch.

Lim ited Current Protection	100A
System Voltage	12V / 24V / 36V / 48V auto
Max PV Input Voltage	150VDC
Max PV Input Power	1500W/12V;3000W/24V;4500W/36V;6000W/48V
3 Charging Mode	Constand Current (mppt), Equalizing Charge, Floating Charge


solar controller Rated solar charging current: 100A Automatic 12/24/36/48V battery system 150Voc max PV input voltage	MPPT solar controller By using an intelligent MPPT algorithm, the solar charge controller can extract the maximum power from the solar system by determining the maximum power point of the system.	Automatic detection of the battery voltage: 12V System (DC8.7V-DC15.5V) 24V-System (DC16V-DC31V) 36V-System (DC33V-DC41V) 48V-System (DC42V-DC64V) PV-Nutzung: ≥99%	100A MPPT Solar charge controller with LCD display. Supports a wide range of lead-acid batteries, including flooded, AGM, GEL, LEAD, lithium-ion and custom batteries.

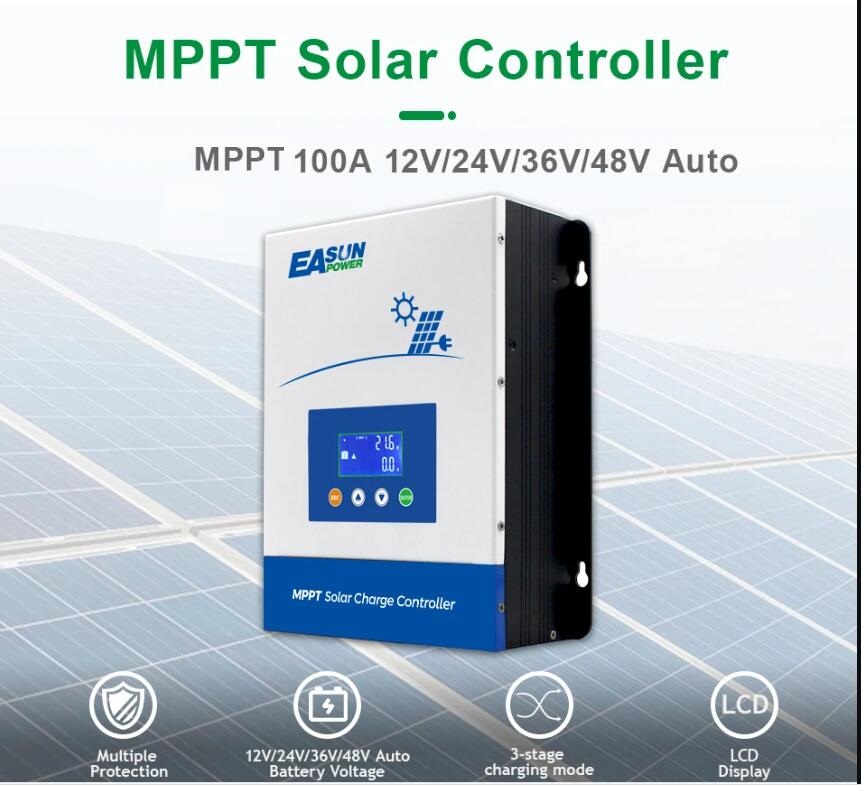

100A MPPT Solar Charge Controller 12V 24V 36V 48V PV Battery Regulator 150VOC
