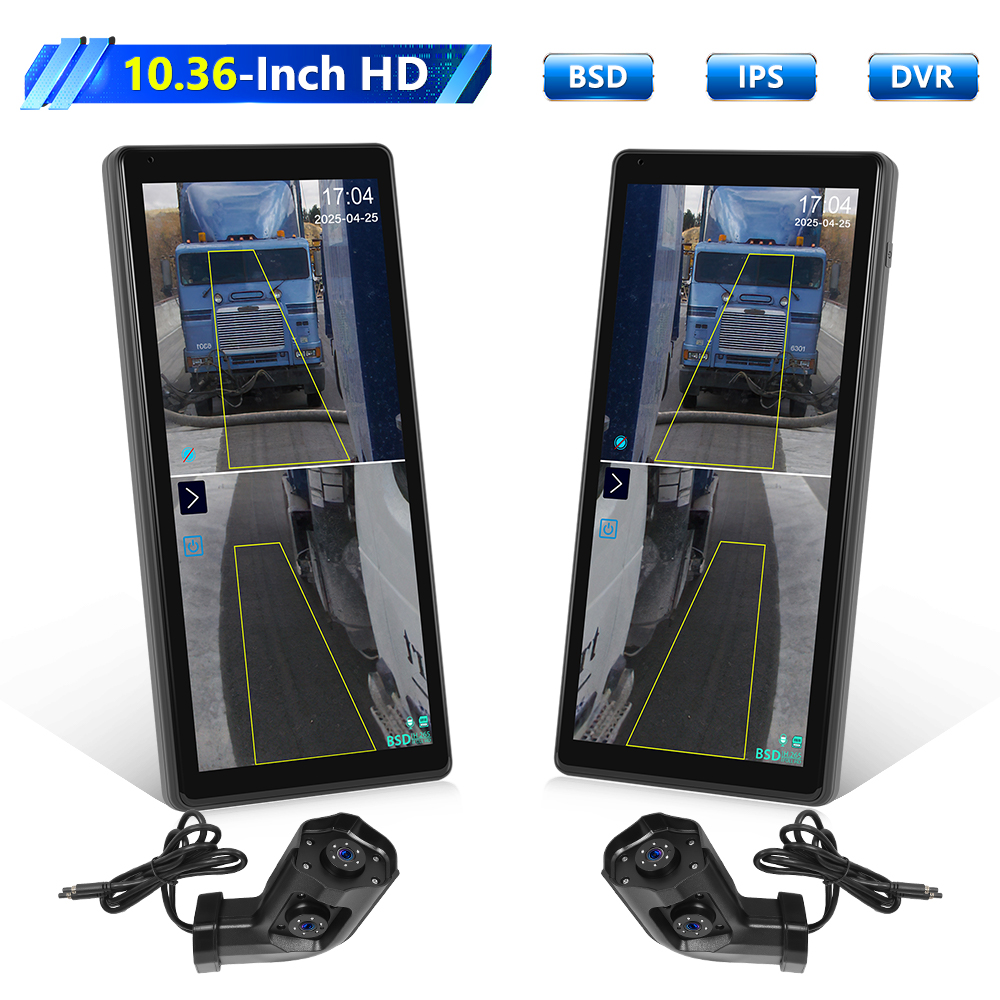

10.36" Monitor R L Side Electronic Rear View Mirror Camera For Side Blind Areas

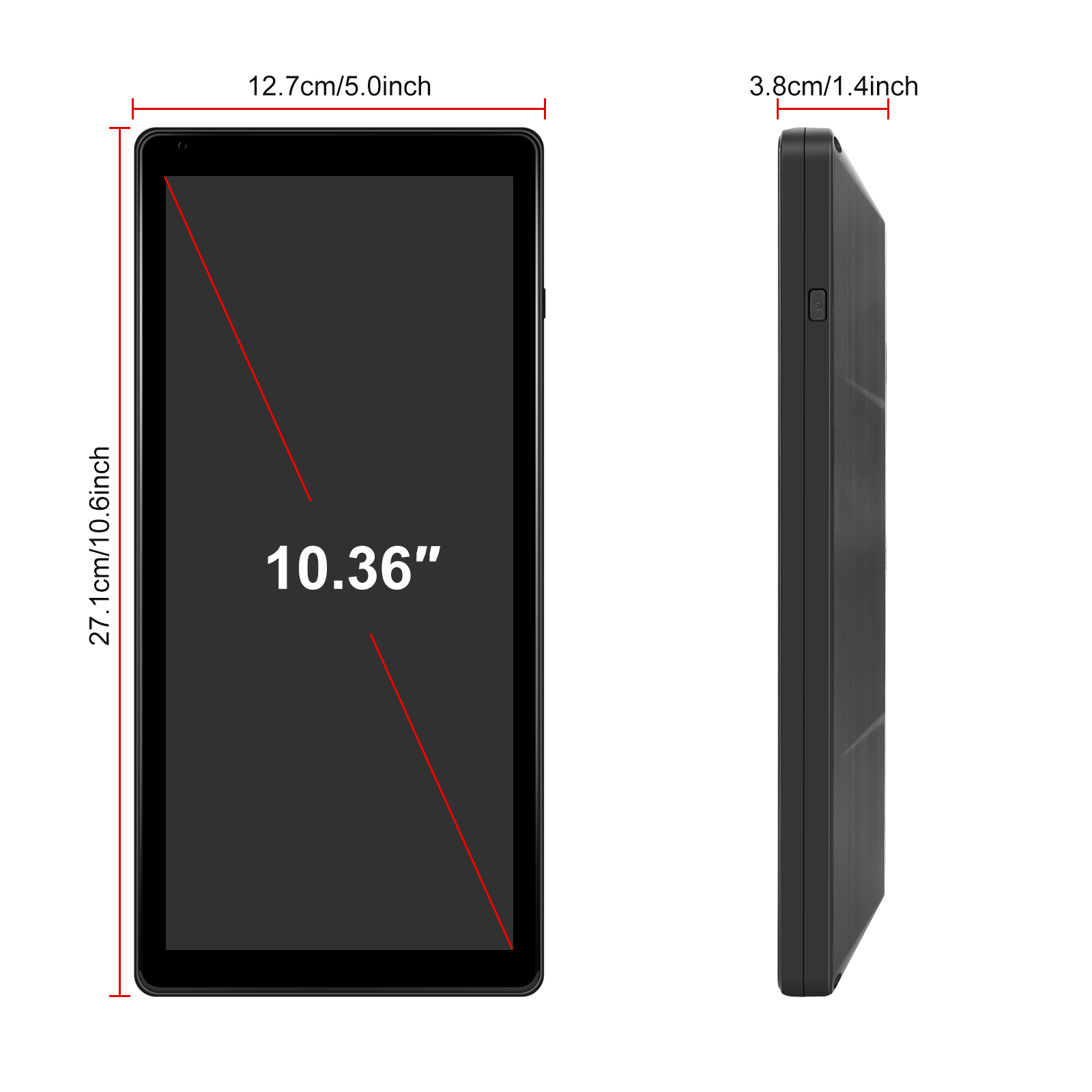

10.36-inch HD IPS screen

Equipped with an 10.36-inch oversized HD IPS display, not only the display area exceeds the traditional rearview mirror, but also provides better color reproduction and broad viewing Angle, whether it is strong daylight or night driving, to ensure a clear and delicate visual experience.

Standard dual-channel camera

the system has two built-in cameras, both the blind area and the rear view, to provide good road information for the driver.

Night and bad weather advantages of electronic rearview mirror

Compared with traditional optical rearview mirror, this product performs better at night or in bad weather such as rain and snow, with high image clarity, effectively reducing the safety risks caused by blocked vision.

Integrated DVR function
built-in driving recorder (DVR) function, automatic cycle recording high-definition video.
BSD blind zone detection system
Support BSD blind zone monitoring technology, through warning to remind drivers to pay attention to vehicles in the side and rear blind zone, reduce the risk of parallel collision.
Efficient loop recording
Automatically overwrites early videos without manual deletion, ensuring that storage space is always used for the latest driving records, achieving continuous and uninterrupted video recording.
Stability and anti-interference of wired transmission
For users who choose wired connections, the system also performs well, providing stable and efficient signal transmission and effectively resisting electromagnetic interference.

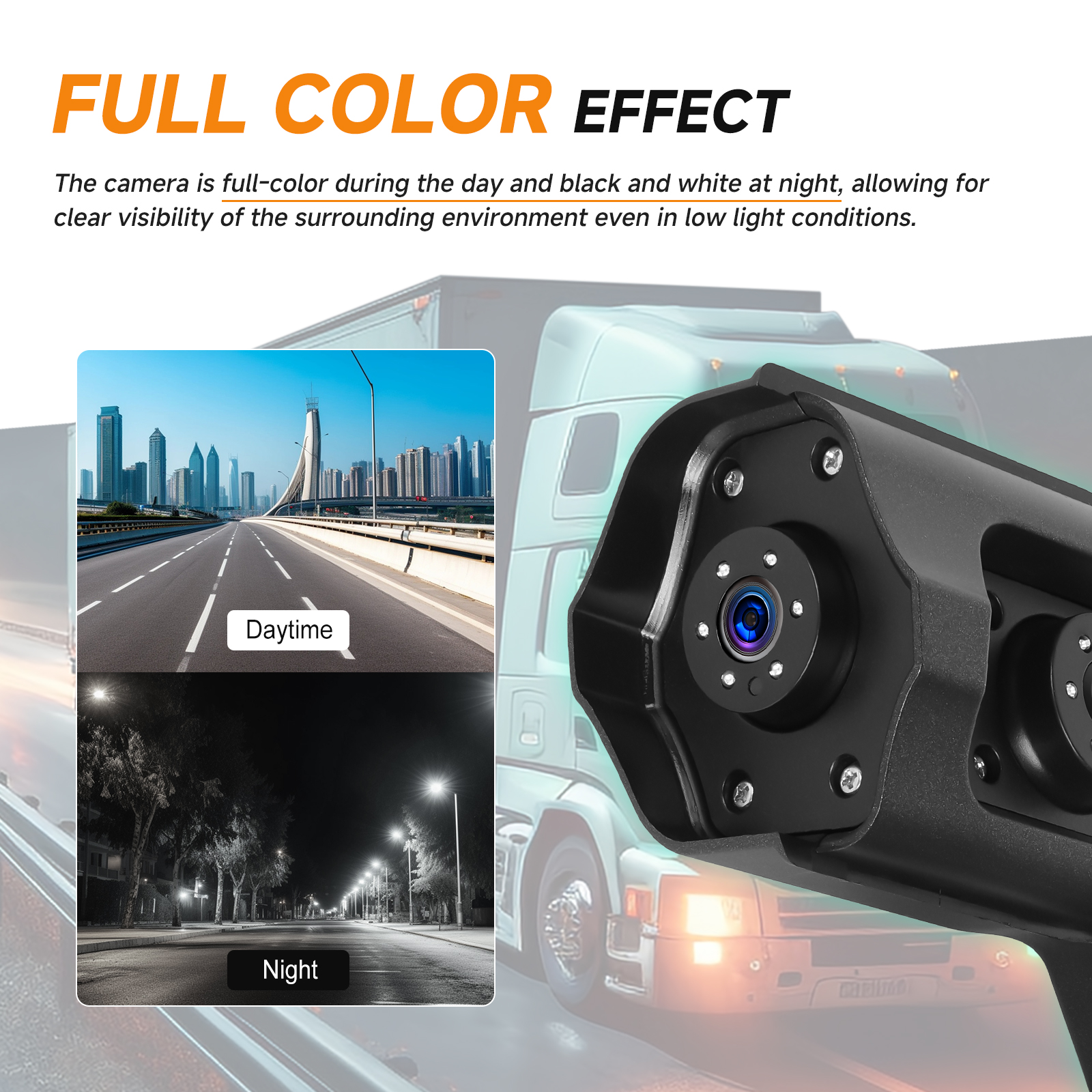

All-weather imaging capability
The camera is configured with automatic photosensitive adjustment, showing full-color images during the day, switching to black and white mode at night, enhancing the imaging effect in low-light environments, ensuring that the surrounding environment can be clearly observed under low light.

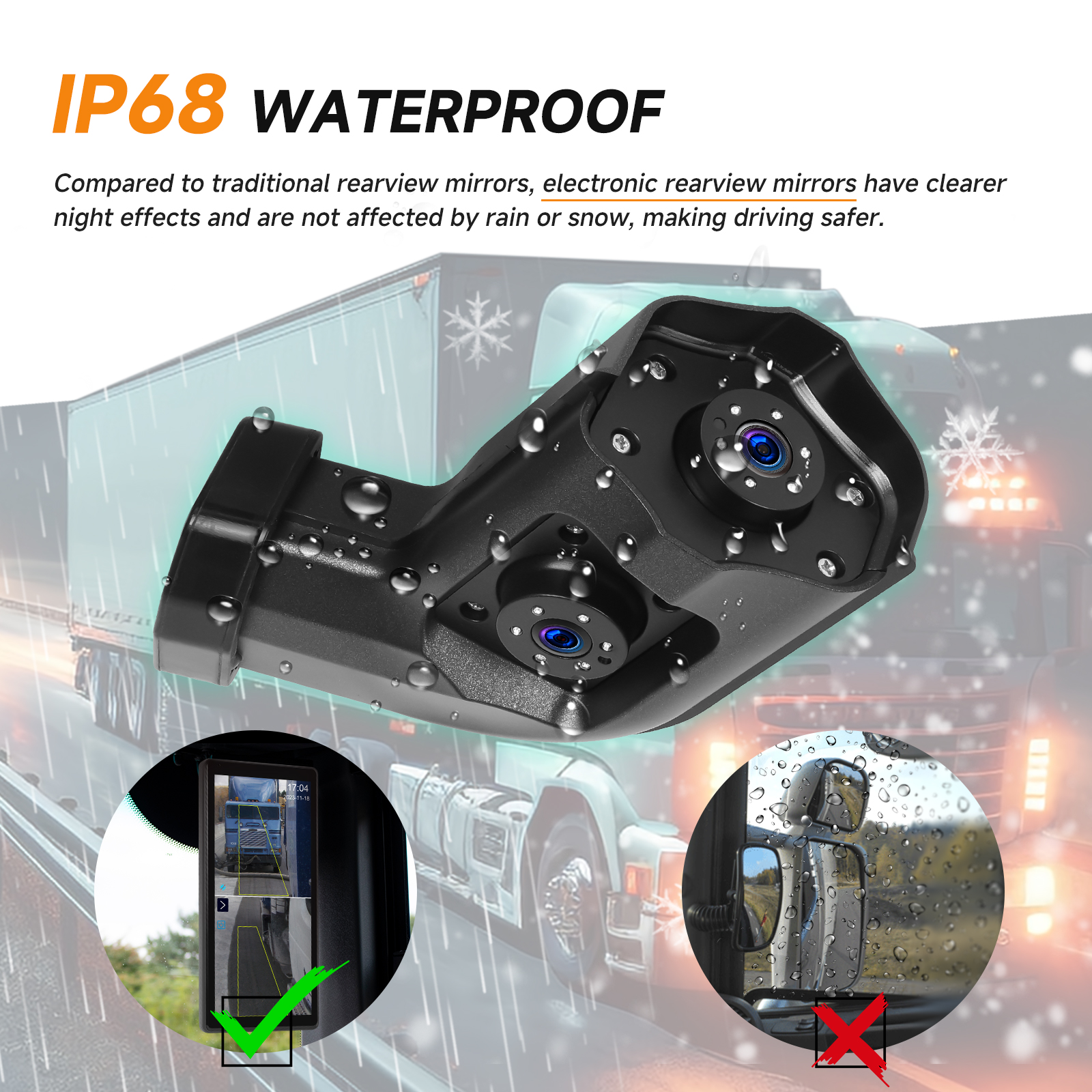

IP68 top waterproof rating
The camera component reaches IP68 waterproof and dustproof rating, whether it is rainstorm or sandstorm, it can ensure the internal components are safe and durable.
Ultra-wide Angle lens
the camera has a wide viewing Angle, reducing the blind area, improving the driving field of view, and ensuring driving safety.
Intelligent touch control
Support touch screen control, finger touch can complete the function Settings, improve the convenience and modern operation, make the driving process more smooth and unobstructed.
Spezifikation Details
Screen resolution 720*1600 IPS screen
Power supply voltage DC7V-32V
Power 7W
Built-in buzz 2W
DVR function Supported
BSD function Supported
Video Playback format TS format
Video compression format H.264

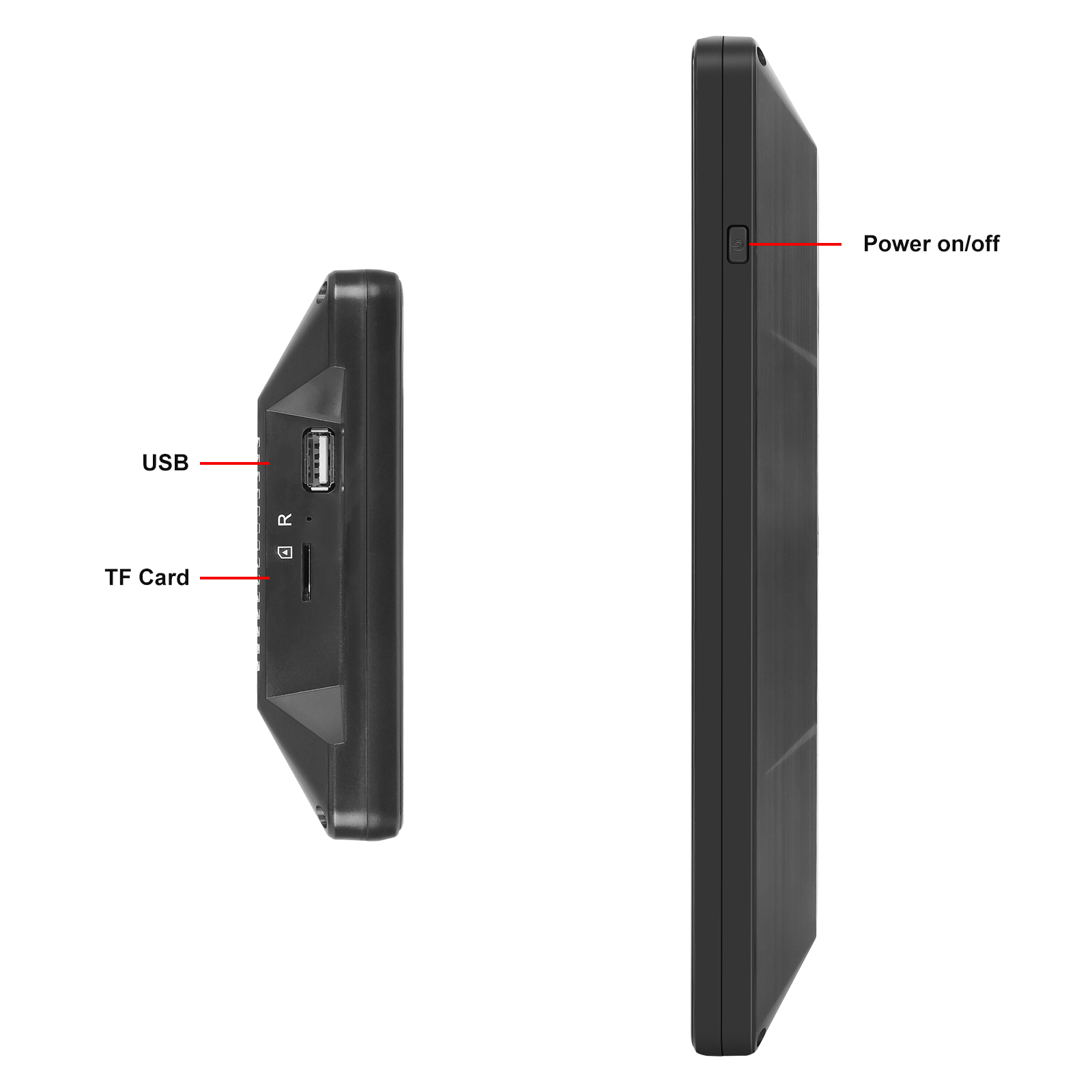

TF card Supports card recording
Loop recording 1/2 minute
Video watermarking switch
Time-lapse video Off /1/12/24 hours
Mute recording Switch
Screen sleep Off /10/30/60 seconds
Screen brightness Low/medium/high
Languages Chinese, English, Japanese and Korean
Volume 0/1/2/3/4
Key tone switch
Voice control Switch
Front view mirror switch
Restore factory defaults Supported
Formatting Supported
Software version View Supported
Time setting Supported
Screen adjustment Brightness/saturation/contrast
Video playback Supported
Standards PAL / NTSC
Video Output 1080P
Night Vision Image Automatic Control
waterproof IP68
Operation Temperature -22℉~176℉

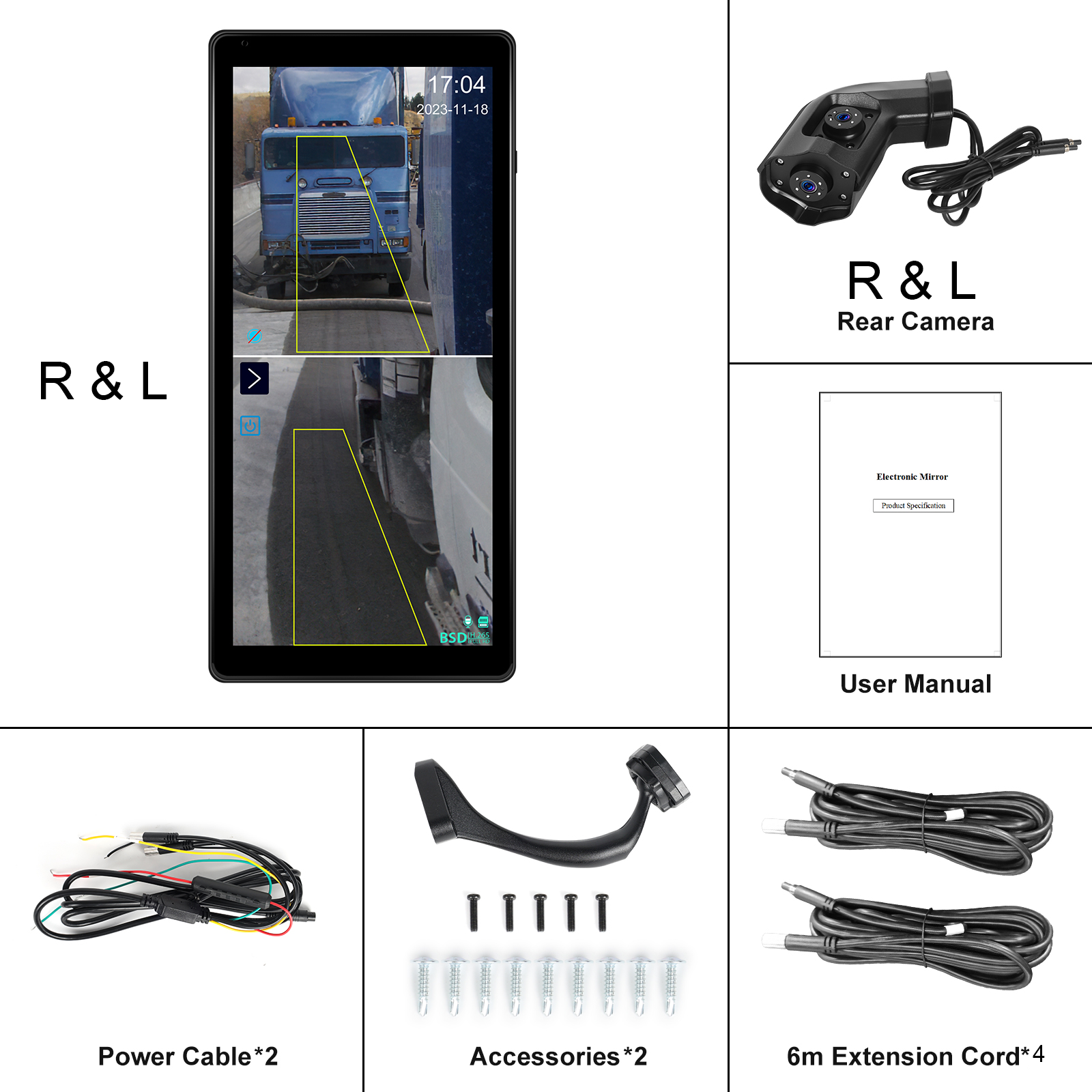

Package included：



2 × Display

2 × Camera

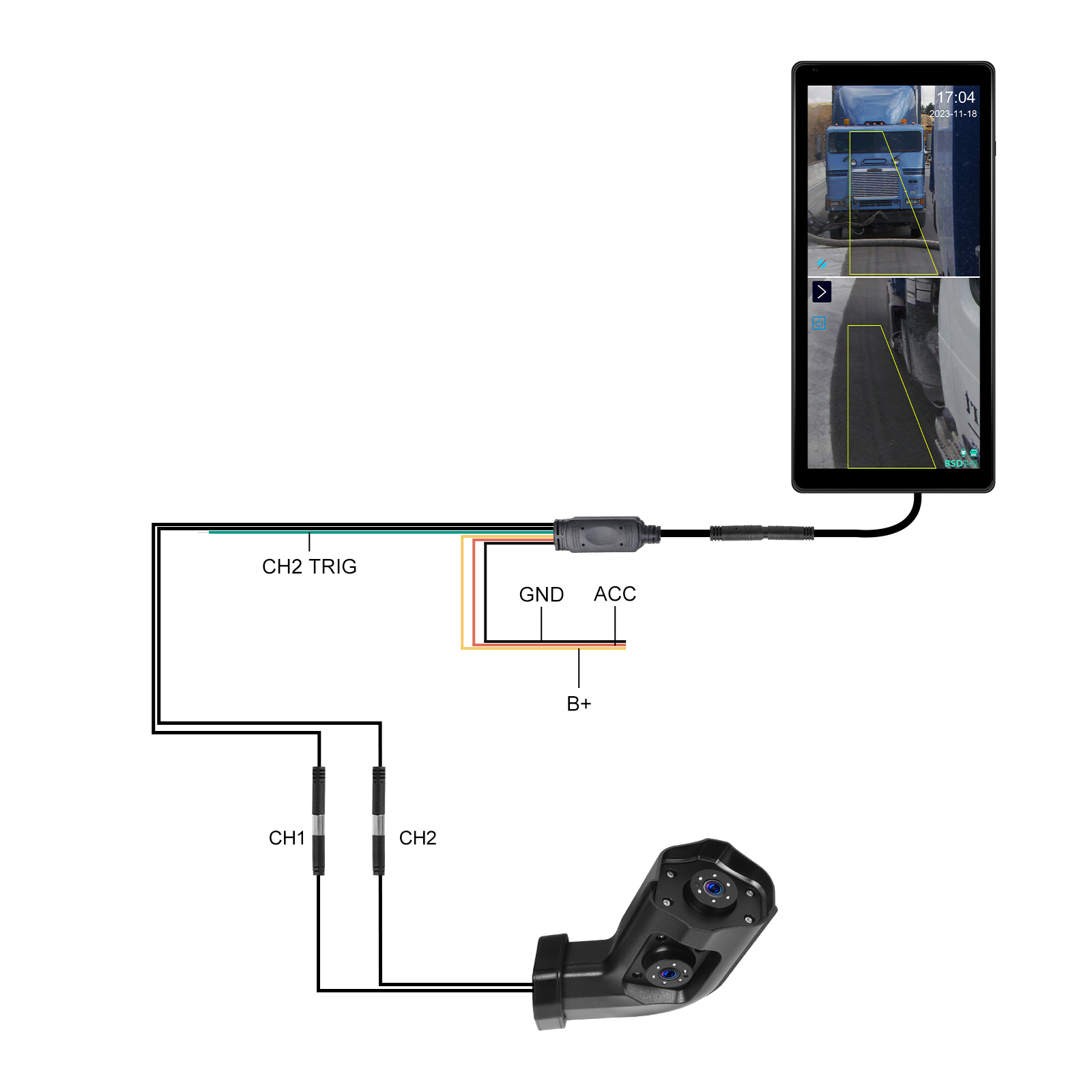

2 × Video line

2 × Support

1 × Specification

2 × Power cord
