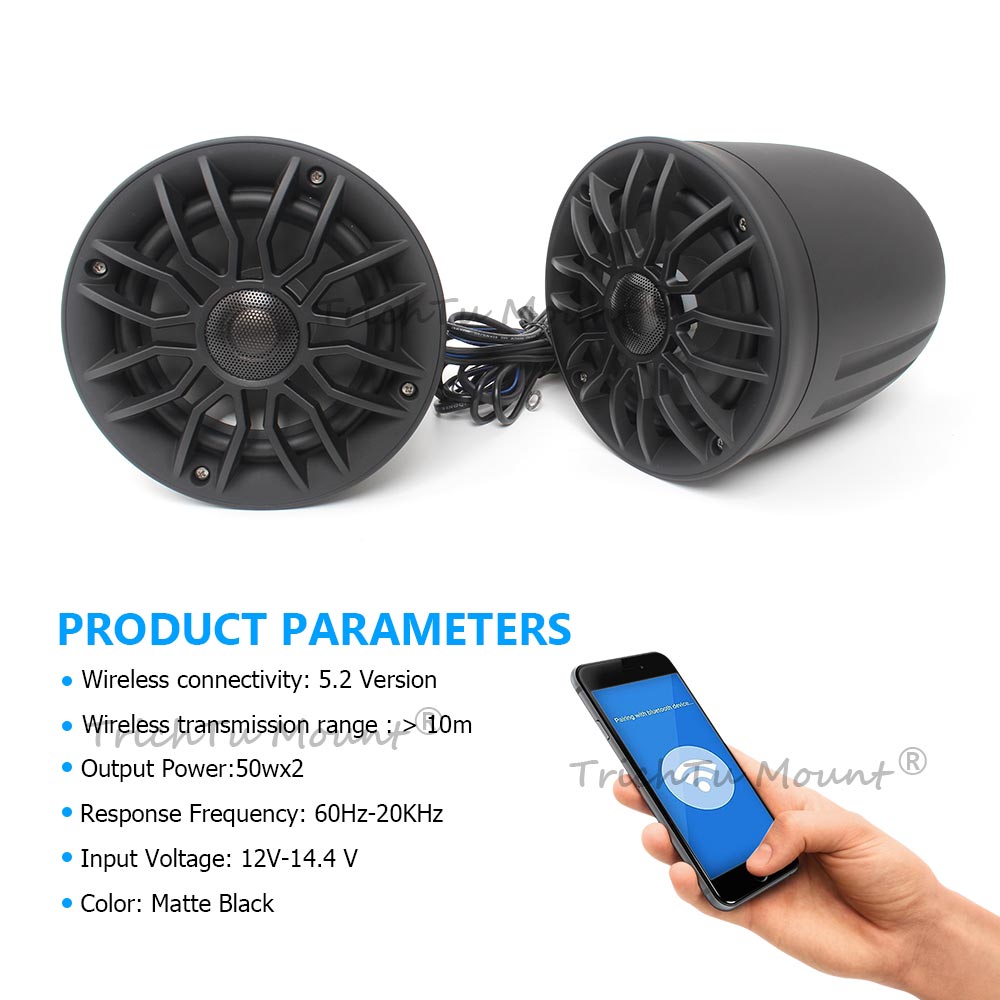

Specification:
Color: Matte Black

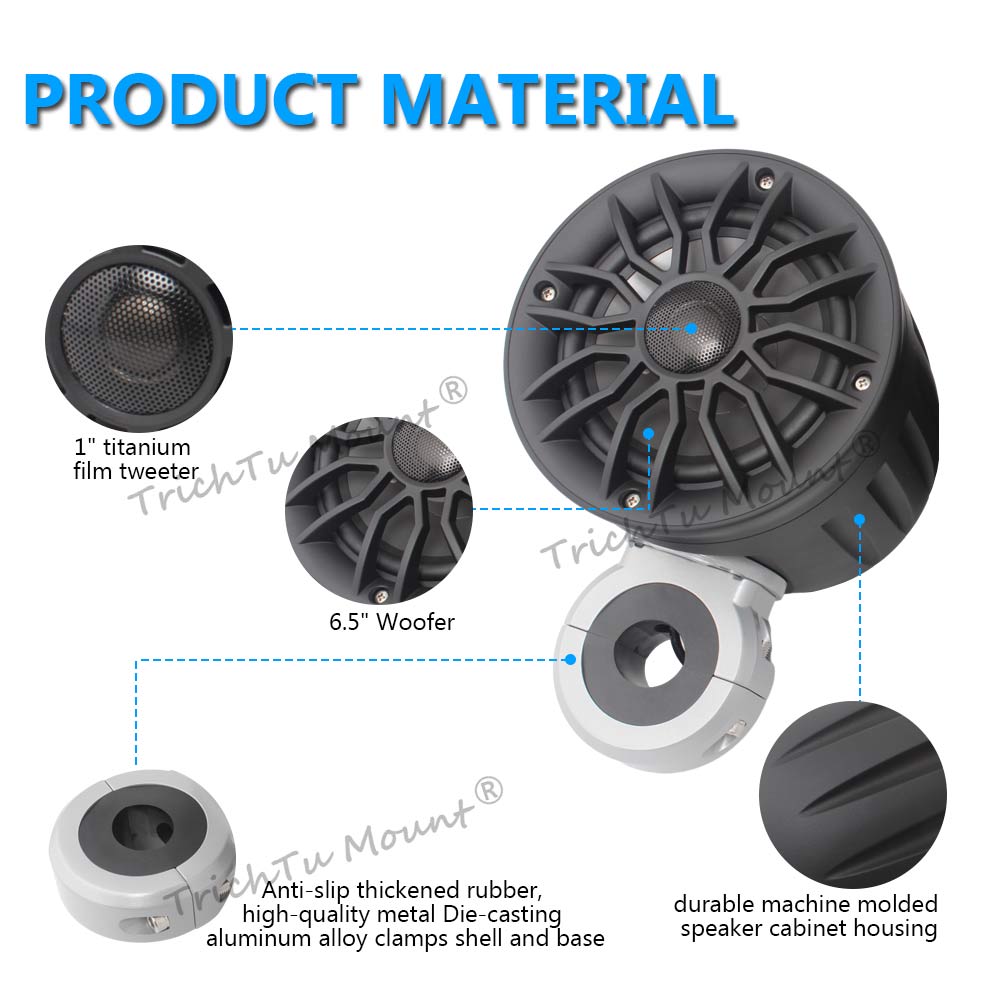

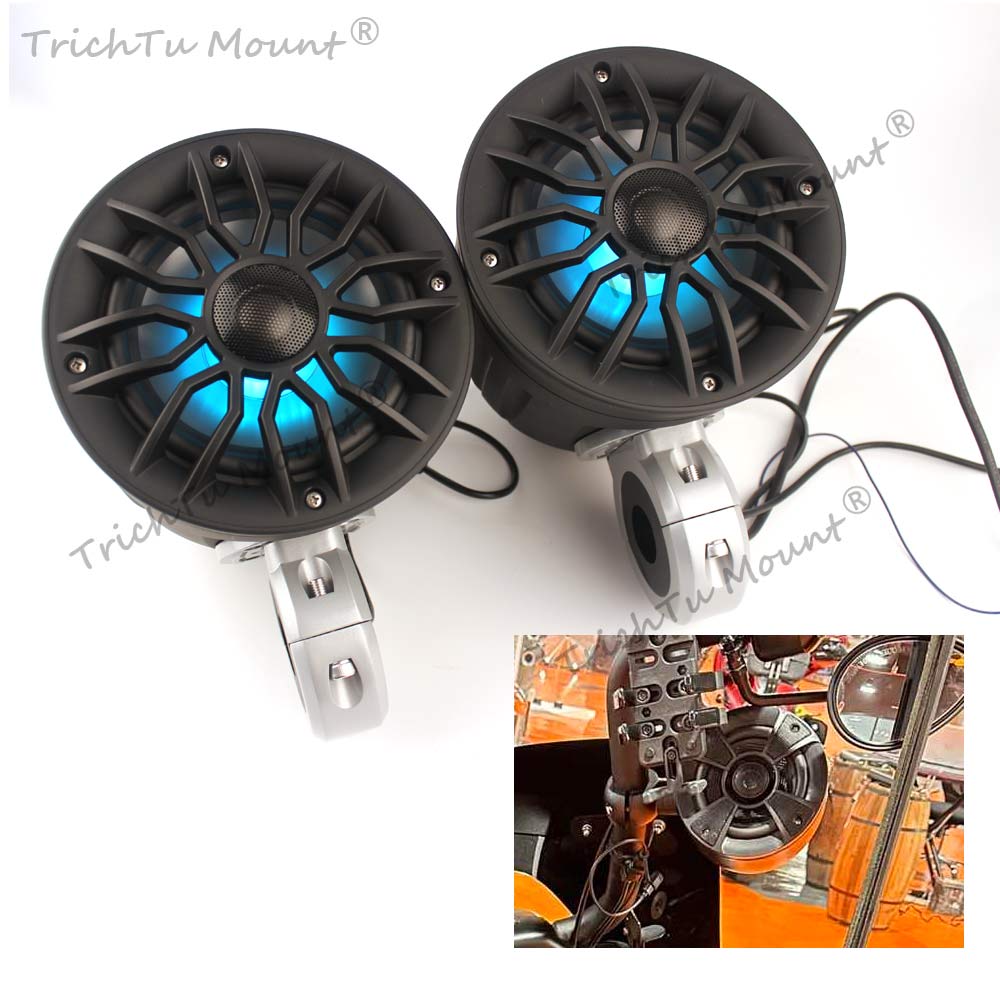

Speakers Unit：6.5" Woofer + 1" titanium film tweeter
(The advantage of titanium membrane tweeter is that the treble is clear and sensitive, and can provide more delicate sound quality performance. Compared to other materials, titanium membrane tweeters have a wider frequency range and are more natural. In addition, the durability and stability of titanium membrane tweeters are relatively high.)
Rubber Surround
Blue--teeth: 5.2 Version
Wireless transmission range : > 10m
Output Power:50wx2
Response Frequency: 60Hz-20KHz
Input Voltage: 12V-14.4 V
Speaker size:231x189x282mm

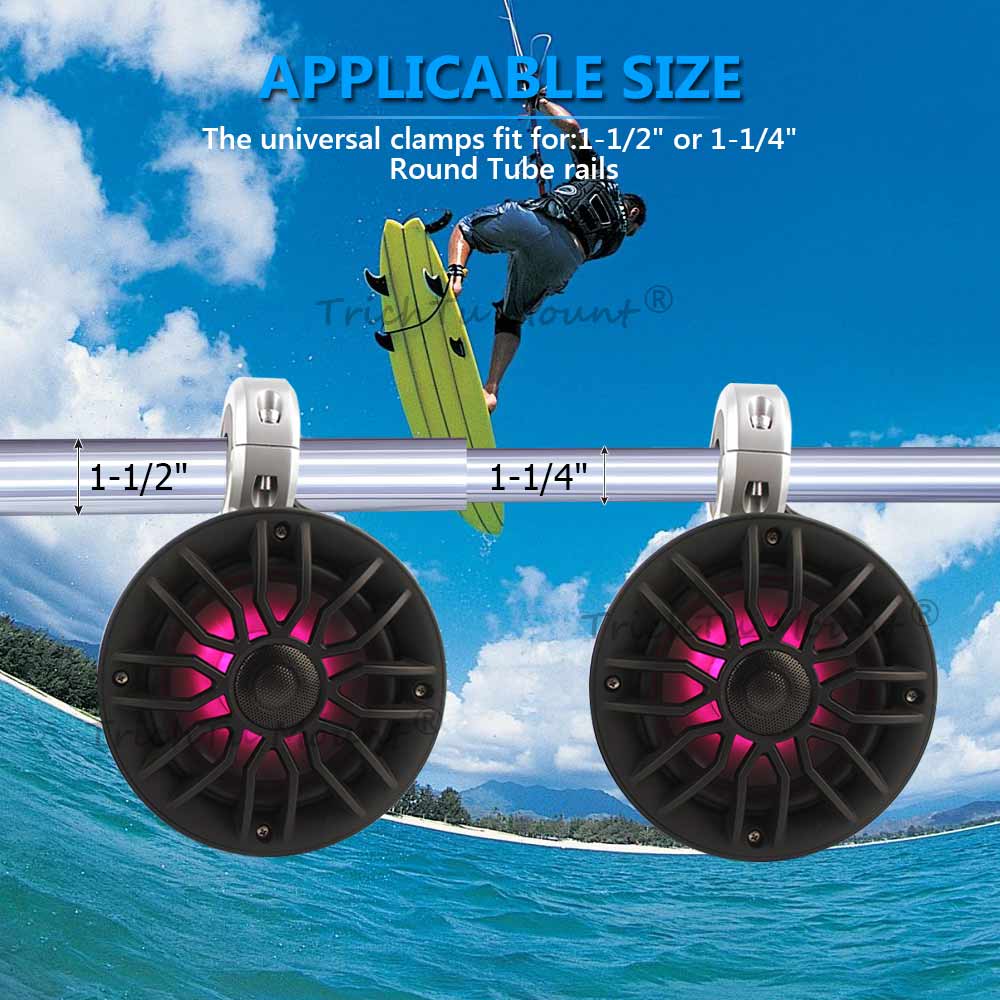

The universal clamps fit for:1-1/2" or 1-1/4" Round Tube rails

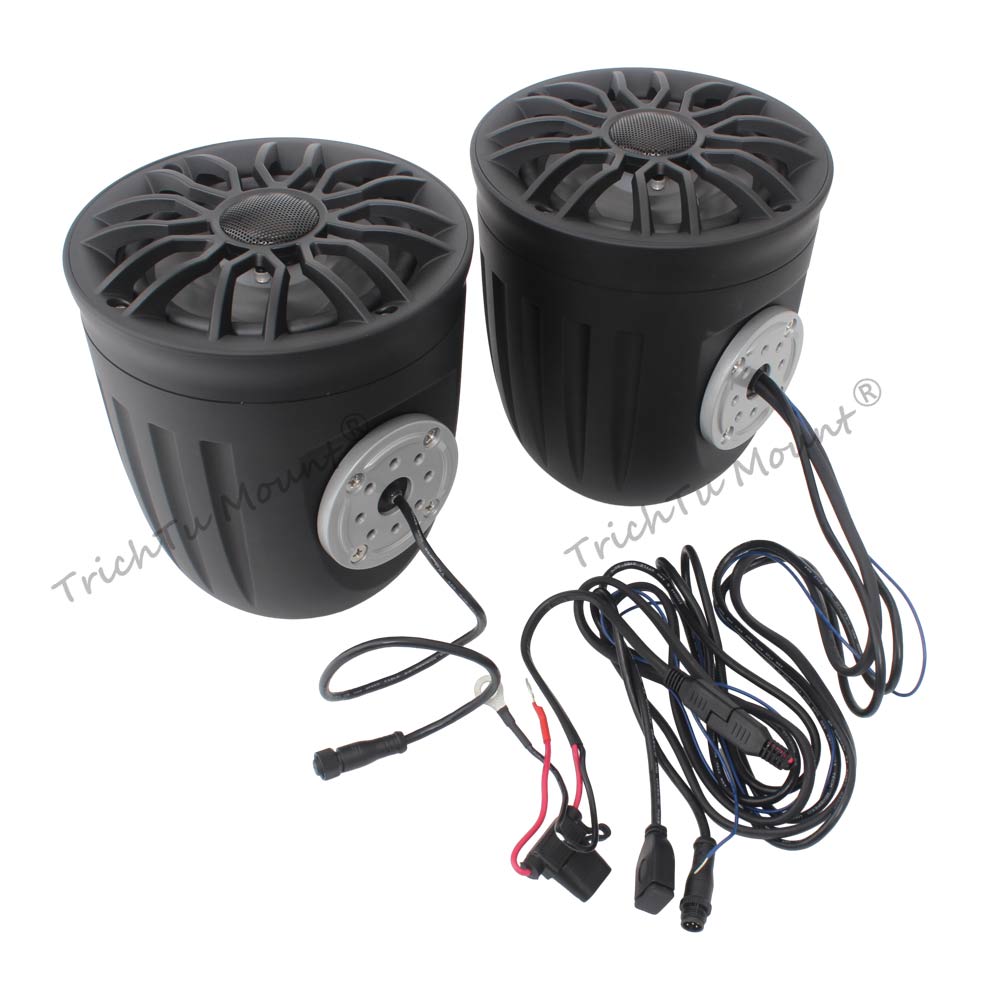

Cable connection:
a,Red wire: connector of the speaker is connected to the positive pole of the motorcycle's power supply
b,Black wire: connector of the speaker is connected to the negative pole of the motorcycle's power supply
c,Blue wire: ACC wire connector needs to be connected to the motorcycle's start switch line When the motorcycle start power
Important reminder: not to connect the wrong one, or else it will burn out the speaker's main board circuit
UV Stable
Water and dust rating :IP65
Support USB interface to play MP3
Equipped with wireless remote control
RGB style LED breathing light
Fuse specification: 15A
Remote control battery: CR2032
Feature:
1.AMPLIFY YOUR RIDE:
Brings audiophile grade components to the outdoors.Grade off-road speaker system is what you need to listen to high-quality audio on your Motorcycle,boat, ATV, UTV, quad, for Jeep or other vehicles!
2.HIGH PERFORMANCE,AMAZING SOUND:
Tuned by German senior tuning master,with titanium film dome tweeters and impressive bass performance for the best sound quality and bass response, speakers are louder and stronger than ever!The Ti- tweeter creates crisp brilliant highs engineered to be heard outdoors, even in a helmet…over the motor…haulin’ down the trails.

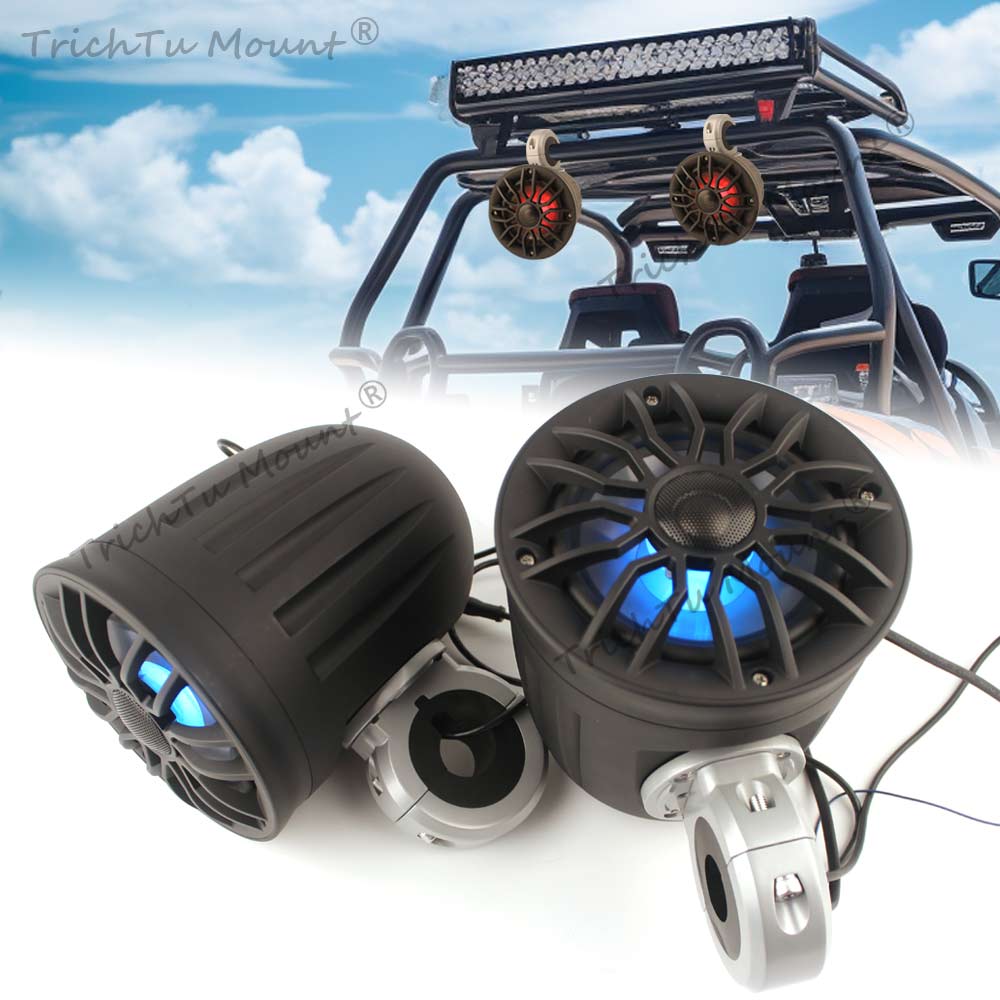

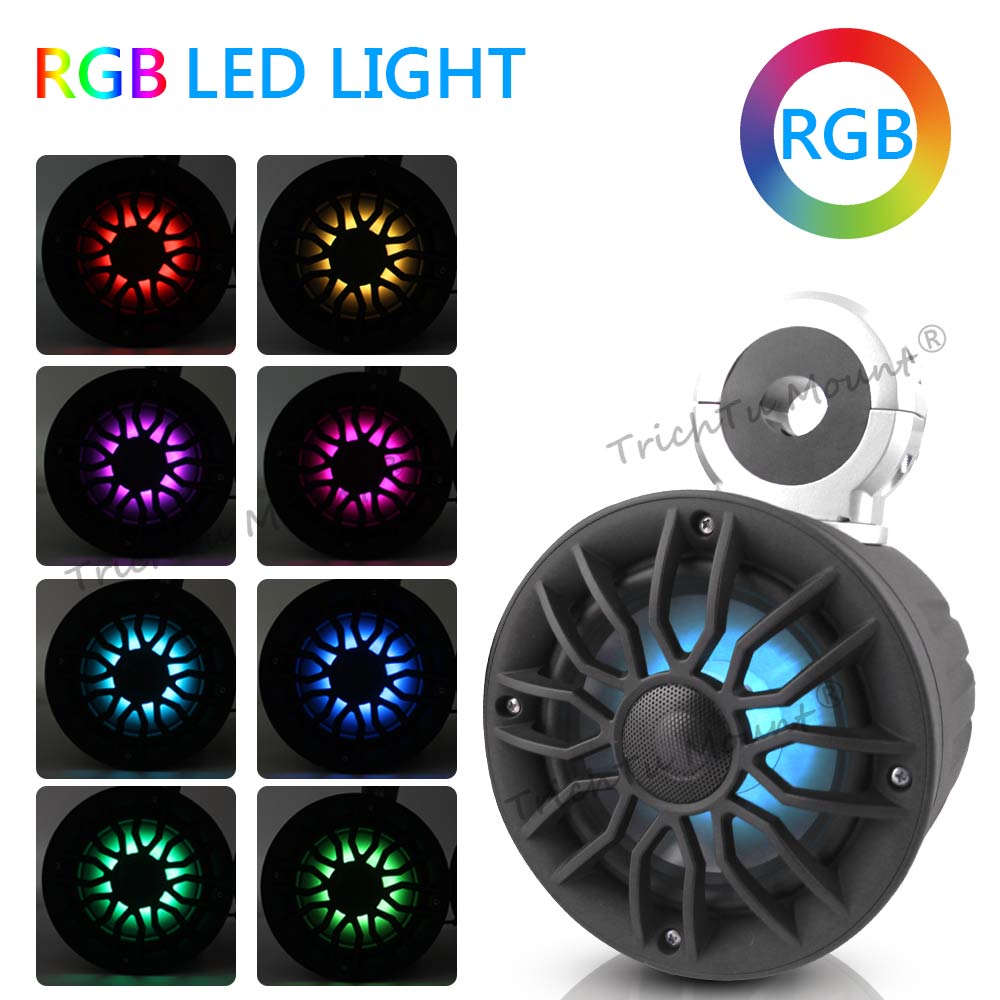

3.With RGB LED LIGHT:
Beat sync LED’s flash to the rhythm of the music,The louder the music the more intense the LED’s flash.It looks great, especially at night!
4.BLUE-TEETH-COMPATIBLE:
The pair of speakers are compatible w/ blueteeth for wireless audio streaming & works for w/ devices like iPhone, Android mobile phone or iPad. Equipped with wireless remote control,so you can crank and control your tunes wherever your outdoor adventures take you.It also support USB interface to play MP3.

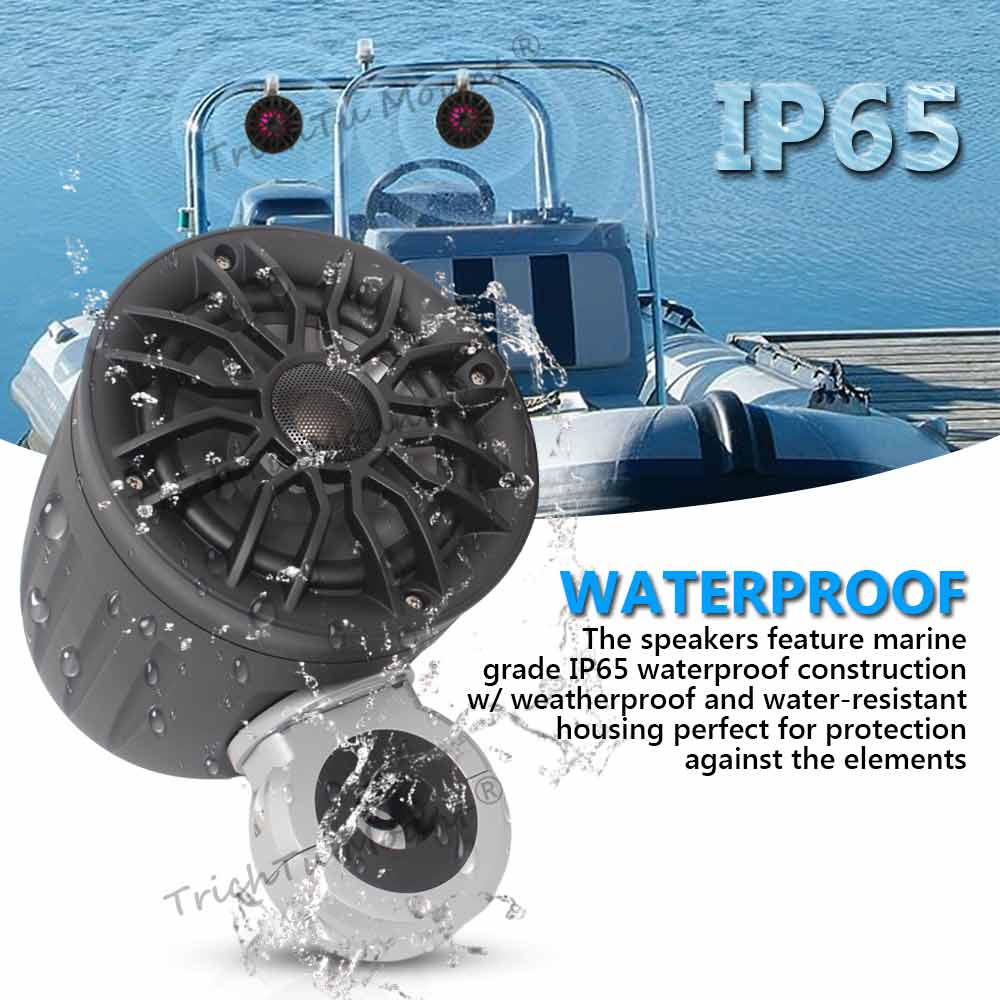

5.WATERPROOF CONSTRUCTION:

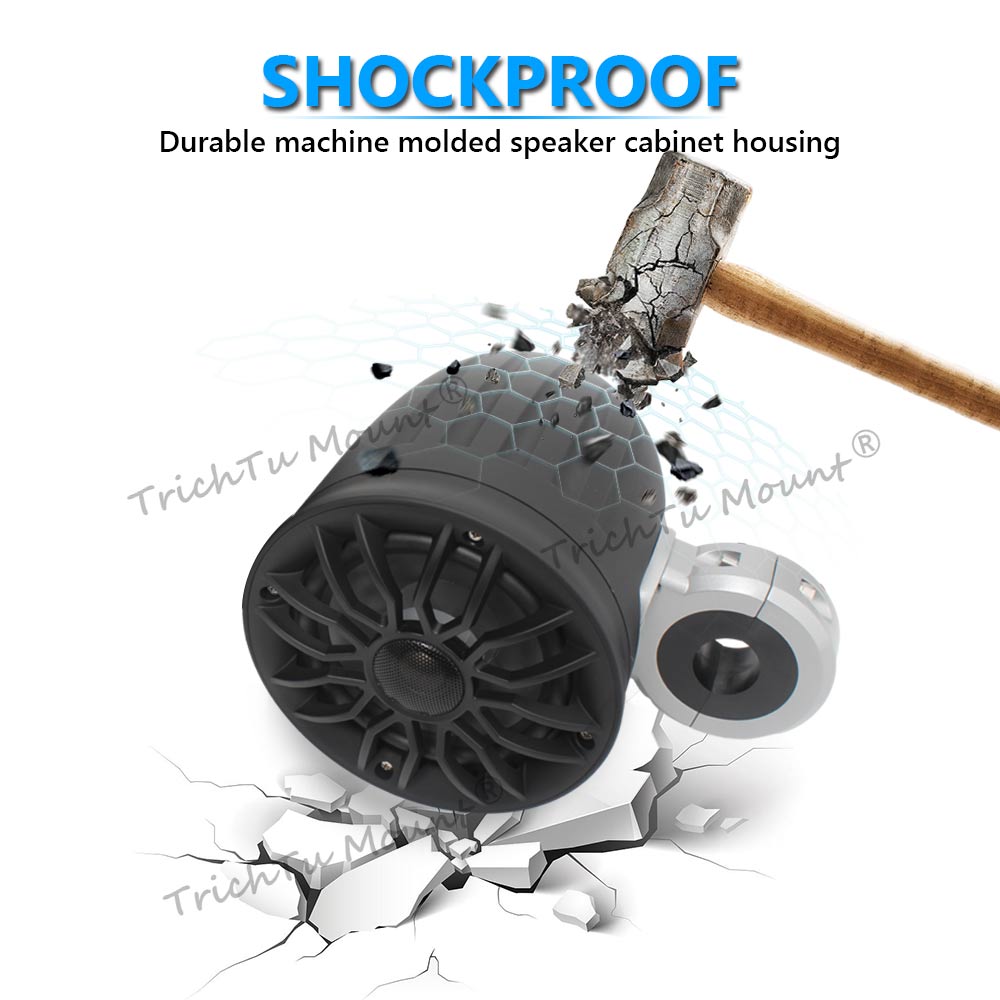

The speakers feature marine grade IP65 waterproof construction w/ weatherproof and water-resistant housing perfect for protection against the elements. It has a sleek design and durable machine molded speaker cabinet housing
6.STRONG AND DURABLE:
.Anti-slip thickened rubber, high-quality metal Die-casting aluminum alloy clamps shell and base, make the installation more solid and stable. Stronger redesigned clamping system and base to ensure the pods durability in rough waters or trails.

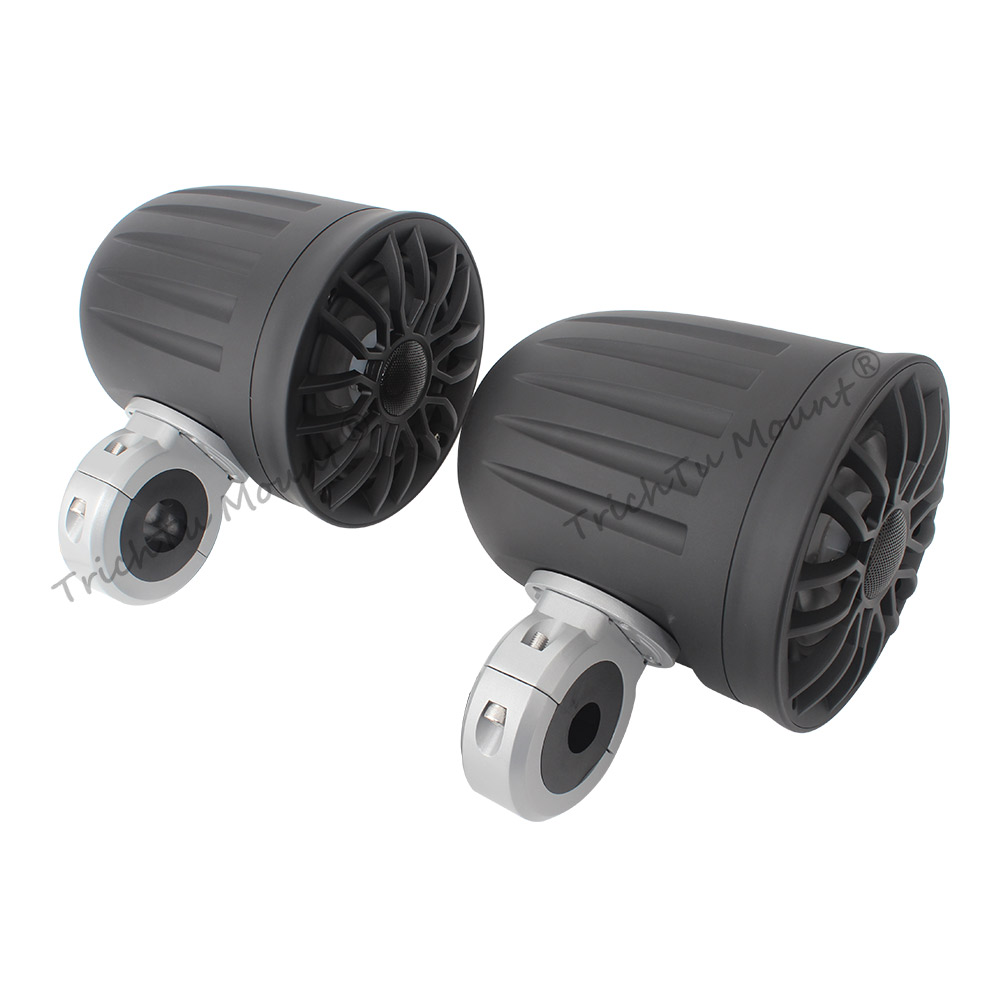

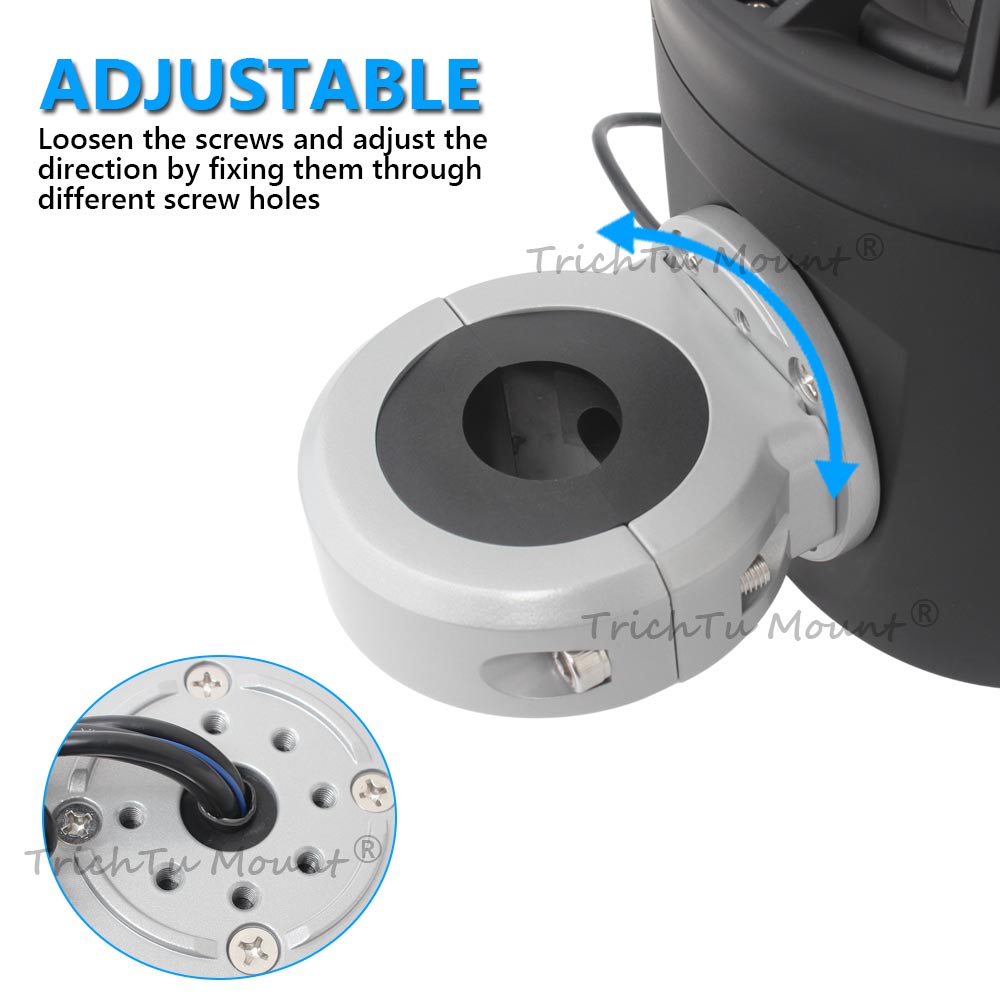

7.ADJUSTABLE
With the different screw holes, you can adjust the stereo to the angle you want.Swivel Mounting Clamps fits bars 1.25” or 1.5”,Great for ATV’s, UTV / Side-by-Side / SxS Cages

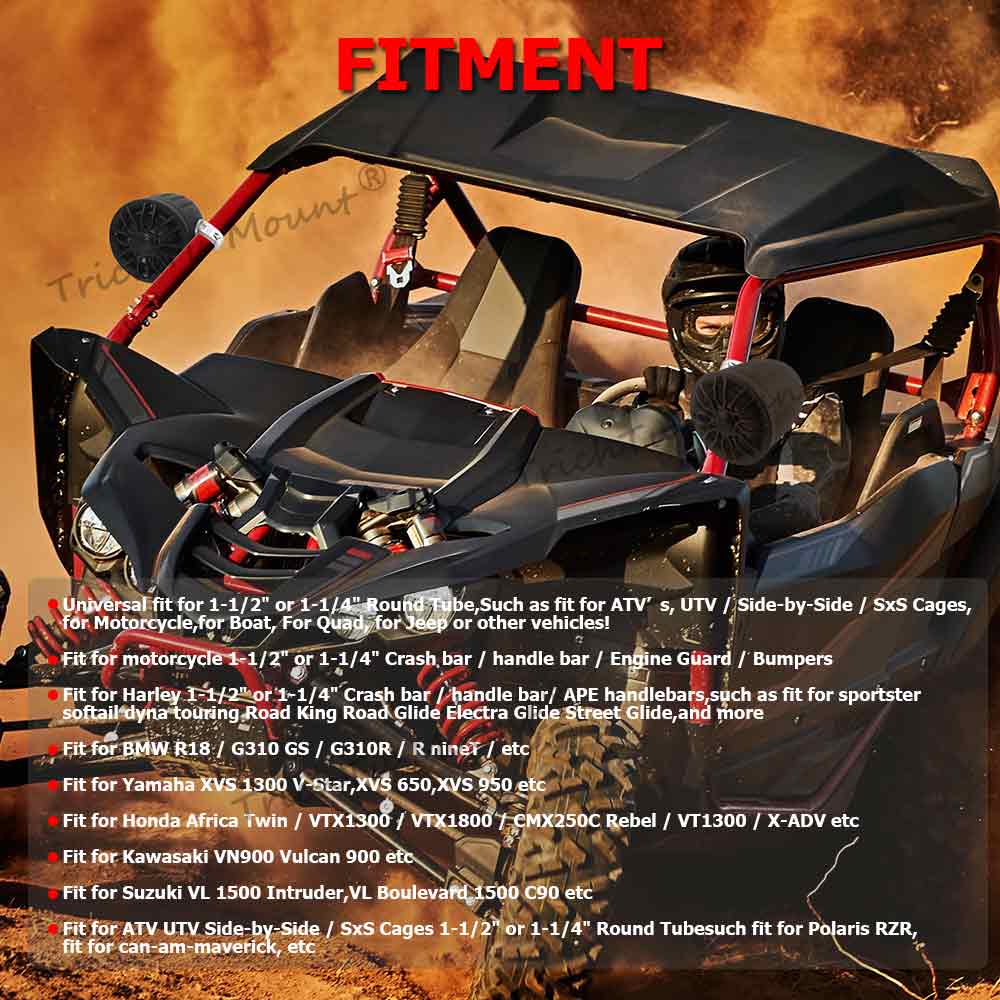

Fitment:

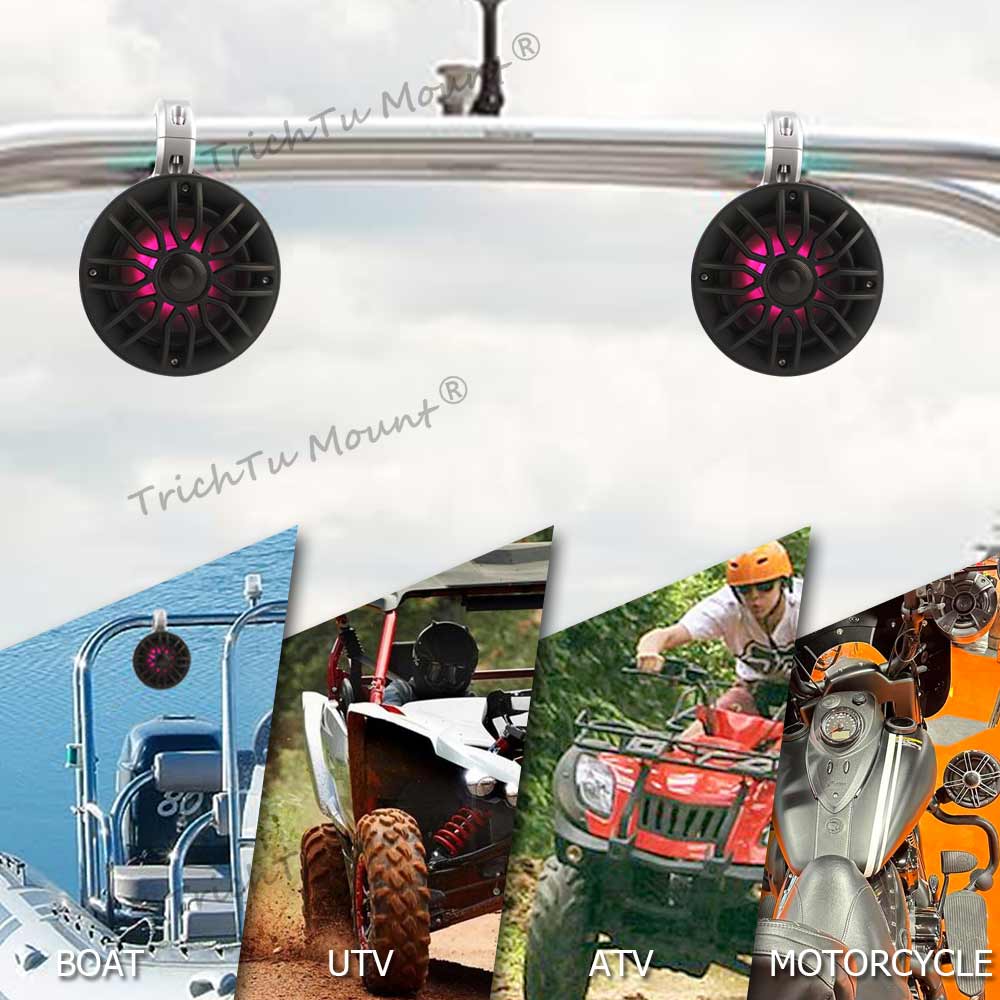

Universal fit for 1-1/2" or 1-1/4" Round Tube,Such as fit for ATV’s, UTV / Side-by-Side / SxS Cages,for Motorcycle,for Boat, For Quad, for Jeep or other vehicles!
Fit for motorcycle 1-1/2" or 1-1/4" Crash bar / handle bar / Engine Guard / Bumpers
Fit for Harley 1-1/2" or 1-1/4" Crash bar / handle bar/ APE handlebars,such as fit for sportster softail dyna touring Road King Road Glide Electra Glide Street Glide,and more
Fit for BMW R18 / G310 GS / G310R / R nineT / etc
Fit for Yamaha XVS 1300 V-Star,XVS 650,XVS 950 etc
Fit for Honda Africa Twin / VTX1300 / VTX1800 / CMX250C Rebel / VT1300 / X-ADV etc
Fit for Kawasaki VN900 Vulcan 900 etc
Fit for Suzuki VL 1500 Intruder,VL Boulevard 1500 C90 etc
Fit for ATV UTV Side-by-Side / SxS Cages 1-1/2" or 1-1/4" Round Tube
such fit for Polaris RZR,fit for can-am-maverick-x3 etc

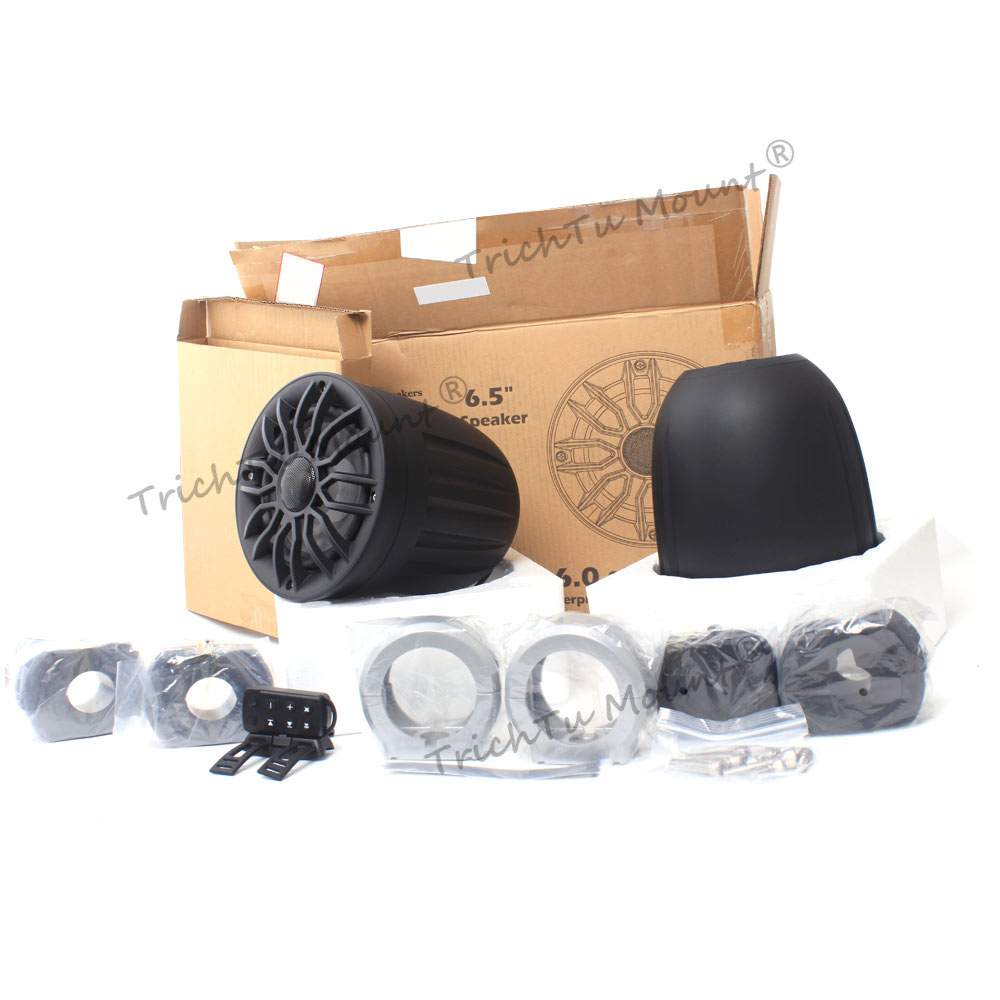

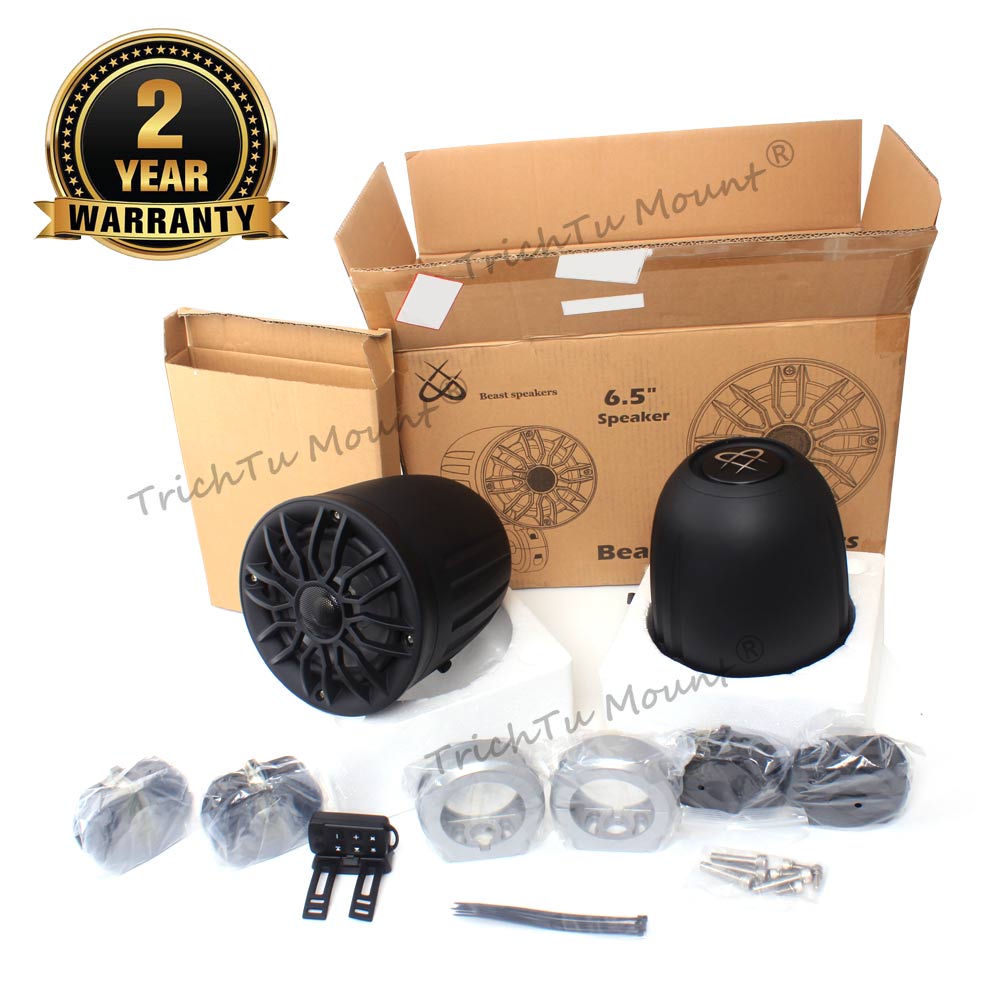

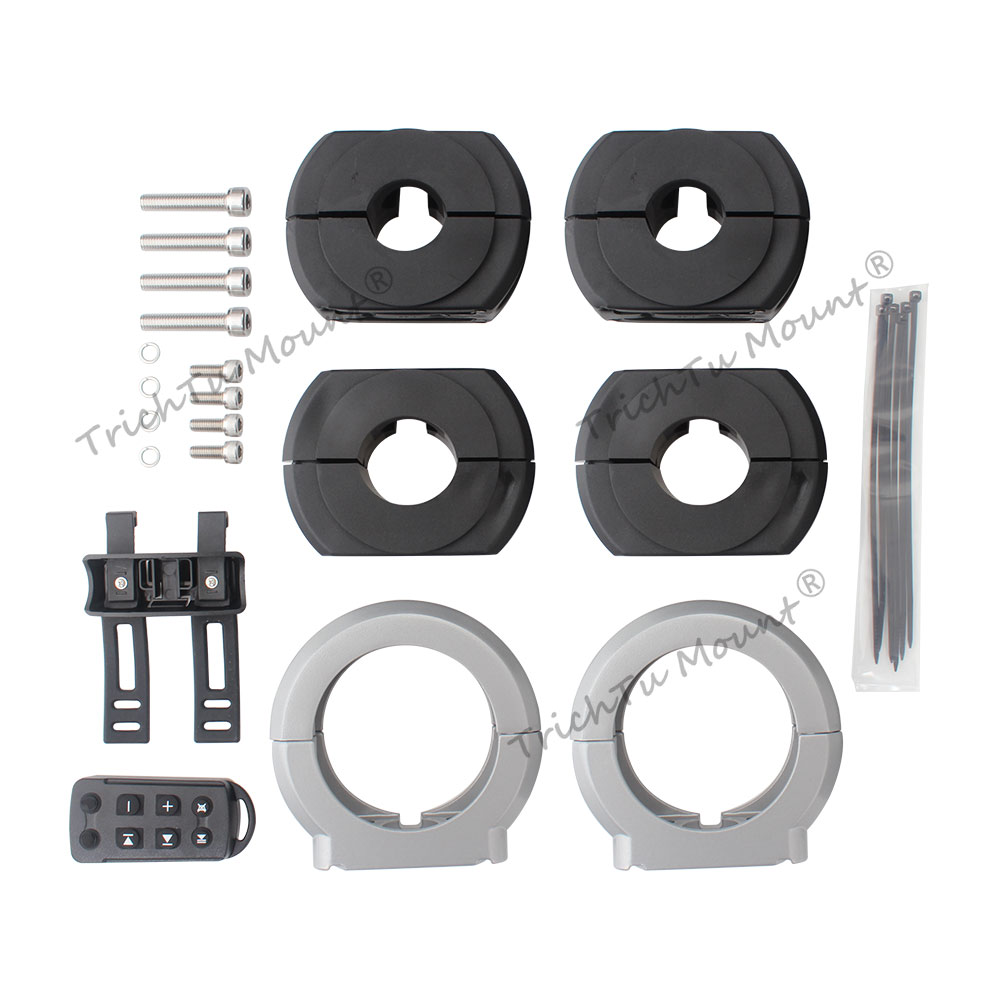

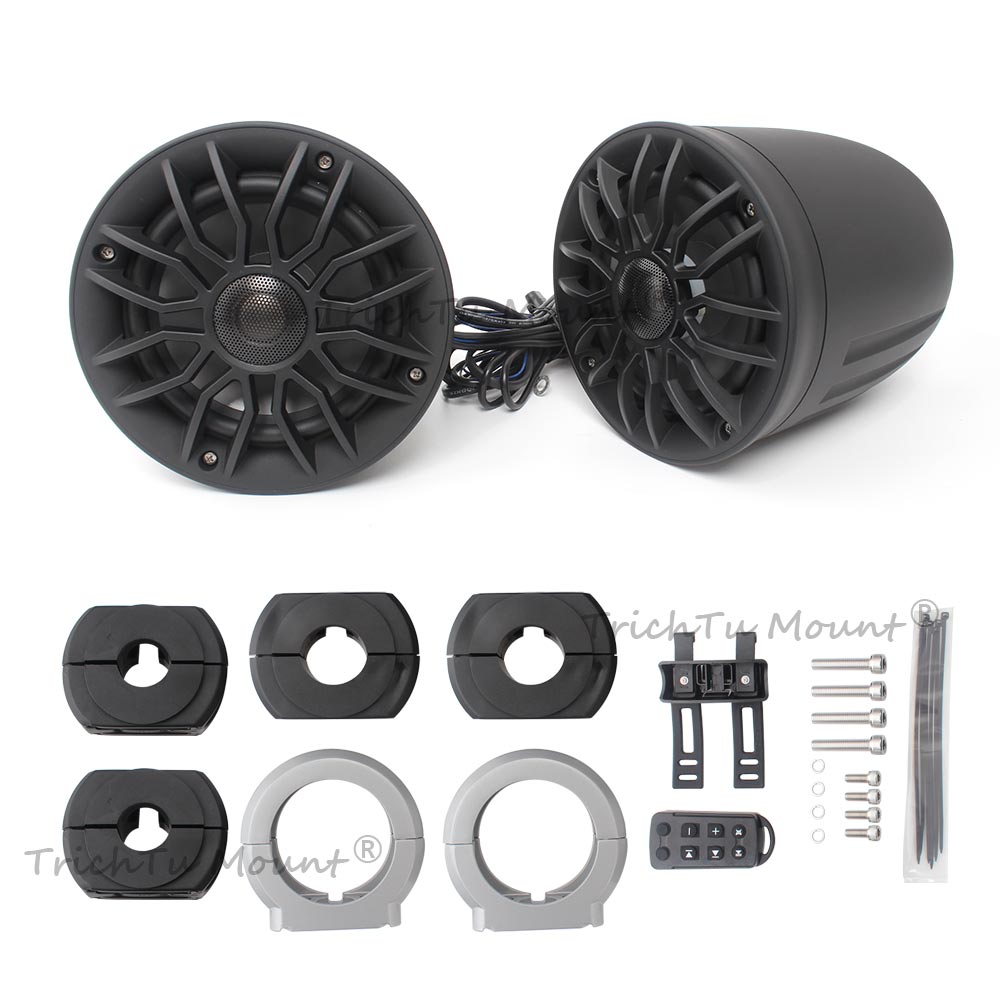

Package Included :
2 x Audiophile Grade Speaker assembly(with Speaker Wire)
1 x Wireless remote control
1 x Wireless remote control base
2 x Aluminum alloy metal clamp housing
2 x 1.25-inch rubber inner clamps
2 x 1.5-inch rubber inner clamps
4 x M8 bolts
4 x M6 bolts
4 x Screw Spacer
Note:
Instructions for use and precautions:
1、Before installation, please read the previous instructions carefully, according to the steps to install the speaker. Every screw
To lock tight, to avoid driving in the process of loosening fall off and cause accidents.
2、The positive red wire connector of the speaker is connected to the positive pole of the motorcycle's power supply, and the negative black wire connector of the speaker is connected to the negative pole of the motorcycle's power supply.
Connect the positive red wire connector of the speaker to the positive pole of the motorcycle's power supply, and the negative black wire connector of the speaker to the negative pole of the motorcycle's power supply: remember not to connect the wrong one, or else it will burn out the speaker's main board circuit.
3、ACC blue wire connector needs to be connected to the motorcycle's start switch line. When the motorcycle start power
When the motorcycle starts the power supply, the speaker will be energized and work: after the motorcycle turns off the power supply, the speaker will be delayed about 1 minute
The speaker will power off after a delay of about 1 minute after the motorcycle is turned off.
4、 the normal working voltage of the speaker is 12V~14.4V; please use it correctly according to the specified voltage to avoid burning the main board of the speaker.
Bad speaker motherboard.
5、After the speaker is powered on, the default setting for Blueteeth mode
a. Insert a USB disk into the USB line, the speaker automatically switches to the USB playback mode. b. When the speaker is powered on, the USB disk is inserted into the USB line.
b. There is a USB disk on the USB line when the speaker is powered on, then it will automatically switch to the USB playback mode.
c. In USB playback mode, press the Blue-teeth mode button on the remote control to switch to Blue-teeth playback mode.
6、Cell phone and Blueteeth connection is successful, hear "hua hua" sound.
7, TWS stereo pairing instructions: this mode only supports the use of Blueteeth mode
