Feature:
1. The valve body is made of aluminum alloy/brass, anti-corrosion, durable, gasket of solenoid valve is equipped with heat resistance grade B, sealing is made of butyl cyanide, which ensures great-leakage proof effect.
2. Direct operated type normally closed 2-way solenoid valve, quick direction changing and high sensitivity.
3. DC 12V 1/8" (1/4") quick connect solenoid valve. Light and compact structure.
4. Keep constant current steady flow as well as preventing the dry burning and monitoring the flow.
5. Normally Closed. Open when current through, closed when no current through.

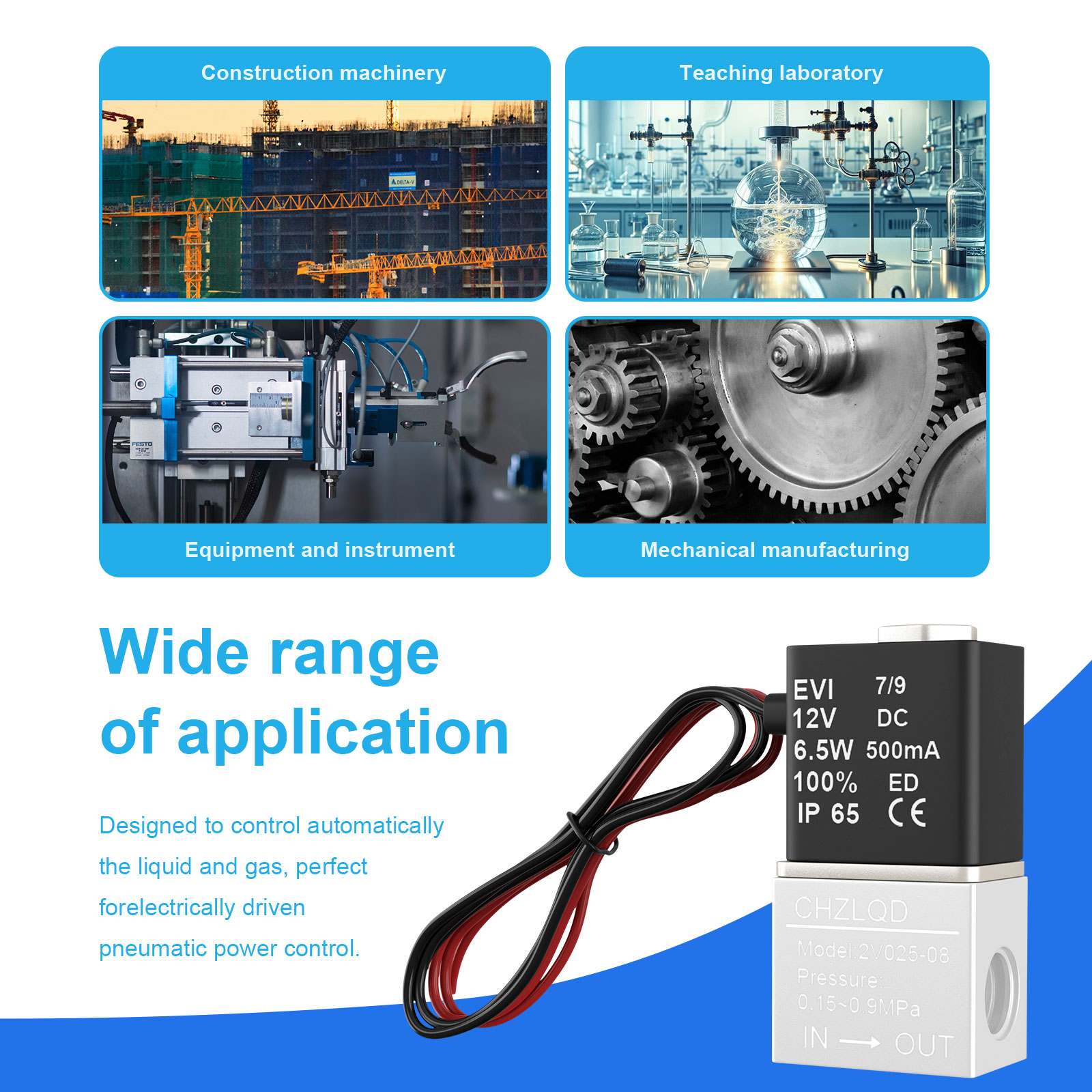

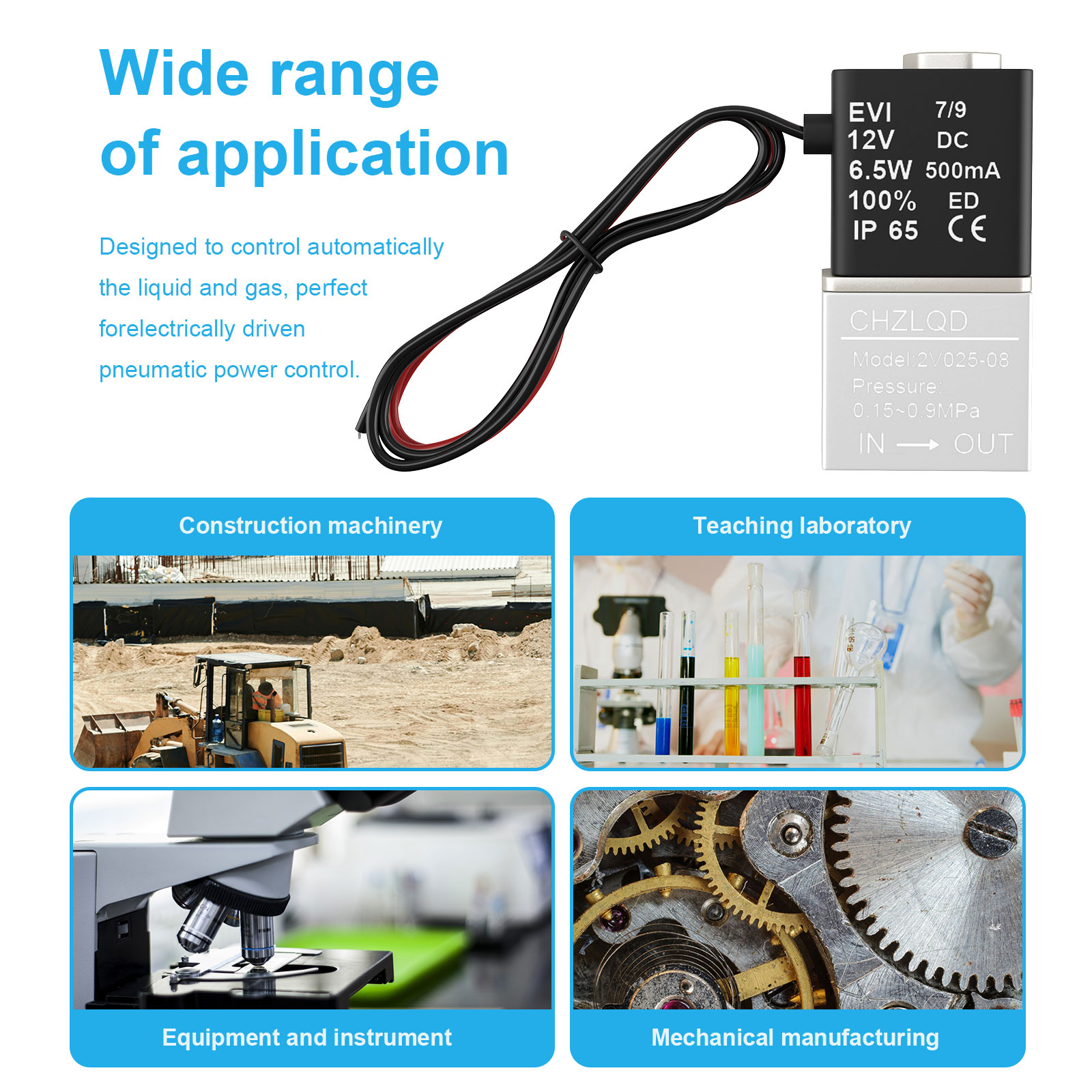

6. Designed to control automatically the liquid and gas, perfect for electrically driven pneumatic power control.
7. Fine workmanship and good performance. Easy to use. And long service life.
8. Suitable for liquid, water, oil, intelligent drinking fountains, water heaters, straight drinking machines, steam engines, air conditioning, refrigeration etc.
Specification:
Valve Type: Normally Closed / NC
Type: 2 way 2 positions
Body Material: Anodized Aluminum
Seal Material: NBR (Buna N)
Armature Tube Material: Brass
Plunger & Spring Material: Stainless Steel
Coil Voltage: 12V DC
Coil Power: 6.5W
Operating Temperature: -5 to 80 °C
Flow Rate: 0.23Cv (Fluid Flow), 22 SCFM at 100 PSI (Air Flow)
Service Media: Air, Gas, Liquid, Water
Flow Model: Uni-Directional
Coil Class: F-Class
Waterproof Level: IP65
Flow Aperture: 2.5"
Operation Model: Direct Acting

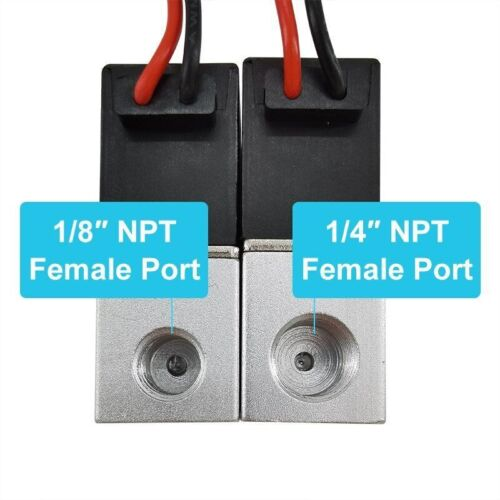

Port Size:
1/4" NPT Female Port
1/8" NPT Female Port
Operating Pressure: 1.0MPa (air, gas)
Max. Compressive Strength: 1.2MPa
Response Time: Less than 50 ms
Operating Pressure: 0-0.8 (can be operated at 0 PSI (vacuum))
Response Time: Less than 20 ms
Coil Duty: 100% ED (Continuous Duty)
Operating Pressure: Vacuum to 115 PSI
Voltage Tolerances: DC: +10% –5% ; AC: +10% -15%
Electrical Connection: Grommet 12" Lead Wire

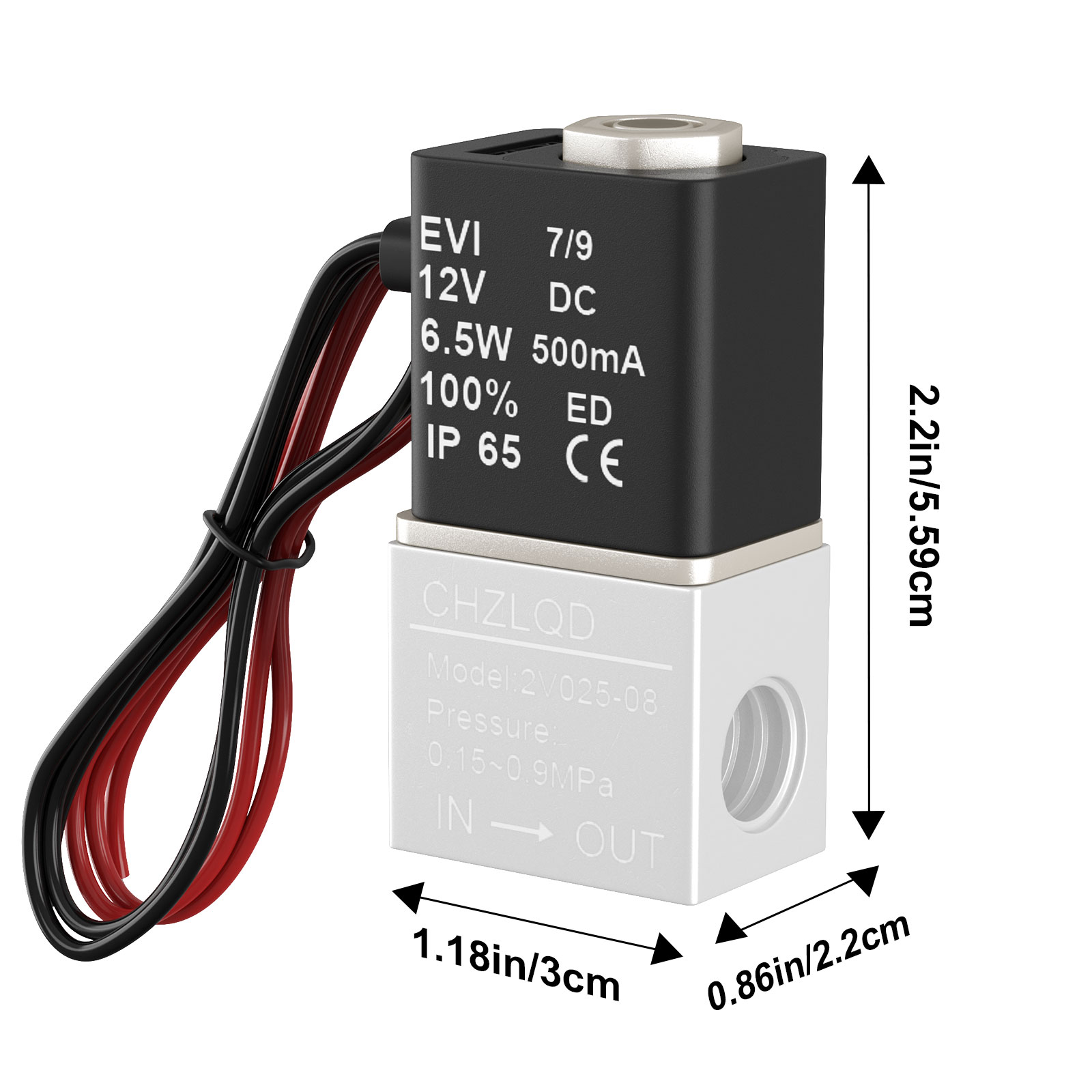

Size: approx. 60*29*20mm
Note:
Please allow 1-5mm errors due to manual measurement.
Item color displayed in photos may be showing slightly different on your computer monitor since monitors are not calibrated same.
Package included:
1 x Solenoid Valve
