Kindly note
1) You must use a 5V DC power supply to power it, do not use higher than 6V or you can destroy the entire strip.
2) LED strip is made by 50cm FPCB, so there is a solder point between each 50cm on strip.In fact, all the 5V~24V LED strips on the market are manufactured in half-meter lengths.
Feature:

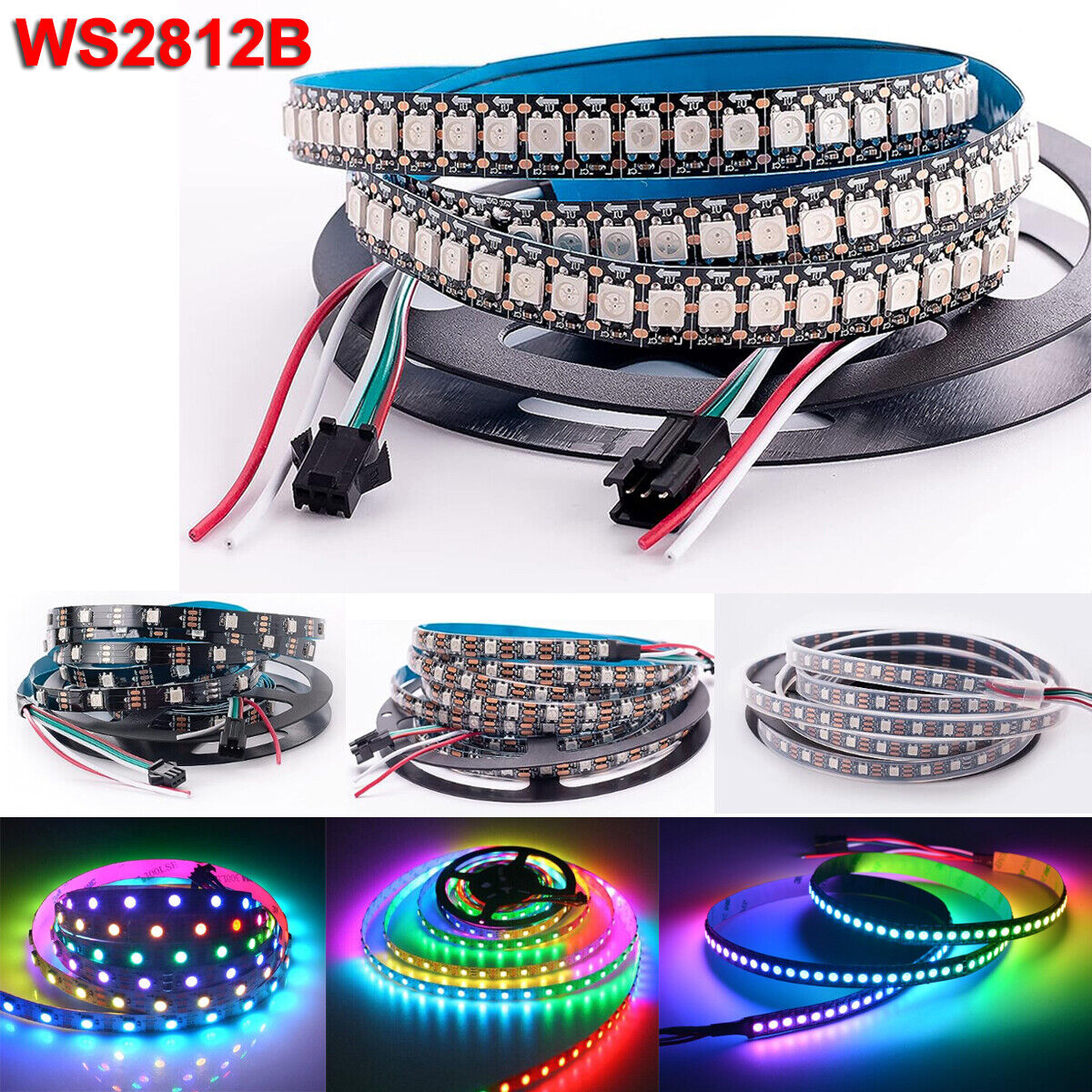

【Individually addressable LED】WS2812B RGB 5050 LED. Each pixel can have its own color and brightness. You can control them individually and set them to any color or animation you want. 256 gray levels adjustable and 16777216 color full color display.
Compatible with Arduino, Raspberry Pi, Teensy, T1000S,K1000C etc programmable controllers. Support SP105E SP108E SP110E app controllers, SP106E SP107E music controllers, SP501E and MHCTRWF5V smart WiFi Controllers. (Controller and power supply is not included. )
【Great for DIY】 Each LED can be cut freely along the cutting line. self-adhesive tape makes it easy to install. Flexible design, you can bend it to any shape you want. 3pin JST-SM connectors and separate power/ground wires on both ends for easy hooking up and injecting power in case of voltage drop.
【Wide Application】 It can be used to make TV or monitor backlight, under cabinet light, under bed light, night light and led screen, led wall, advertising board and widely applied to hotel, KTV, bars, wedding party lighting, home and car decoration and so on.
Details:
Light source: 5050 RGB LED
IC Model: WS2812B ( Built-in WS2811 IC )
Led Qty: 30 or 60 or 144LED per meter (For you choice)
Wave length (NM): R/630nm; G/520nm; B/470nm
Gray level: 256 levels
Color: full color 24-bit (8bit each channel)
Beam angle: 120°
Working Voltage: DC 5V
Max Current: 4.8A
Power: 24W/roll, 0.2W/LED
Waterproof: Not Waterproof, IP65 Waterproof in silicone coated, IP67 Waterproof in silicone tube
FPCB board color: Black or White
Width: 10mm, 12mm
Life span: 50000hrs
Package:
1x WS2812B LED strip ONLY (Power supply and controller are not included)
