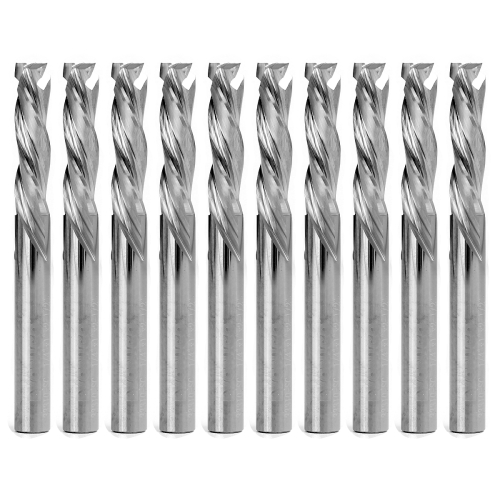

1/4" Dia. 3 Flute Compression Cut Spiral End Mill CNC Router Bit (10 Pack) - 1/4" Shank - Yonico 33310-SC-10PK
Click images below to enlarge
| Brand: Yonico | Brand New |
| Item#: 33310-SC-10PK | Ships Fast |
Best for achieving a smooth finish on laminate or veneer finish applications.• Cutting Diameter: 1/4" • Cutting Height: 1" • Shank Diameter: 1/4" • Overall Length: 2-1/2" • Flutes: 3 Compression bits cut down from the top of the stock and up from the bott
| Number of Bits | |
| Shank Diameter | 1/4" |
| Radius | |
| Degrees | |
| Cutting Diameter | 1/4" |
| Cutting Depth | |
| Cutting Length | 1" |
| Largest Diameter | |
| Overall Length | 2-1/2" |
| Number of Flutes | 3 |
| Bit Construction | Solid Carbide |
| Design | |
| Application | |
| Coating | |
| Flute Angle | 27° |
| Mortising Height | |
| Minimum Stock Thickness | |
| Maximum Stock Thickness | |
| Bearing Height | |
| Bearing Inner Diameter | |
| Bearing Outer Diameter |
Description
When working with any veneer finished material in your CNC machine, you need a compression spiral end mill to make full depth cut. These bits are designed to leave clean edges on the top and bottom faces of any material. The compression bit's unique design pulls chips upward at the bottom of the stock and downward at the top face, producing chip-free surfaces that are perfect for cabinet and furniture parts. Compression cut spiral end mills are excellent for melamine, plywood, MDF and solid wood.
We are the only authorized Yonico distributor on eBay. While you might see other "yellow" router bits being sold, the Yonico brand is manufactured in their american owned exclusive factory and does not produce products for any other brand.
Free shipping to anywhere in the continental USA. Most orders go out the next business day. That means that your order will be at your door in no time.
We ship to nearly every location on earth at very competitive rates and your package also gets to you quick.
We have been a superior seller for over a decade. Our 40,000+ reviews give you the assurance that our quality and service is right at the top.
