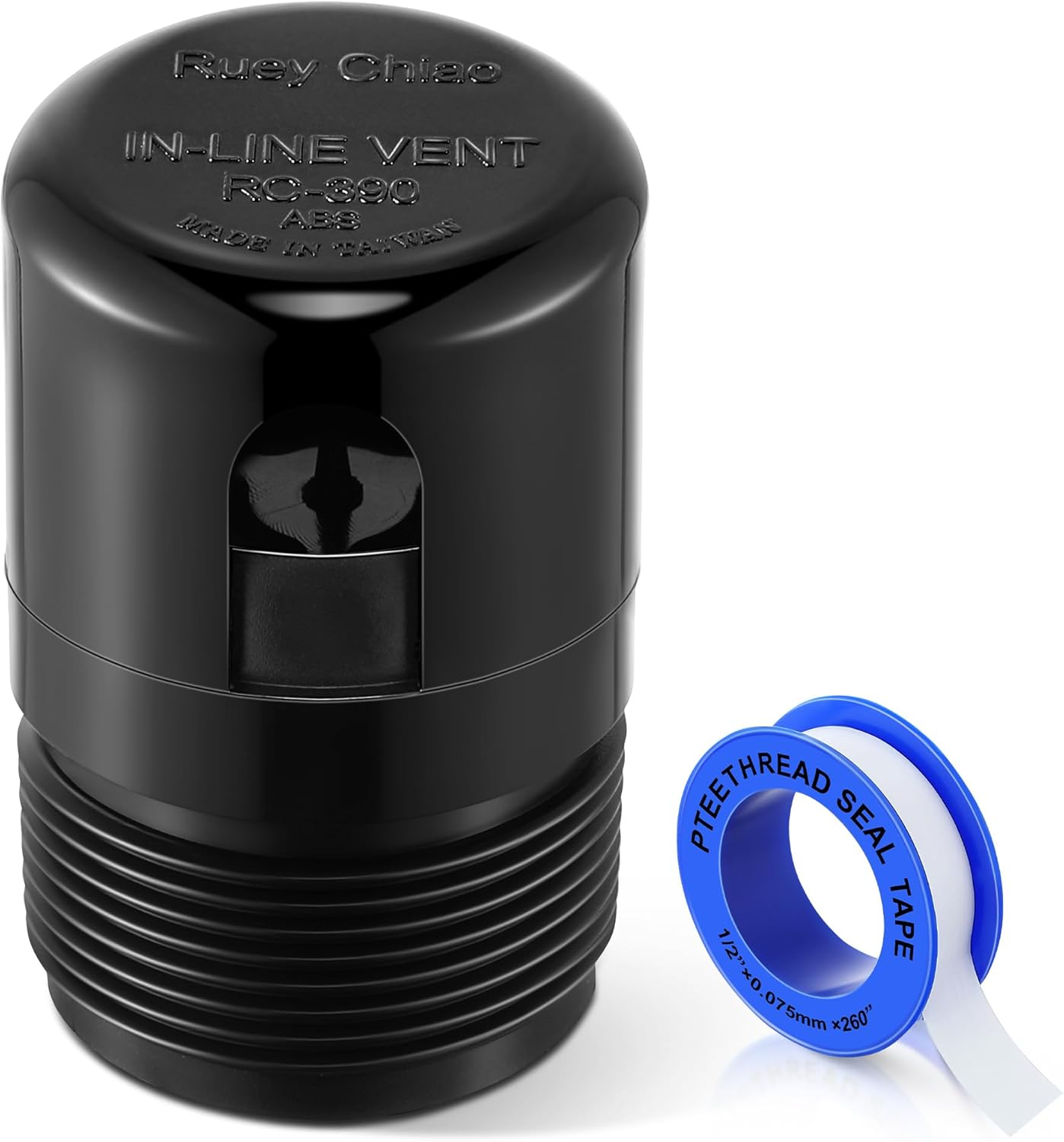

1-1/2 Inch NPT ABS in Line Vent, Diaphragm RV Air Admittance Valve for Under Sink Vent with PTFE Thread Seal Tape, Drain Vent Valve, Easy to Install (1 Pcs)
Description
| Valve Type | Air Control Valve |
| Part Number | SO--2294 |
| Item dimensions L x W x H | 2.68 x 1.97 x 1.97 inches |
| Inlet Connection Type | National Pipe Tapered |
| Item Package Quantity | 1 |
| Color | Black |
| Material | Acrylonitrile Butadiene Styrene (ABS) |
| Country of Origin | China |
| Item Weight | 1.12 ounces |
| Number of Ports | 2 |
| Inlet Connection Size | 1.5 Inches |
| Item model number | SO--2294 |
| Product Dimensions | 2.68 x 1.97 x 1.97 inches |
| Included Components | 1-1/2 Inch NPT ABS In Line Vent |
| Brand | Unbranded |
| Shipping | Fast shipping USA |
- 1-1/2 Inch NPT ABS In Line Vent: This 1-1/2'' NPT ABS in line vent can replace any secondary plumbing vent which protecting the traps of kitchen sinks, bathroom basins, tubs, showers or washing machines; It helps prevent sewer gas from entering your home, no more suffering from the smelly sewer gas caused by garbage disposal
- Durable ABS Construction: Made of durable and strong ABS material, it is durable and able to withstand stress without cracking, also has good resistance to various chemicals, including acids, alkalis, and oils, though it can be affected by strong liquid, which can use for a long time
- How it Works: Air admittance valves are operated by gravity; When water and waste move down a drain line, it creates negative air pressure in the pipe; This negative pressure lifts the sealing washer and lets air in, which allows the waste to drain away freely; When the negative pressure ceases, the sealing washer falls back in place; Earlier versions of this device were spring operated; Such units are still available but are unreliable and don't meet code in most areas
- Easy to Install: The sealing disc of the vent must be at least 6 inches above the top of the trap arm; To ensure that this requirement is met, you can extend the tube using a sliding joint; An angle installation of no more than 15 inches from the vertical direction is acceptable; After determining the placement, you can install the Air Admittance Valve on the PVC drain line
- Warm Tips: The vents must be easily inspected or replaced; If mounted inside a wall, a simple access panel must be provided; Important note: This item is only applied as an auxiliary ventilation device; Every drainage system that uses vents must have a main vent to the atmosphere, which should be located to facilitate the ventilation of the toilet bowl
1-1/2 Inch NPT ABS In Line Vent, Convenient and Practical to Use
Feature & Function:
Universal to applied on kitchen sink, bathroom basin, tubs, etc..
Helps prevent sewer gas from entering your home, no more suffering from the smelly sewer gas caused by garbage disposal.
With excellent sealing, corrosion resistance, not easy to fade, break, aging resistance
Easy to install without using a long time
Tips before installation
Two units protected individually by vents can be drained through a 1-1/2 "common drain pipe.
The minimum drainage size for three or more units must be 2 "and at least one pipe size larger than the maximum connected trap or unit drain.
Vents can be applied as public vents or continuous vents in wet ventilation systems, provided that no more than five combined drainage units are loaded on any one vent and that installation and drainage pipe sizes comply with applicable public and wet ventilation standards.
Specification:
Material: ABS Material
Warm tip:
Please read the description carefully before purchase.
Please contact us if you have any problems.
